Z70049 Painel de Exibição de 7 Polegadas 1024*600 Módulo LCD Interface LVDS Duplo IC

  • Tamanho: 7 polegadas

  • Resolução: 1024*600

  • Área ativa: 154,21*85,92mm

  • Interface: MIPI

  • Ângulo de visão: IPS

  • Painel de toque: Suporte CTP/RTP

  • Tipo de Fornecimento: Fábrica/Fabricante

  • Certificação: ISO9001, IATF16949, ROHS, REACH

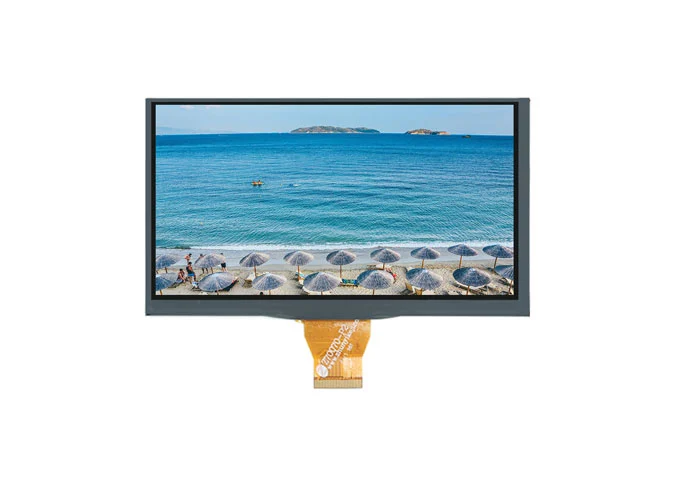

lvds lcd panel
lvds lcd panel

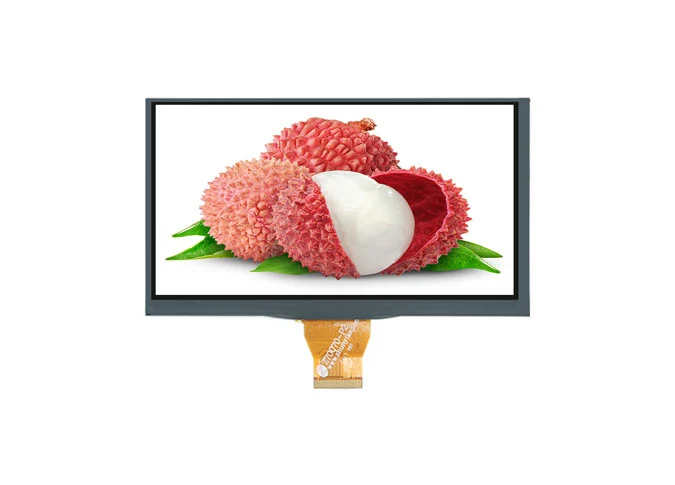

7 inch lcd china wholesale

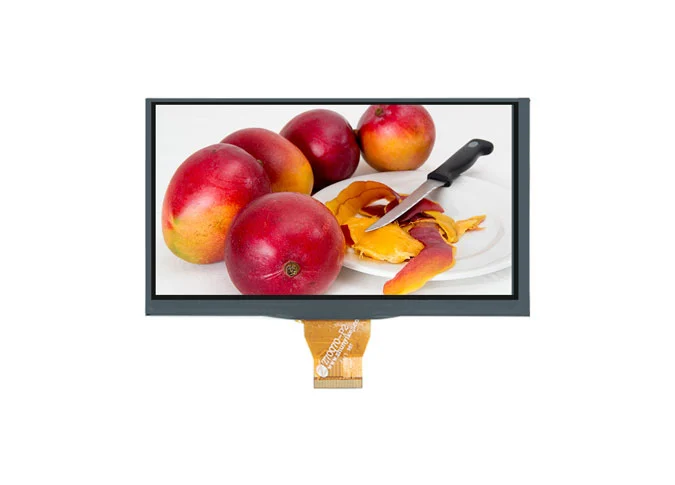

lvds panel

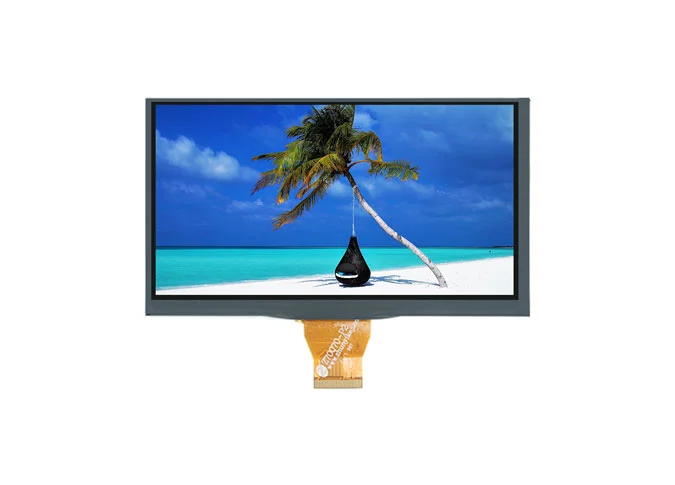

lvds display panel

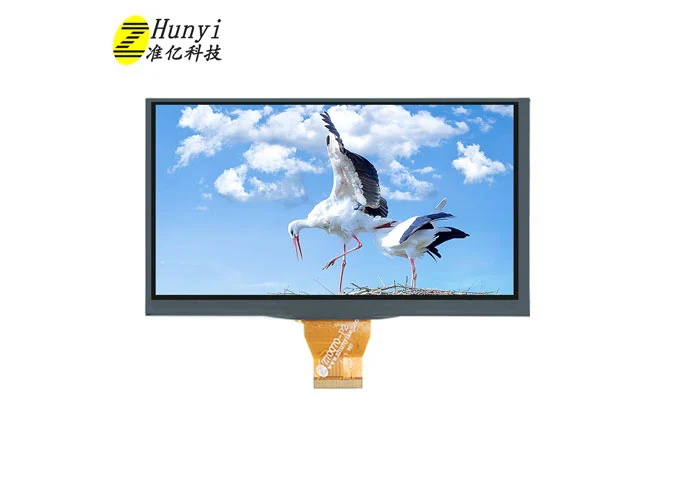

lvds lcd display

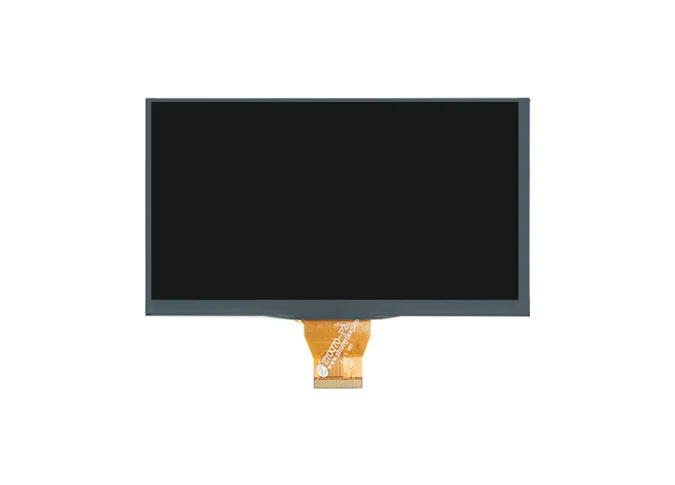

lvds lcd display wholesale

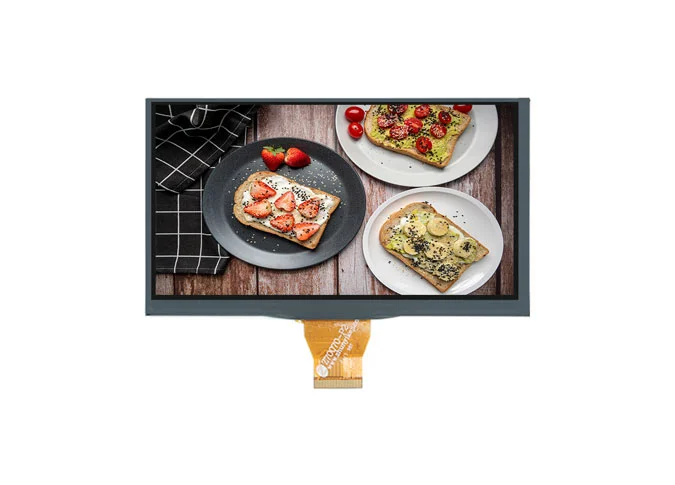

lvds panel wholesale

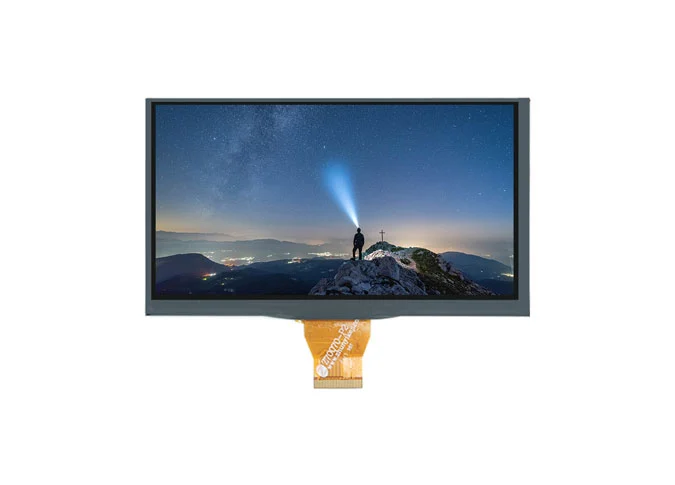

lvds lcd panel wholesale

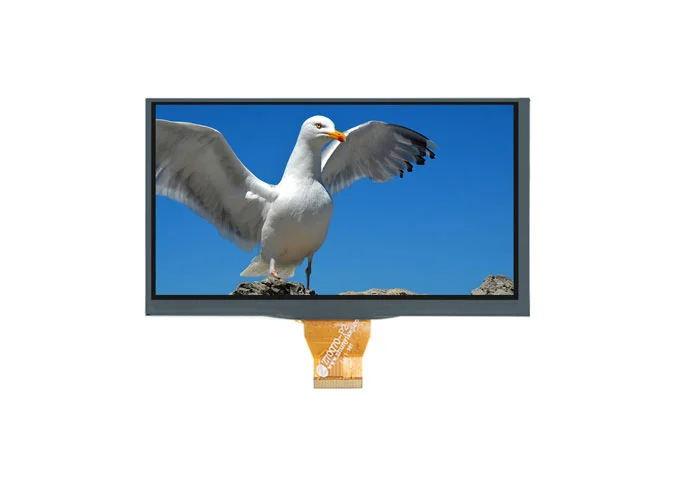

7 inch lcd

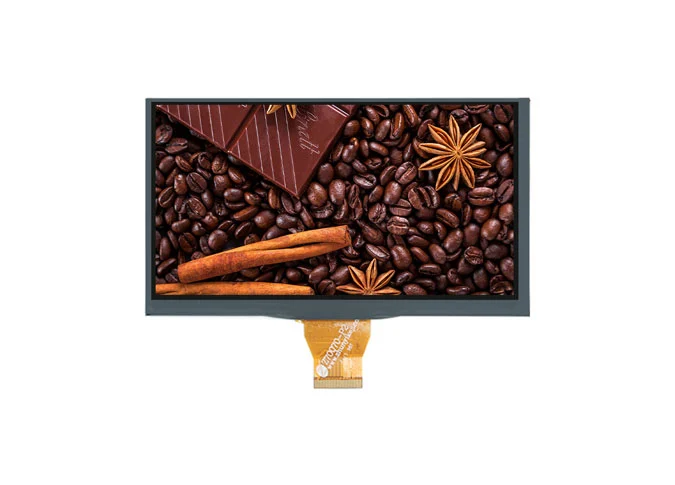

7 inch lcd module

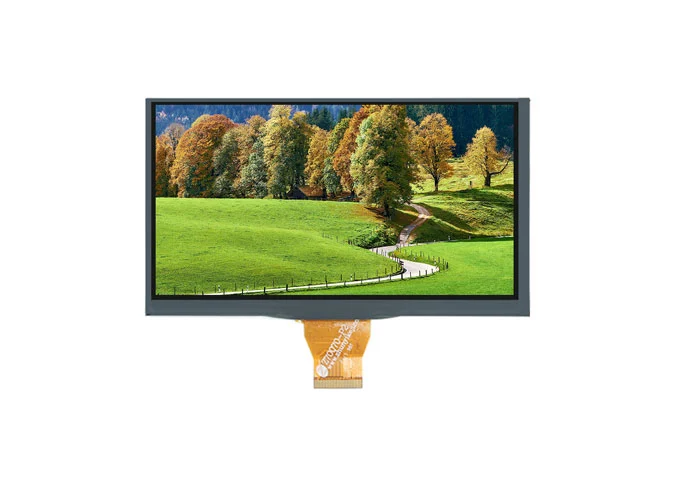

7 inch lcd china

Visão geral do painel de exibição de 7 polegadas Z70049 1024*600 Módulo LCD Interface LVDS Duplo IC

1

Z70049 é uma tela de cristal líquido (LCD) de transistor de película fina de matriz ativa colorida (TFT) com resolução de 1024*600. A técnica IPS (In-plane Switching) faz com que este módulo LCD de 7 "tenha um ângulo de visão mais amplo. EsteMódulo de exibição LCD atacadoÉ built-in EK79007AD-2 driver IC EK73217BCGA. Este módulo a-Si TFT LCD vem com interface MIPI.

2

Se você tem requisitos especiais, como unidade de interface IC, FPC, painel de toque, brilho, cor, luz de fundo, etc, como umFornecedor de display LCD personalizado, Nós também podemos personalizar para você.

3

NossoFábrica de módulo de exibiçãoRealizar o sistema padrão de qualidade ISO 9001: 2015 e IATF16949: 2016 estritamente, todo o display LCD passou ROHS, Certificação REACH.

4

A tela LCD horizontal de 7 polegadas é amplamente utilizada em médicos, campainha visual, venda automática, mecanismo de aprendizagem, ventilador, osciloscópio, cozinha, eletrodomésticos, scanner QRcode, casa inteligente, indústria, portátil, ao ar livre, HMI, E-bike, veículo, projetor, impressora 3D, dispositivo de áudio, robô, escala elétrica, Navegação, publicidade do elevador, etc.

Specifications of 7 Inch Display Panel 1024*600 LCD Module LVDS Interface Double IC


Item

Main Display

Unit

Number of Pixels

1024 * RGB * 600

Pixel

LCM Outline Dimension

163.70 (W) * 96.9 (H) * 2.59 (T)

mm

LCD Outline Dimension

162.20 (W) * 95.70 (H) * 1.0 (T)

mm

Active Area

154.21 (W) * 85.92 (H)

mm

Pixel Pitch

0.0502 (W) * 0.1432 (H)

mm

Display Mode

Normally Black


Pixel Arrangement

RGB vertical stripe


Viewing Direction

Free


Color Configuration

RGB


LCD Transmittance

Typ: 5.0%; Min: 4.8%


LCD Contrast Ratio

Typ: 800


FPC Version

Z70049-P40 V1


Interface

LVDS


Operating Temperature

-20℃ ~ 70℃


Storage Temperature

-30℃ ~ 80℃


Backlight arrangement

LED / 3 series 8 parallel


Luminance

-


Weight

-



LCM-Pin Assignments of 7 Inch Display Panel 1024*600 LCD Module LVDS Interface Double IC


PIN NO.

PIN DEF.

FUNCTION DESC.

1

VCOM

Common Voltage (3.15V)

2-3

VDD

POWER SUPPLY (3.3V)

4

NC

NC

5

RES

Reset pin (3.3V)

6

STBYB

Standby mode, normally pull high

STBYB= "1", normal operation

STBYB= "0", timing control, source driver will turn off, all output are

high-Z

7

GND

Ground

8

D0-N

MIPI-DSI Data differential signal input pins. (Data lane 0)

9

D0-P

MIPI-DSI Data differential signal input pins. (Data lane 0)

10

GND

Ground

11

D1-N

MIPI-DSI Data differential signal input pins. (Data lane 1)

12

D1-P

MIPI-DSI Data differential signal input pins. (Data lane 1)

13

GND

Ground

14

D2-N

MIPI-DSI Data differential signal input pins. (Data lane 2)

15

D2-P

MIPI-DSI Data differential signal input pins. (Data lane 2)

16

GND

Ground

17

CLK-N

MIPI-DSI CLOCK differential signal input pin

18

CLK-P

MIPI-DSI CLOCK differential signal input pin

19

GND

Ground

20

D3-N

MIPI-DSI Data differential signal input pins. (Data lane 3)

21

D3-P

MIPI-DSI Data differential signal input pins. (Data lane 3)

22

GND

Ground

23-24

NC

NC

25

GND

Ground

26-27

NC

NC

28

HSD

In LVDS interface connected HSD to FPC for pin setting

HSD= "L": 8 bit

HSD= "H": 6 bit

29

AVDD

Power for Analog Circuit (9.6V)

30

GND

Ground

31-32

LED-K

POWER SUPPLY- FOR BACKLIGHT CATHODE

33

L/R

SHLR

34

U/D

UPDN

35

VGL

Gate OFF Voltage (-6V)

36-37

NC

NC

38

VGH

Gate ON Voltage (18V)

39-40

LED-A

POWER SUPPLY+ FOR BACKLIGHT

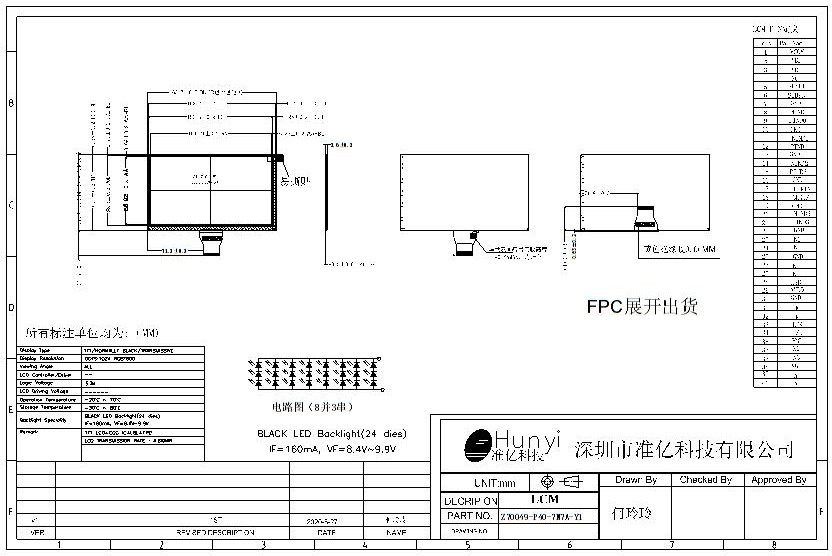

Mechanical Drawing of 7 Inch Display Panel 1024*600 LCD Module LVDS Interface Double IC
