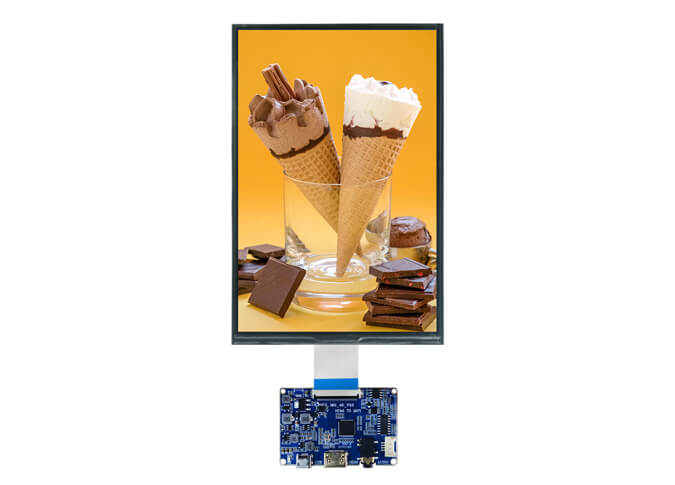

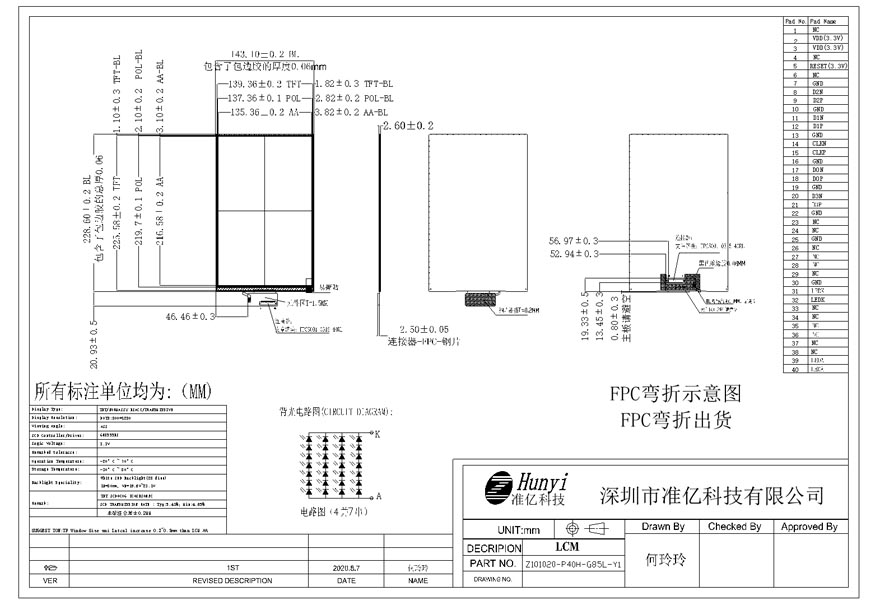

Z101020HD 800*1280 Tela LCD de 7 polegadas com placa de controlador HDMI 300 lênS luminância

1

Display Size (Diagonal)

10.1

inch

2

Display Resolution

800 (H) × RGB × 1280 (V）

pixels

3

Pixel Pitch

56.4 (H) × 169.2 (V）

um

4

LCM Outline Dimension

(Without FPC）

143.10 (W) × 228.60 (H) × 2.6 (T)

mm

5

LCD Outline Dimension

139.36 (W) × 225.80 (H) × 0.8 (T)

mm

6

LCD Active Area

135.36 (W) × 216.58 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

GH8555BL

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.41% Min: 4.65

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

Z101020-P40H V1

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/7 Series 4 Parallel (28 lights in total)

-

19

Luminance

310

nit

20

Weight

0.183

kg

1

NC

No Connection

2-3

VDD

POWER SUPPLY (3.3V）

4

NC

No Connection

5

RESET

LCM RESET PIN (3.3V)

6

NC

No Connection

7

GND

Ground

8

D2N

Negative MIPI differential data input

9

D2P

Positive MIPI differential data input

10

GND

Ground

11

D1N

Negative MIPI differential data input

12

D1P

Positive MIPI differential data input

13

GND

Ground

14

CLKN

Negative MIPI differential CLOCK input

15

CLKP

Positive MIPI differential CLOCK input

16

GND

Ground

17

D0N

Negative MIPI differential data input

18

D0P

Positive MIPI differential data input

19

GND

Ground

20

D3N

Negative MIPI differential data input

21

D3P

Positive MIPI differential data input

22

GND

Ground

23-24

NC

No Connection

25

GND

Ground

26-29

NC

No Connection

30

GND

Ground

32-32

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

33-38

NC

No Connection

39-40

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE
