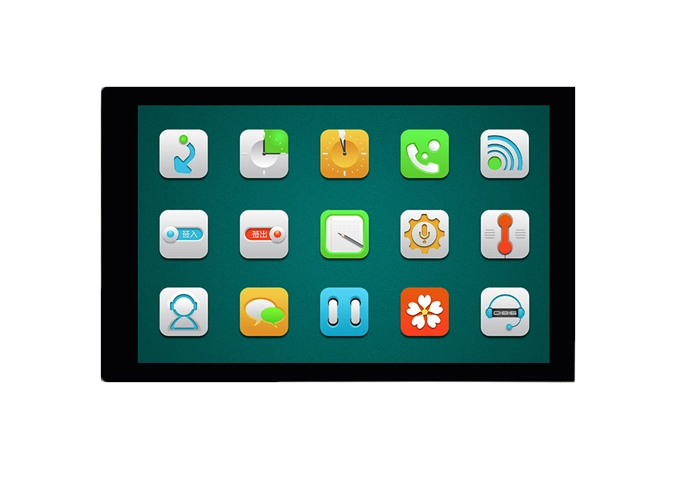

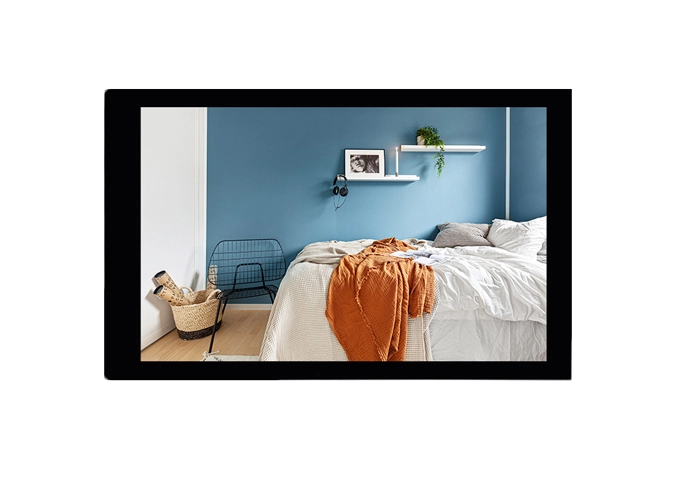

Z80032-ZC 8 polegadas 800*1280 TFT tela de toque MIPI I2C Interface GT911 driver LCD painel capacitivo

1

Display Size (Diagonal)

8.0

inch

2

Display Resolution

800(H） × RGB × 1280（V）

pixels

3

Pixel Pitch

44.85(H）× 134.55（V）

um

4

CTP Outline Dimension

(Without FPC）

137.47 (W) ×198.2 (H) ×4.66 (T)

mm

5

LCD Outline Dimension

111.24 (W) × 180.52 (H) × 0.8 (T)

mm

6

LCD Active Area

107.64（W） ×172.22（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

GH8555BL

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.55%  Min:5.0%

-

13

LCD Contrast Ratio

Typ.: 1500  Min:1200

-

14

FPC Version

Z80008-SPM288/SPM168H V2

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/4 Series 6 Parallel (24 lights in total)

-

19

Luminance

380

nit

20

Weight

0.105

kg

1-3

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

4-7

NC

No Connection

8-10

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

11

GND

Ground

12

NC

No Connection

13

GND

Ground

14

D2P

Positive MIPI differential data input

15

D2N

Negative MIPI differential data input

16

GND

Ground

17

D1P

Positive MIPI differential data input

18

D1N

Negative MIPI differential data input

19

GND

Ground

20

TCP

Positive MIPI differential CLOCK input

21

TCN

Negative MIPI differential CLOCK input

22

GND

Ground

23

D0P

Positive MIPI differential data input

24

D0N

Negative MIPI differential data input

25

GND

Ground

26

D3P

Positive MIPI differential data input

27

D3N

Negative MIPI differential data input

28

GND

Ground

29

LCD_ID1

LCM  ID  PIN

30

LCD_RST

LCM  RESET  PIN

31

LCD_ID2

LCM  ID  PIN

32

IOVCC

I/O  POWER SUPPLY（1.8V）

33-34

LCD_VCC

POWER SUPPLY

35

GND

Ground

36

NC

No Connection

37

GND

Ground

38

NC

No Connection

39

LCD_ID3

LCM  ID  PIN

40

NC

No Connection

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.

1

GND

Ground

2

RESET

TP  Reset  PIN(3.3V)

3

SDA

TP  I2C data (SDA) data input (MOSI)(3.3V)

4

SCL

TP  I2C clock (SCL) clock (SCLK)(3.3V)

5

INT

TP  Interrupt  PIN(3.3V)

6

VDD

TP  POWER SUPPLY(3.3V)
