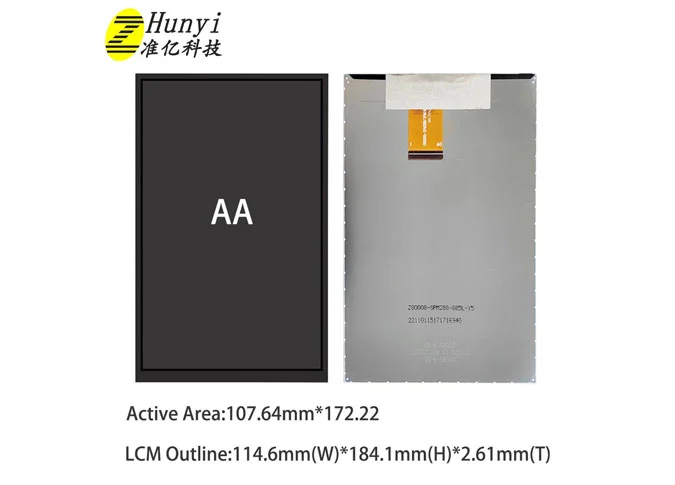

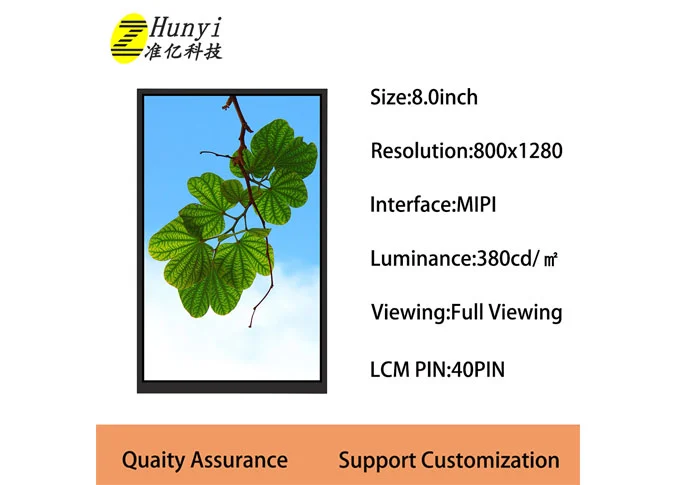

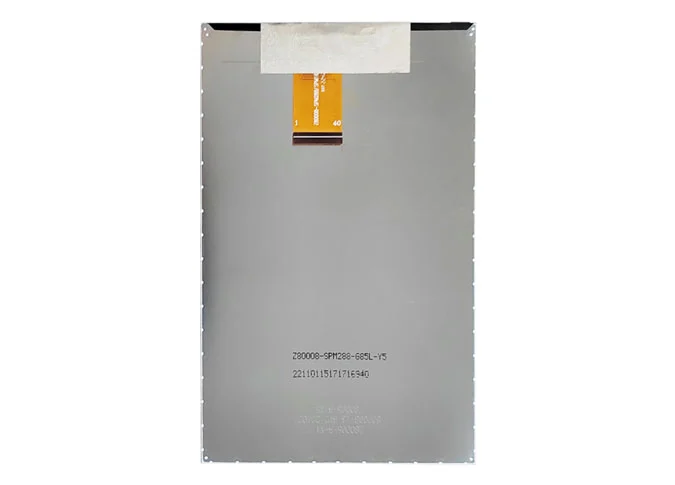

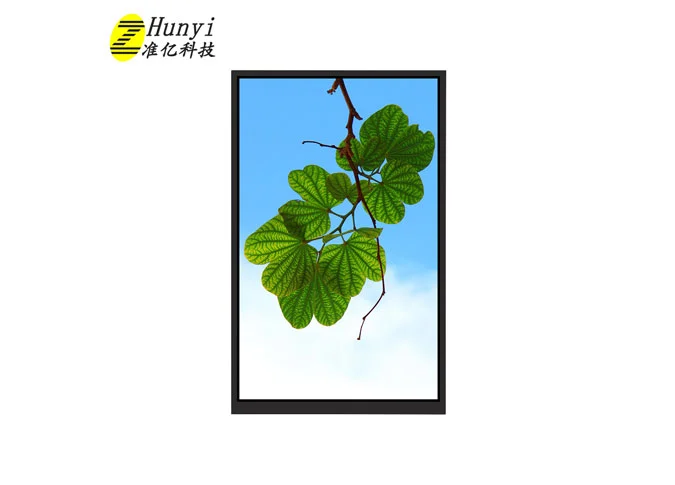

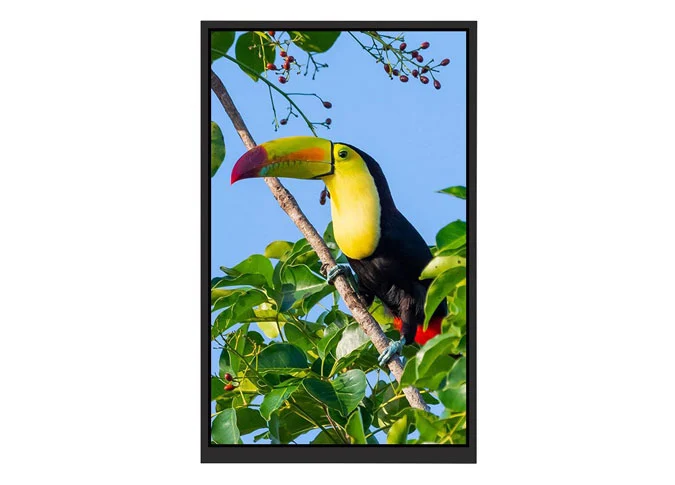

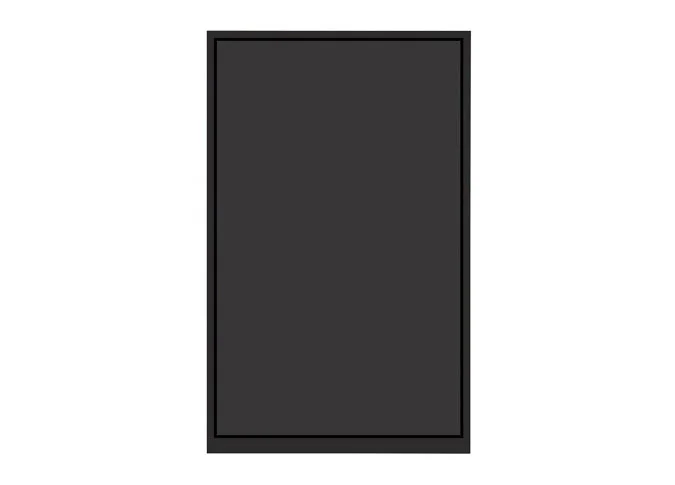

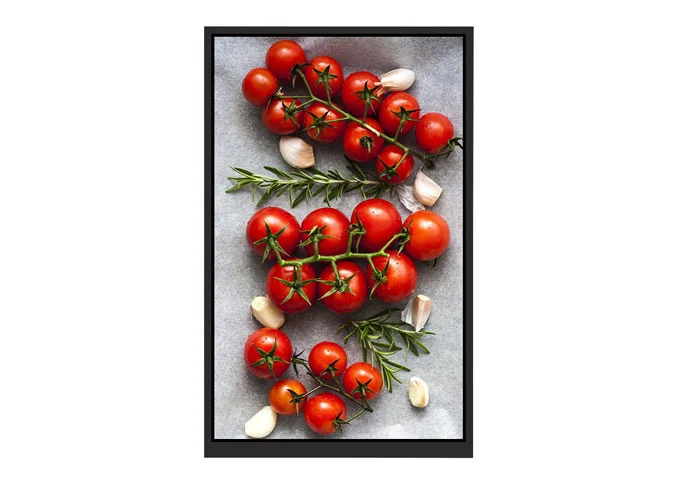

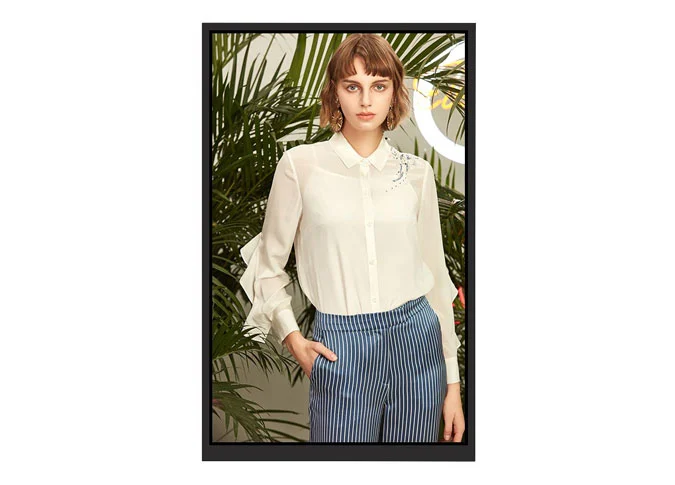

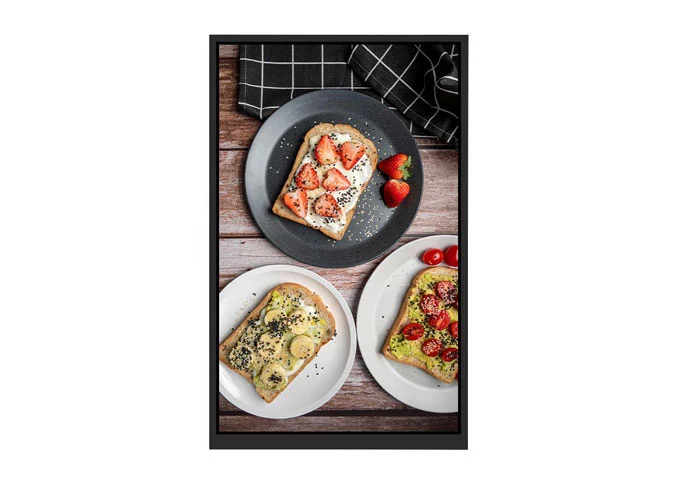

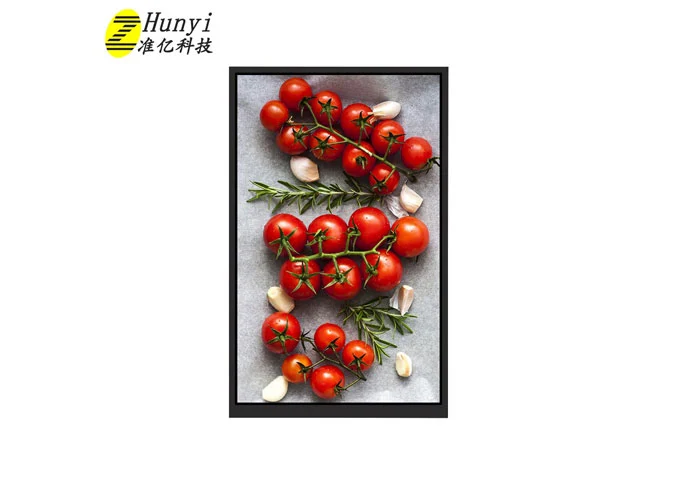

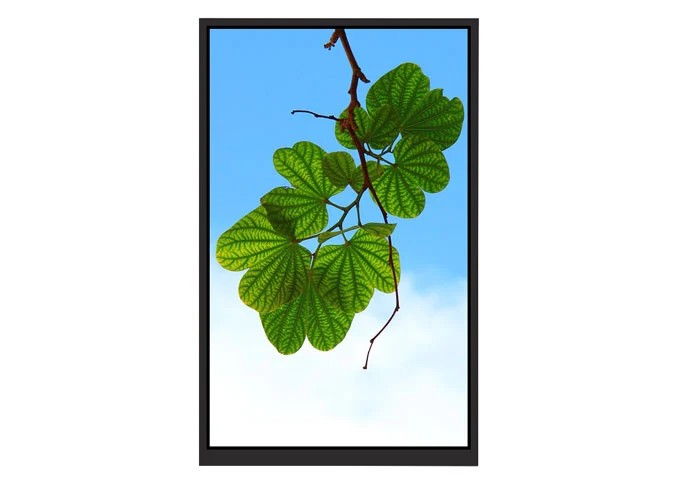

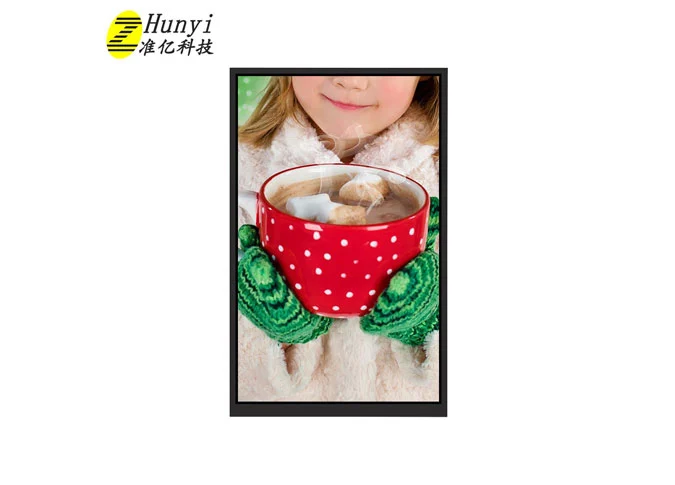

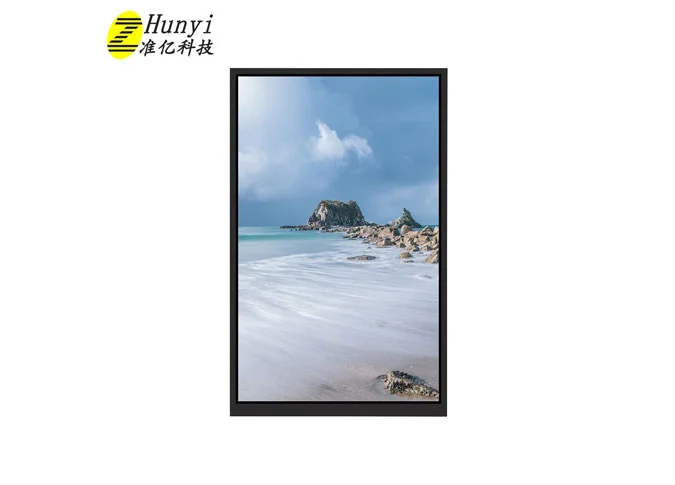

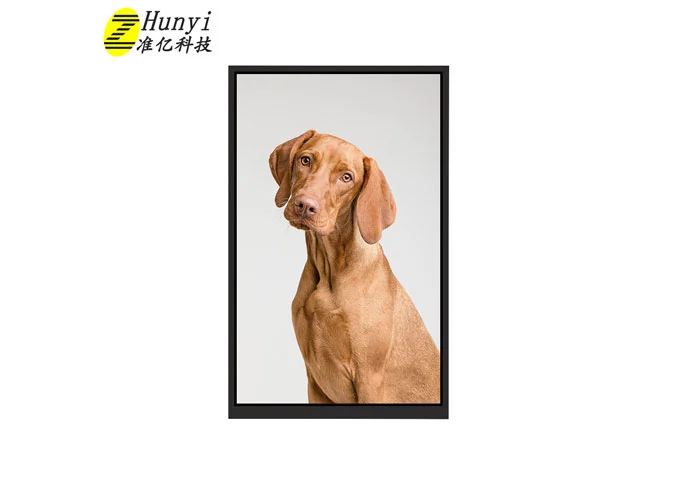

Z80008-SPM288 8 polegadas 800*1280 IPS Módulo LCD Full View Interface MIPI 40PIN

  • Tamanho: 8 polegadas

  • Resolução: 800*1280

  • Área ativa: 107,64*172,72mm

  • Interface: MIPI

  • Ângulo de visão: IPS

  • Brilho: 380 cd/m²

  • Painel de toque: Suporte CTP/RTP

  • Tipo de Fornecimento: Fábrica/Fabricante

  • Certificação: ISO9001,IATF16949,ROHS,REACH

8 inch lcd
8 inch lcd
8 inch lcd panel
8 inch lcd screen
8 inch tft
8 lcd
8 lcd panel
8 lcd screen
8 lcd tft
8 tft
8 tft lcd
8 tft screen
1280x800 ips
1280x800 lcd
1280x800 tft
lcd 1280x800
tft 1280x800
display 1280x800
1280x800 ips display
1280x800 lcd panel
8 inch lcd module
8 inch ips lcd module
8 inch ips lcd
8 inch 8001280 lcd
8 inch 800 1280 lcd module
8 lcd module
8 tft screen

Visão geral da Z80008-SPM288 8 polegadas 800*1280 IPS Módulo LCD Full View Interface MIPI 40PIN

1

Z80008 é um transistor de filme fino de matriz de cor ativa (TFT) display de cristal líquido (LCD) com resolução de 800*1280. A técnica IPS (In-plane Switching) faz com que este módulo LCD de 8 "tenha um ângulo de visão mais amplo. Este display LCD é embutido GH8555BL driver IC. Este a-SiMódulo quadrado TFT LCDVem com interface MIPI, brilho 380cd/m².

2

Se você tem requisitos especiais, como unidade IC, interface, FPC, painel de toque, brilho, cor, luz de fundo, painel de toque, etc, como umFabricante de display LCD personalizado China, Nós também podemos personalizar para você.

3

Como profissionalFábrica de módulo de exibição LCD, Nossa fábrica realiza o sistema padrão de qualidade ISO 9001: 2015 e IATF16949: 2016 estritamente, todo o display LCD passou ROHS, certificação REACH.

4

A tela LCD de 8 polegadas é amplamente utilizada em médicos, campainha visual, venda automática, mecanismo de aprendizagem, ventilador, osciloscópio, cozinha, eletrodomésticos, scanner QRcode, casa inteligente, indústria, portátil, ao ar livre, HMI, E-bike, veículo, projetor, impressora 3D, dispositivo de áudio, robô, escala elétrica, Navegação, publicidade do elevador, etc.

Specifications of 8 Inch 800*1280 IPS LCD Module Full View MIPI Interface 40PIN


No.

Item

Specification

Unit

1

Display Size (Diagonal)

8.0

inch

2

Display Resolution

800 (H) × RGB × 1280 (V)

pixels

3

Pixel Pitch

44.85 (H) × 134.55 (V)

um

4

LCM Outline Dimension

(Without FPC)

114.60 (W) × 184.10 (H) × 2.61 (T)

mm

5

LCD Outline Dimension

111.24 (W) × 180.52 (H) × 0.8 (T)

mm

6

LCD Active Area

107.64 (W) × 172.22 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

GH8555BL

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.55% Min: 5.0%

-

13

LCD Contrast Ratio

Typ.: 1500 Min: 1200

-

14

FPC Version

Z80008-SPM288/SPM168H V2

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/4 Series 6 Parallel (24 lights in total)

-

19

Luminance

380

nit

20

Weight

0.105

kg


Interface Definition Description of 8 Inch 800*1280 IPS LCD Module Full View MIPI Interface 40PIN


PIN NO.

PIN DEF.

FUNCTION DESC.

1-3

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

4-7

NC

No Connection

8-10

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

11

GND

Ground

12

NC

No Connection

13

GND

Ground

14

D2P

Positive MIPI differential data input

15

D2N

Negative MIPI differential data input

16

GND

Ground

17

D1P

Positive MIPI differential data input

18

D1N

Negative MIPI differential data input

19

GND

Ground

20

TCP

Positive MIPI differential CLOCK input

21

TCN

Negative MIPI differential CLOCK input

22

GND

Ground

23

D0P

Positive MIPI differential data input

24

D0N

Negative MIPI differential data input

25

GND

Ground

26

D3P

Positive MIPI differential data input

27

D3N

Negative MIPI differential data input

28

GND

Ground

29

LCD_ID1

LCM ID PIN

30

LCD_RST

LCM RESET PIN

31

LCD_ID2

LCM ID PIN

32

IOVCC

I/O POWER SUPPLY (1.8V)

33-34

LCD_VCC

POWER SUPPLY

35

GND

Ground

36

NC

No Connection

37

GND

Ground

38

NC

No Connection

39

LCD_ID3

LCM ID PIN

40

NC

No Connection

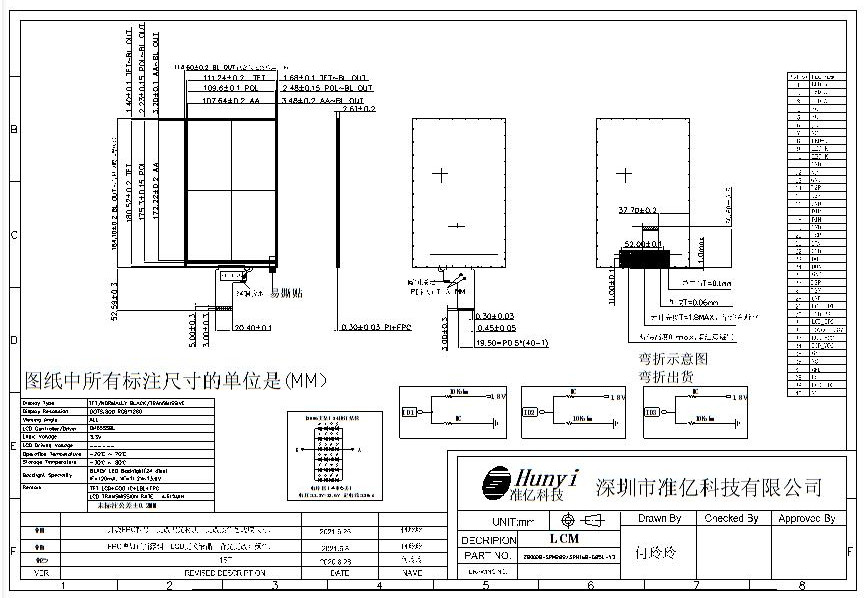

Mechanical Drawing of 8 Inch 800*1280 IPS LCD Module Full View MIPI Interface 40PIN
