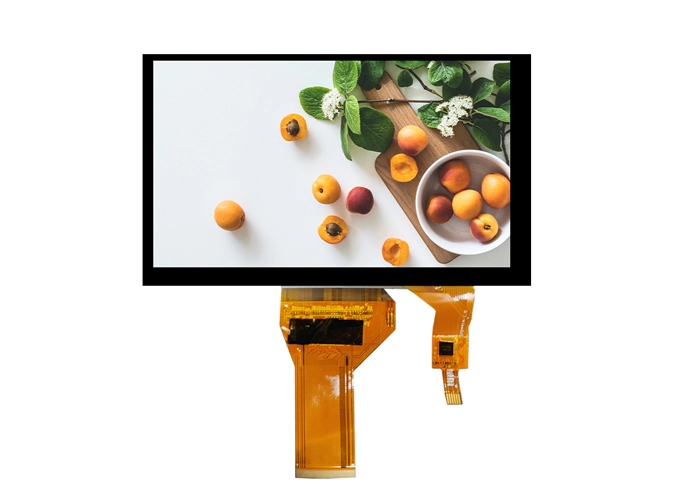

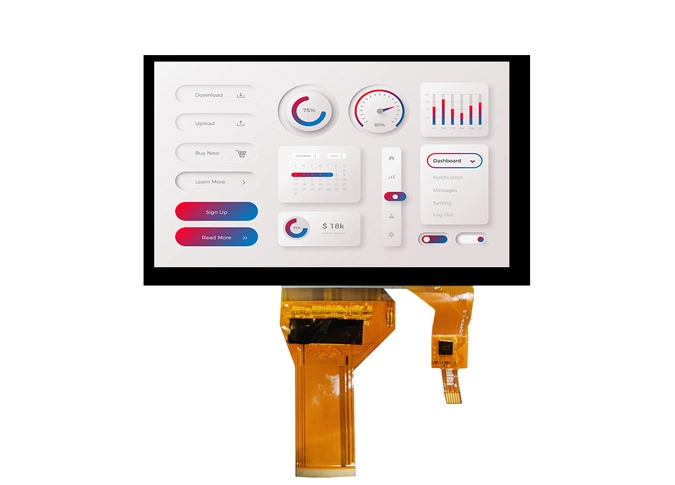

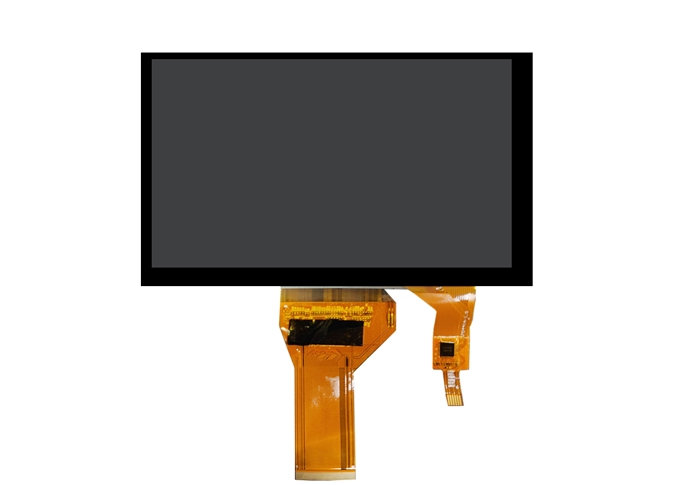

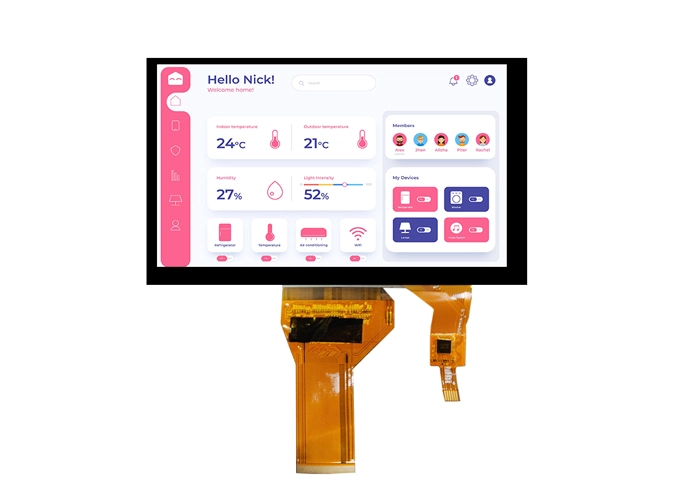

Z70082-ZC painel de tela de toque de 7 polegadas 800*480 RGB I2C Interface FT3427 Controlador de toque capacitivo

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

800(H)  × RGB × 480  (V)

pixels

3

Pixel Pitch

64.2(H) × 179  (V)

um

4

CTP Outline Dimension (Without FPC)

165 (W) ×100 (H) ×7.53 (T)

mm

5

LCM Outline Dimension (Without FPC)

165 (W) ×100 (H) ×5.8 (T)

mm

6

LCD Active Area

152.40  (W) ×91.44  (H)

mm

7

View Direction (Gray Inversion)

ALL  (Full Viewing)

-

8

Driver IC

/

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: TBD

-

13

LCD Contrast Ratio

Typ.: 500    Min:400

-

14

FPC Version

Z70082-P50 V1

-

15

Interface

RGB

-

16

Operating Temperature

- 10°C~ 60°C

-

17

Storage Temperature

-20°C~ 70°C

-

18

Backlight Arrangement

LED/3 Series 9 Parallel (27 lights in total)

-

19

Luminance

Typ.:350

nit

20

Weight

TBD

g

1-2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3-4

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

5

GND

Ground

6

VCOM

No Connection (Common Voltage)

7

DVDD

POWER SUPPLY(3.3V)

8

MODE

No Connection (DE/SYNC MODE SELECT,interal pull high select SYNC mode)

9

DE

DATA   INPUT    ENABLE

10

VS

Vertical    Sync    Input

11

HS

Horizontal    Sync    Input

12- 19

B7-B0

Blue    DATA

20-27

G7-G0

Green    DATA

28-35

R7-R0

Red    DATA

36

GND

Ground

37

DCLK

Sample    Clock

38

GND

Ground

39

L/R

Left/Right    Selection

40

U/D

Up/Down    Selection

41

VGH

No Connection    (Gate    ON    Voltage)

42

VGL

No Connection (Gate    OFF    Voltage)

43

AVDD

No Connection (Power For Analog Circuit)

44

RESET

Global    Reset    pin

45

NC

No Connection

46

VCOM

No Connection(Common Voltage)

47

DITHB

Dithering    Function

48

GND

Ground

49-50

NC

No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.

1

VDD

TP Input Power voltage(3.3V)

2

SCL

TP    I2C clock (SCL) clock (SCLK)(3.3V)

3

SDA

TP    I2C data (SDA) data input (MOSI)(3.3V)

4

GND

Ground

5

INT

TP    Interrupt    PIN(3 3V)

6

RESET

TP    RESET    PIN(3.3V)
