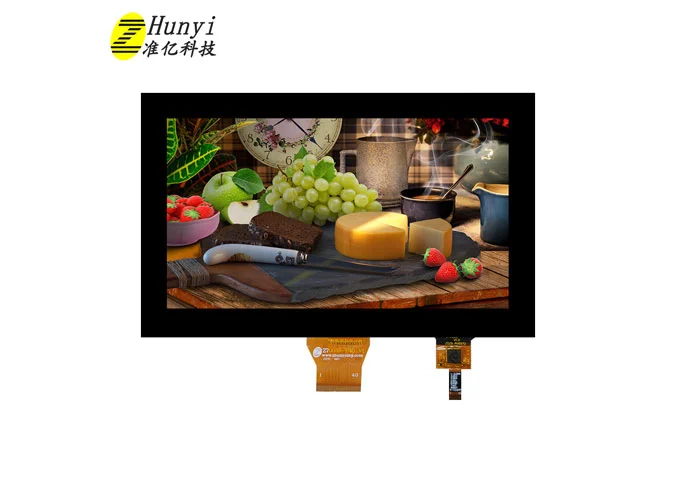

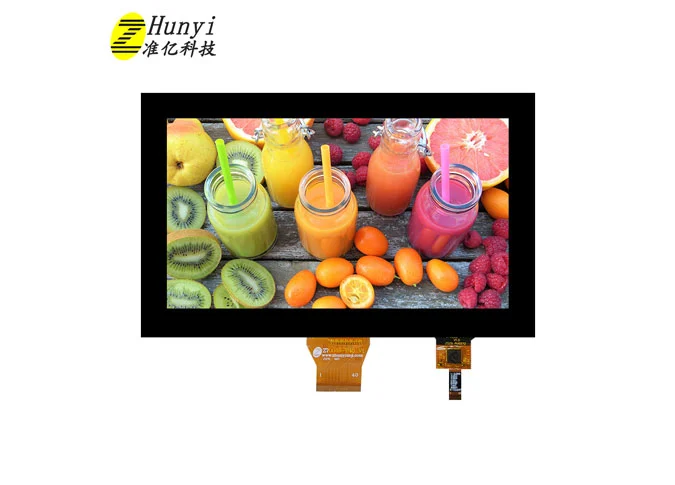

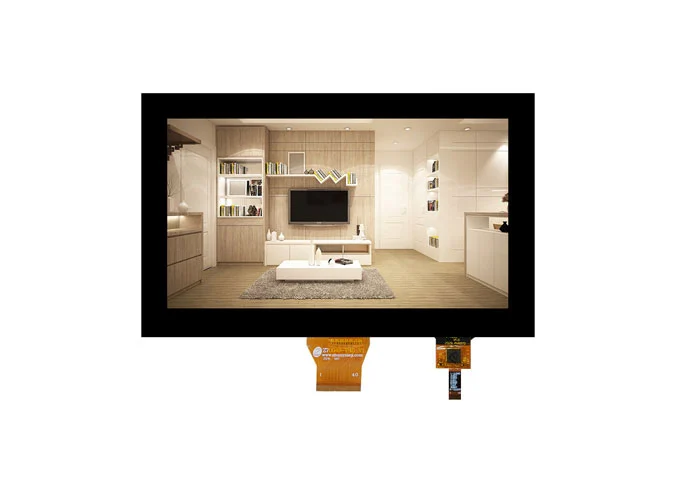

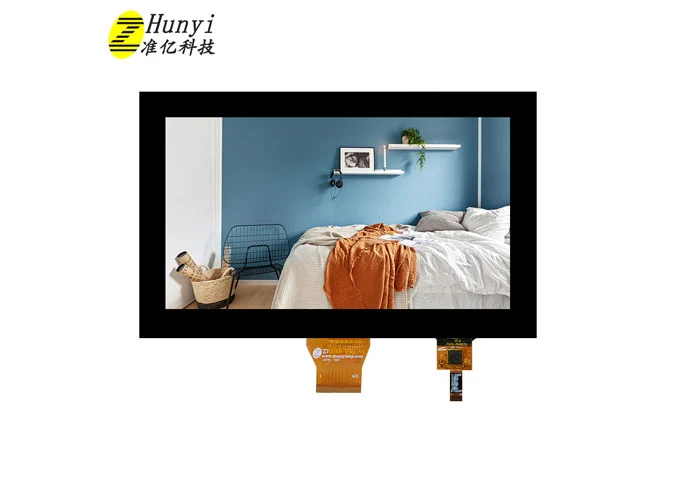

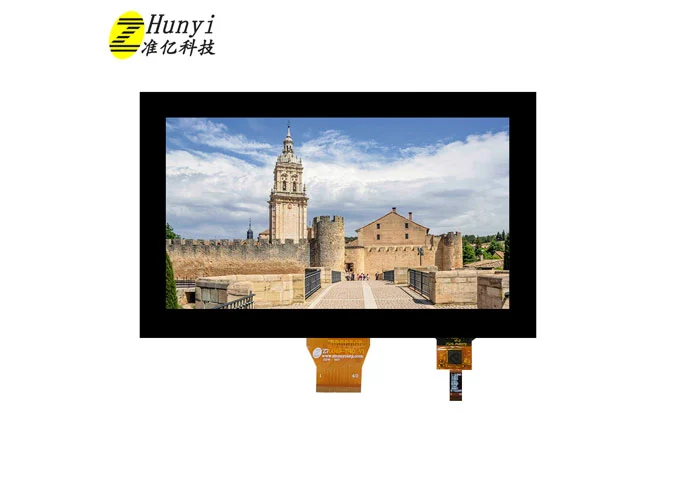

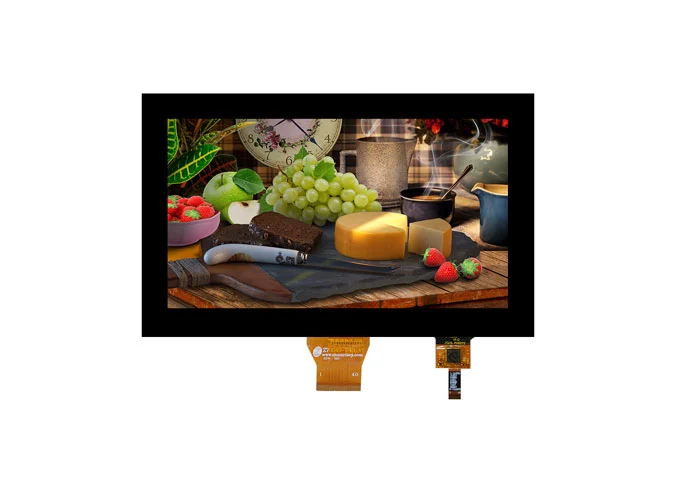

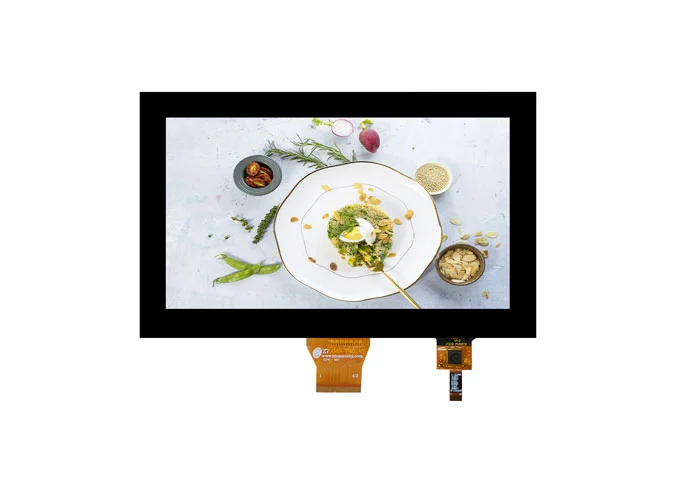

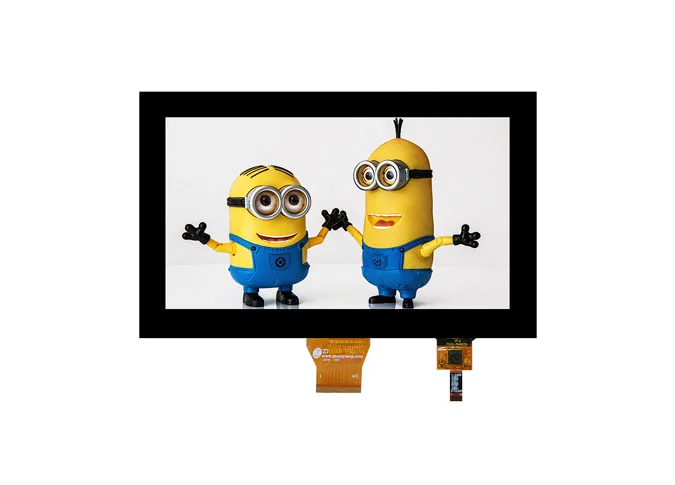

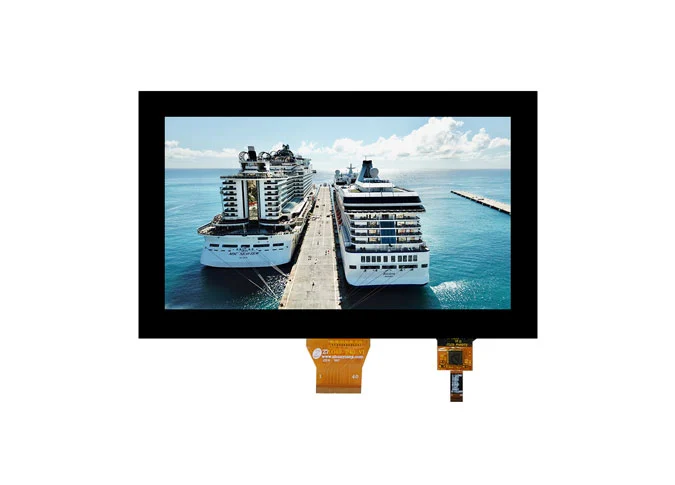

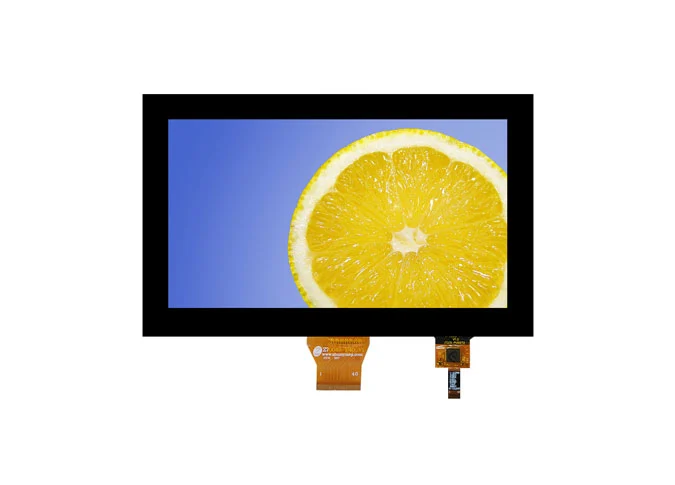

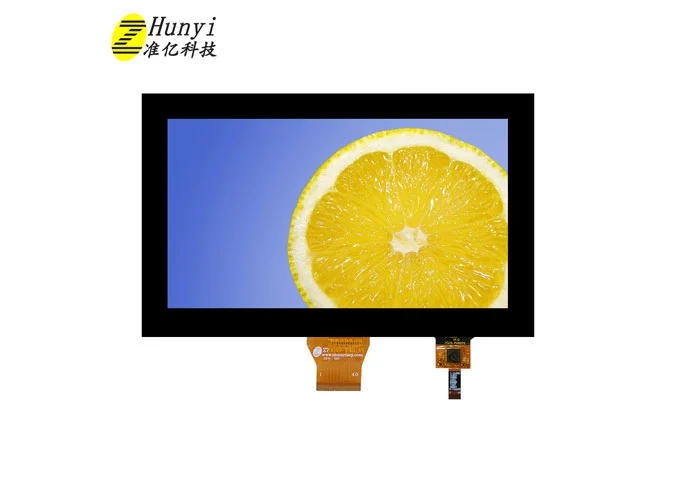

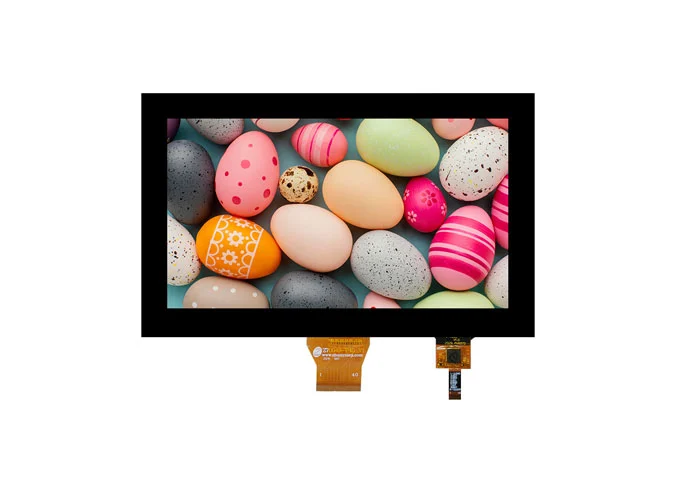

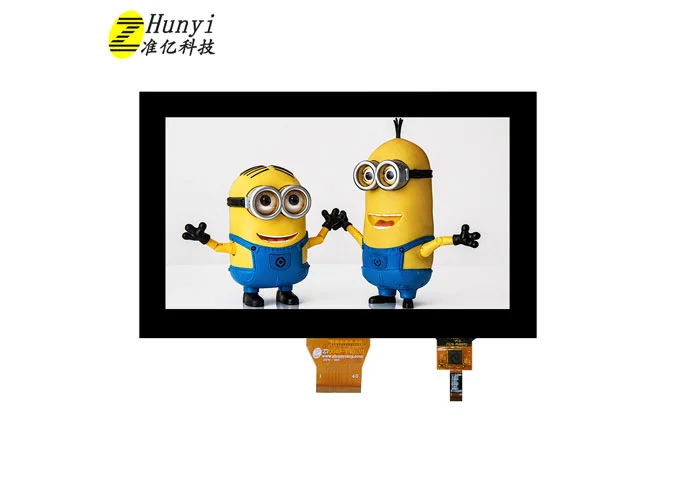

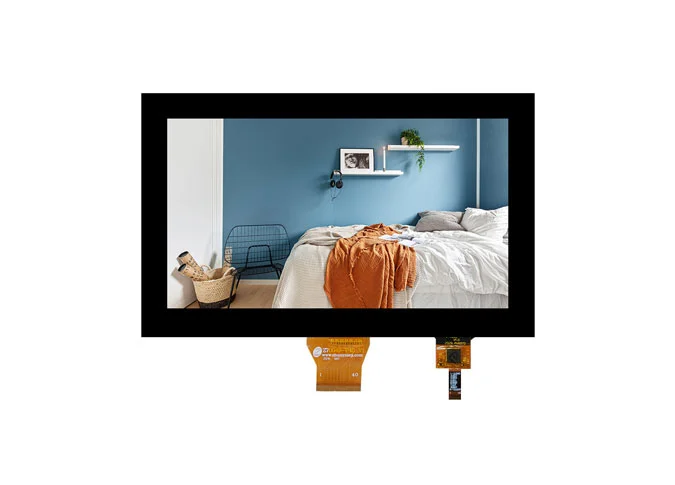

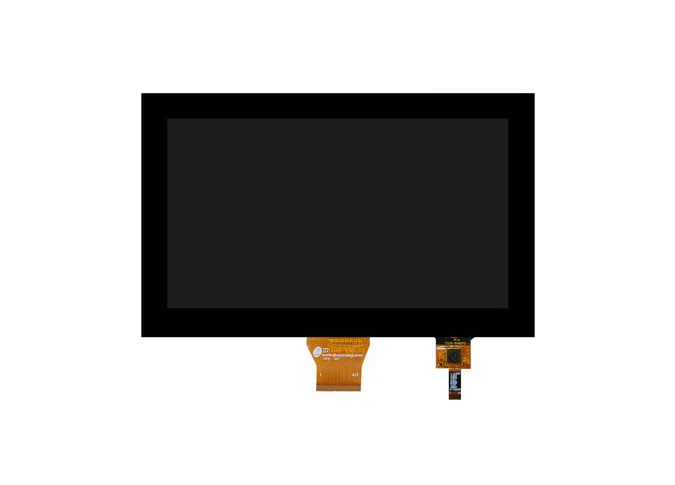

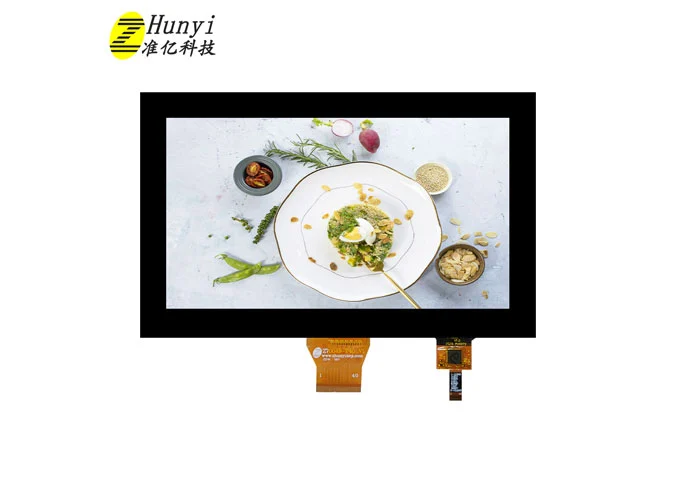

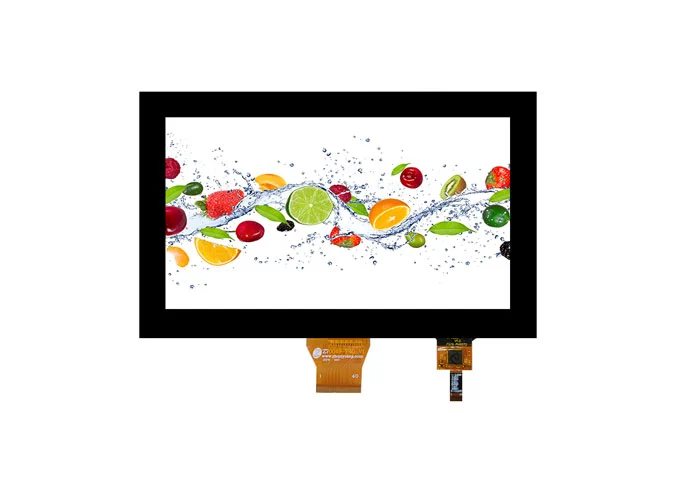

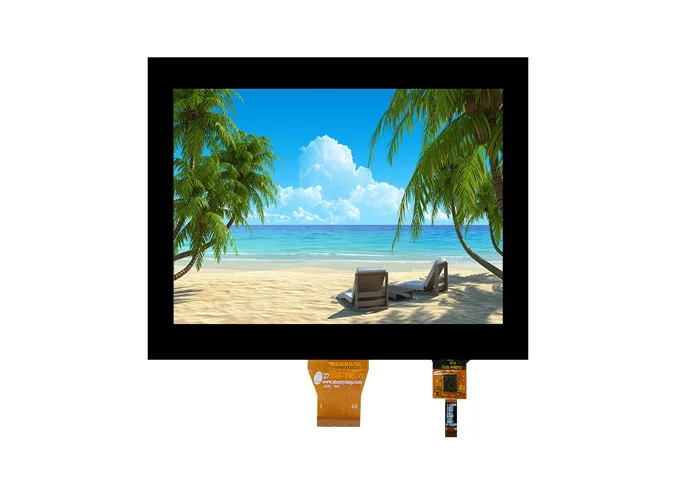

Z70069-ZC painel de toque de 5,5 polegadas TFT LCD display 600*1024 driver duplo IC RGB Interface 450 lits

  • Tamanho: 7 polegadas

  • Resolução: 1024*600

  • Interface LCD: RGB

  • Interface de toque: IIC

  • Painel de toque: Capacitivo

  • Motorista IC: EK79001HN EK73215BCGA

  • Controlador de toque: GT911

  • Ângulo de visão: IPS

  • Tipo de Fornecimento: Fábrica/Fabricante

  • Certificação: ISO9001, IATF16949, ROHS, REACH

tft capacitive touchscreen
tft capacitive touchscreen
capacitive display
capacitive touch screen panel
capacitive touchscreen display
lcd capacitive touchscreen
tft capacitive screen
tft capacitive touch
capacitive lcd
capacitive lcd display
capacitive tft
capacitive touch lcd
capacitive touch screen price
capacitive touch tft
capacitive touchscreen lcd
raspberry capacitive touch screen
tft lcd capacitive touchscreen
lcd capacitive touch
lcd capacitive screen
custom capacitive touch panel
surface capacitive touch screen
tft capacitive touchscreen price
buy capacitive touch screen panel
tft capacitive

Visão geral da Z70069-ZC do painel de toque de 5,5 polegadas TFT LCD Display 600*1024 driver duplo IC RGB Interface 450 lits

1

Z70069-ZC é um visor de cristal líquido (LCD) de transistor de película fina de matriz ativa colorida (TFT) com painel de toque capacitivo, QVGA 480*480. Este toque TFTVisor LCD TFT quadradoÉ o driver integrado ST7701S LCD IC e controlador de toque GT911. Este módulo de toque a-Si TFT LCD vem com interface RGB e I2C. Multi-ponto de toque. G G estruturador.

2

Se você tem requisitos especiais, como unidade IC, interface, FPC, painel de toque, luz de fundo, brilho, cor etc, também podemos fornecerLCD TFT personalizadoPara você.

3

Como um dosAtacado fábricas de tela de toque, Nossa fábrica realiza o sistema padrão de qualidade ISO 9001: 2015 e IATF16949: 2016 estritamente, todo o display LCD passou ROHS, certificação REACH.

4

Esta tela de toque LCD horizontal de 7 polegadas é amplamente utilizada em médicos, campainha visual, venda automática, mecanismo de aprendizagem, ventilador, osciloscópio, cozinha, eletrodomésticos, scanner QRcode, casa inteligente, indústria, portátil, ao ar livre, HMI, E-bike, veículo, projetor, impressora 3D, dispositivo de áudio, robô, Escala elétrica, navegação, propaganda do elevador, etc.

General Specifications 5.5 Inch Touch Panel TFT LCD Display 600*1024 Double Driver IC RGB Interface 450 Nits


No.

Item

Specification

Unit

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

600 (H) × RGB × 1024 (V)

pixels

3

Pixel Pitch

50.2 (H) × 143.2 (V)

um

4

LCM Outline Dimension

(Without FPC)

163.7 (W) × 96.9 (H) × 2.59 (T)

mm

5

LCD Outline Dimension

162.2 (W) × 95.7 (H) × 1.0 (T)

mm


TLCM Outline Dimension

(Without FPC)

164 (W) × 99 (H) × 4.34 (T)

mm

6

LCD Active Area

154.21 (W) × 85.92 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

EK79001HN+EK73215BCGA/

HX8282-A11+HX8696-A01

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.0% Min: 4.8%

-

13

LCD Contrast Ratio

Typ.: 800

-

14

FPC Version

Z70042-HB2509-R V1

-

15

Interface

RGB

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/3 Series 10 Parallel (30 lights in total)

-

19

Luminance

450

nit

20

Weight

TBD

kg


Interface Definition Description 5.5 Inch Touch Panel TFT LCD Display 600*1024 Double Driver IC RGB Interface 450 Nits


2.1 LCM

PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

3-4

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

5

GND

Ground

6

VCOM

Common Voltage

7

DVDD

POWER SUPPLY (3.3V)

8

MODE

DE / HV mode select for TTL mode.

9

DE

Data Enable

10

VSD

Vertical synchronize Signal

11

HSD

Horizontal synchronize Signal

12-19

B7-B0

Data bus

20-27

G7-G0

Data bus

28-35

R7-R0

Data bus

36

GND

Ground

37

DLCK

Pixel Clock

38

GND

Ground

39

SHLR

Source Right or Left sequence

40

UPDN

Gate Up or Down scan control

41

VDDG

Gate ON Voltage (18V)

42

VEEG

Gate OFF Voltage (-6V)

43

AVDD

Power for Analog Circuit (9.6V)

44

RSTB

LCM RESET PIN (3.3V)

45

NC

No Connection

46

VCOM

Common Voltage

47

DITH

Dithering Function

48

GND

Ground

49-50

NC

No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


2.2 TP PIN

PIN NO.

PIN DEF.

FUNCTION DESC.

1

TP_RESET

TP RESET PIN

2

TP_VDD

TP POWER SUPPLY (3.3V)

3

GND

Ground

4

TP_INT

TP Interrupt PIN

5

TP_SDA

TP I2C data (SDA) data input (MOSI)

6

TP_SCL

TP I2C clock (SCL) clock (SCLK)

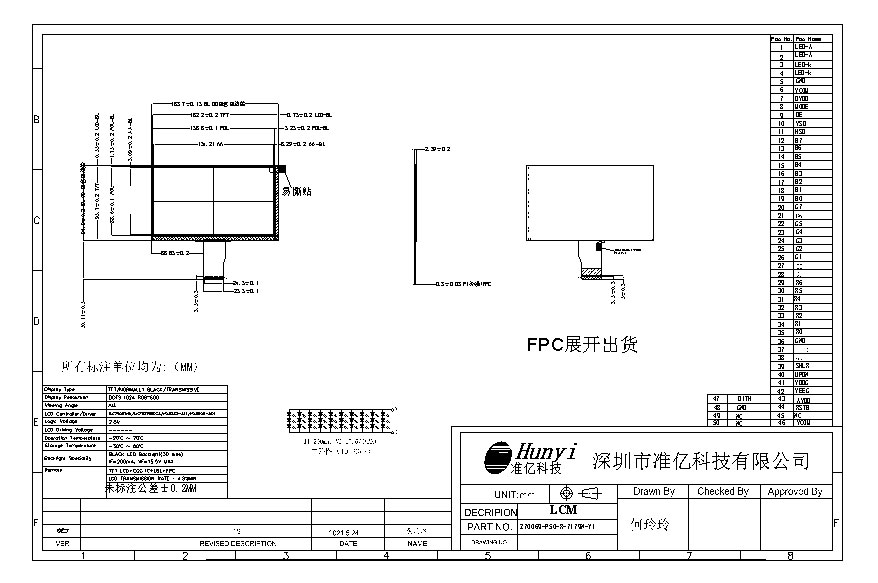

Mechanical Drawing 5.5 Inch Touch Panel TFT LCD Display 600*1024 Double Driver IC RGB Interface 450 Nits


3.1 LCM

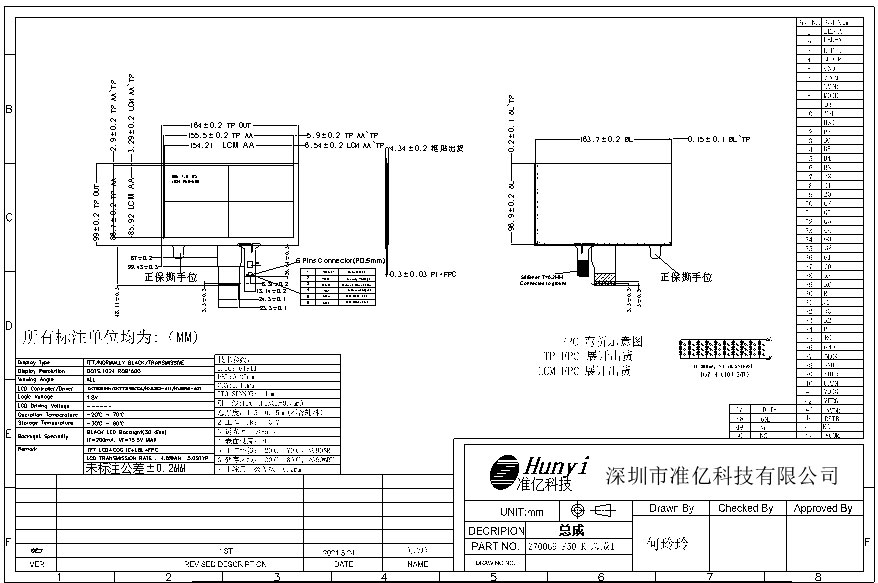

Mechanical Drawing 5.5 Inch Touch Panel TFT LCD Display 600*1024 Double Driver IC RGB Interface 450 Nits


3.2 TLCM


Mechanical Drawing 5.5 Inch Touch Panel TFT LCD Display 600*1024 Double Driver IC RGB Interface 450 Nits
