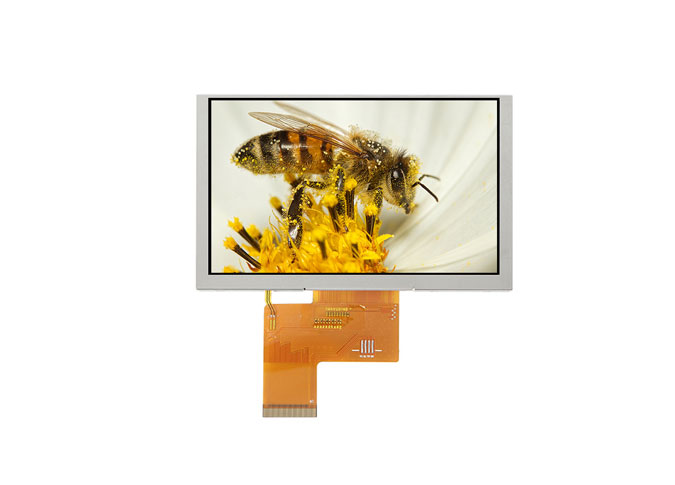

Z70015-P15 tela LCD de 7 polegadas 800*480 tela horizontal 300 lênS interface RGB

  • Tamanho: 7 polegadas

  • Resolução: 800*480

  • Interface: RGB

  • Ângulo de visão: 12 horas

  • Brilho: 320 lêndeas

  • Painel de toque: Suporte CTP/RTP

  • Tipo de Fornecimento: Fábrica/Fabricante

  • Certificação: ISO9001, IATF16949, ROHS, REACH

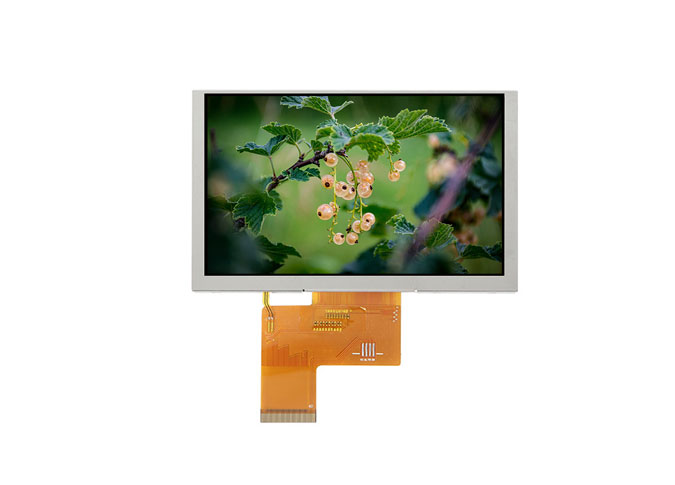

tft screen price
tft screen price

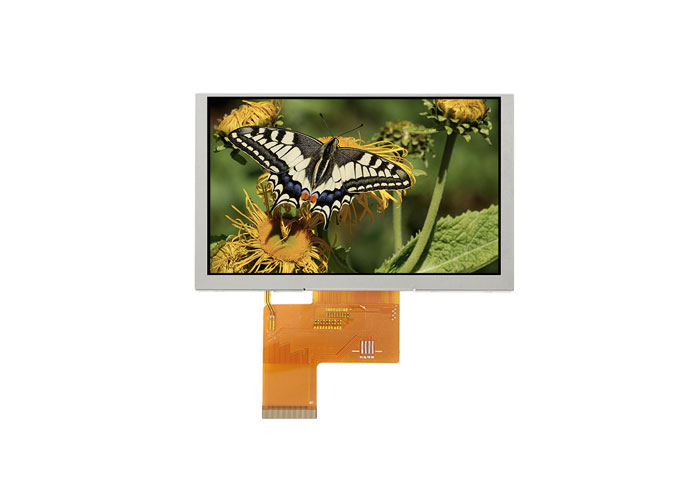

buy tft lcd module
tft lcd cost

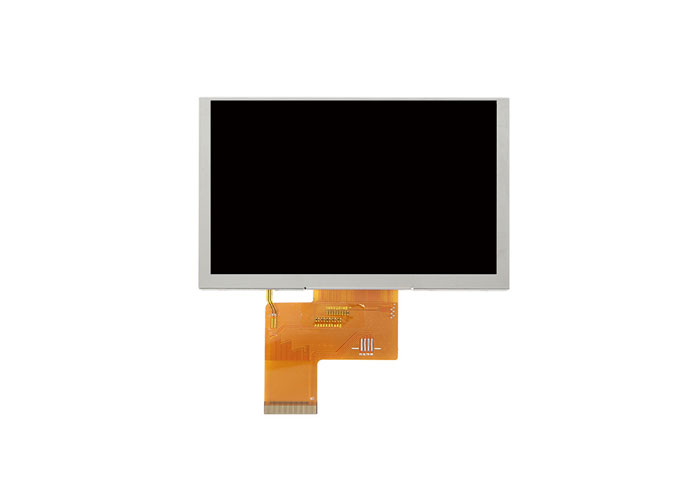

tft lcd display price

Visão geral da Z70015-P15 tela LCD de 7 polegadas 800*480 Tela Horizontal Interface RGB de 300 lêndeas

1

Z70015 é um transistor de filme fino de matriz de cor ativa (TFT) display de cristal líquido (LCD) com resolução de 800*480. Este módulo a-Si TFT LCD vem com interface RGB, ângulo de visão de 320cd/m².

2

Se você tem requisitos especiais, como interface de unidade IC, FPC, painel de toque, brilho, cor, luz de fundo, etc, nós podemos fornecerLCD de forma personalizadaPara você.

3

Como umFornecedor de tela LCD quadrado, Nossa fábrica realiza o sistema padrão de qualidade ISO 9001: 2015 e IATF16949: 2016 estritamente, todo o display LCD passou ROHS, certificação REACH.

4

O horizontal 7 polegadasAtacado tela LCD TFTÉ amplamente utilizado em médicos, campainha visual, venda automática, maquina de aprendizagem, ventilador, osciloscópio, cozinha, eletrodomésticos, scanner QRcode, casa inteligente, indústria, portátil, ao ar livre, HMI, E-bike, veículo, projetor, impressora 3D, dispositivo de áudio, robô, escala elétrica, navegação, publicidade de elevador, etc.

General Specifications 7 Inch LCD Display 800*480 Horizontal Screen 300 Nits RGB Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

800 (H) × RGB × 480 (V)

pixels

3

Pixel Pitch

64.2 (H)× 179 (V)

um

4

LCM Outline Dimension

(Without FPC)

165 (W) × 100 (H) × 5.7 (T)

mm

5

LCD Active Area

154.08 (W) × 85.92 (H)

mm

6

View Direction (Gray Inversion)

12 o'clock

-

7

Driver IC

/

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal White

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

Typ.: TBD

-

12

LCD Contrast Ratio

Typ.: 500 Min: 400

-

13

FPC Version

Z70015-P50 V1

-

14

Interface

RGB

-

15

Operating Temperature

-10°C~ 60°C

-

16

Storage Temperature

-20°C~ 70°C

-

17

Backlight Arrangement

LED/3 Series 6 Parallel (18 lights in total)

-

18

Luminance

Typ.:320

nit

19

Weight

TBD

kg


Interface Definition Description 7 Inch LCD Display 800*480 Horizontal Screen 300 Nits RGB Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3-4

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

5

GND

Ground

6

VCOM

Common Voltage

7

DVDD

POWER SUPPLY

8

MODE

DE/SYNC MODE SELECT

9

DE

DATA INPUT ENABLE

10

VS

Vertical Sync Input

11

HS

Horizontal Sync Input

12-19

B7-B0

Blue DATA

20-27

G7-G0

Green DATA

28-35

R7-R0

Red DATA

36

GND

Ground

37

DCLK

Sample Clock

38

GND

Ground

39

L/R

Left/Right Selection

40

U/D

Up/Down Selection

41

VGH

Gate ON Voltage

42

VGL

Gate OFF Voltage

43

AVDD

Power For Analog Circuit

44

RESET

Global Reset pin

45

NC

No Connection

46

VCOM

Common Voltage

47

DITHB

Dithering Function

48

GND

Ground

49-50

NC

No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.

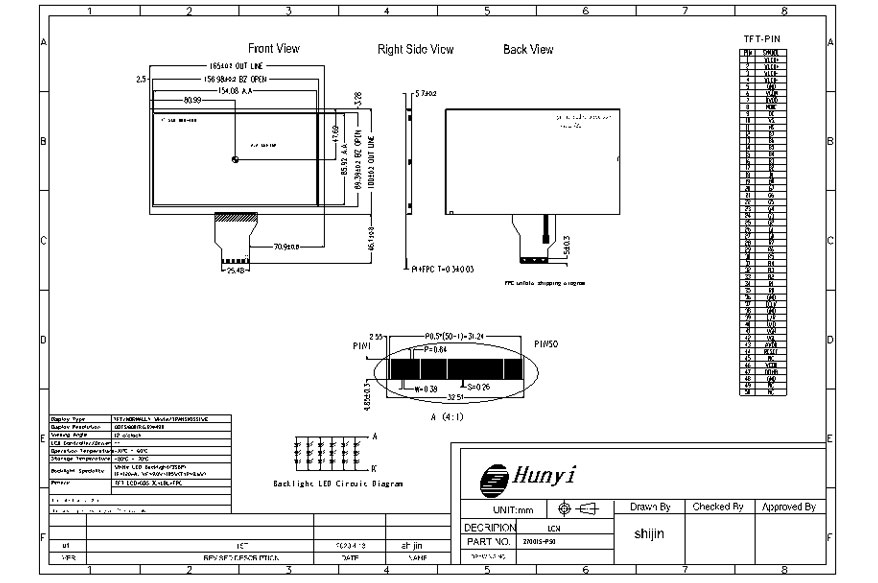

Mechanical Drawing 7 Inch LCD Display 800*480 Horizontal Screen 300 Nits RGB Interface


Mechanical Drawing 7 Inch LCD Display 800*480 Horizontal Screen 300 Nits RGB Interface
