Z70001 7 Polegadas 600*1024 TFT Painel LCD Interface MIPI IPS Vista

  • Tamanho: 7 polegadas

  • Resolução: 600*1024

  • Área ativa: 89,28*152,37mm

  • Interface: MIPI

  • Ângulo de visão: IPS

  • Brilho: 500 cd/m²

  • Painel de toque: Suporte CTP/RTP

  • Tipo de Fornecimento: Fábrica/Fabricante

  • Certificação: ISO9001, IATF16949, ROHS, REACH

7 inch tft display
7 inch tft display
7 lcd display

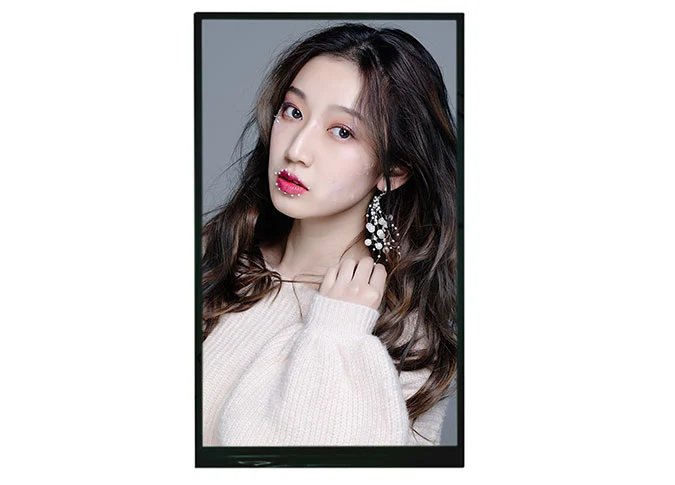

7 tft display
ips display 7 inch

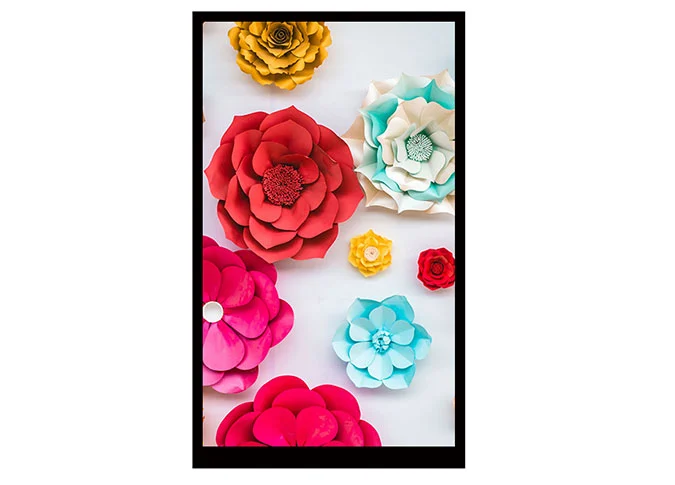

7 inch tft display datasheet
7 inch dsi display
1024x600 display
7 inch lcd panel
7 lcd panel
7 tft panel

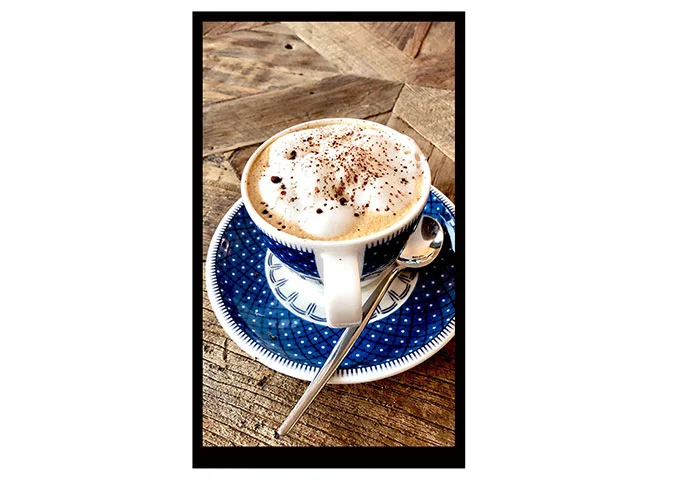

7 inch tft panel
7 inch ips lcd panel

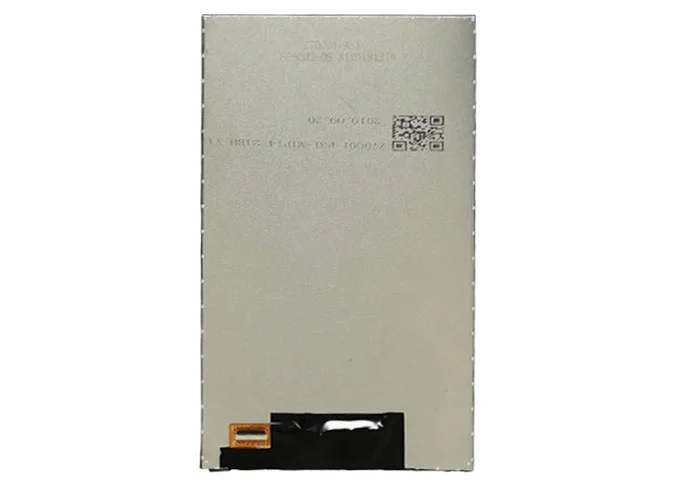

7 inch ips panel

Visão geral do painel LCD TFT Z70001 7 polegadas 600*1024 LCD Interface MIPI IPS View

1

Z70001 é um transistor de filme fino de matriz de cor ativa (TFT) display de cristal líquido (LCD) com resolução de 600*1024. A técnica IPS (In-plane Switching) faz com que este módulo LCD de 7 "tenha um ângulo de visão mais amplo. EsteChina display LCDÉ driver de OTA7290B-C embutido IC. Este módulo a-Si TFT LCD vem com interface MIPI, brilho de 400cd/m².

2

Se você tem requisitos especiais, como unidade de interface IC, FPC, painel de toque, brilho, cor, luz de fundo, etc, como umFornecedor de display LCD personalizado, Nós também podemos personalizar para você.

3

Como umFabricante de display LCD na China, Nossa fábrica realiza o sistema padrão de qualidade ISO 9001: 2015 e IATF16949: 2016 estritamente, todo o display LCD passou ROHS, certificação REACH.

4

A tela LCD de 7 polegadas é amplamente utilizada em médicos, campainha visual, venda automática, mecanismo de aprendizagem, ventilador, osciloscópio, eletrodomésticos, scanner QRcode, casa inteligente, indústria, portátil, ao ar livre, HMI, E-bike, veículo, projetor, impressora 3D, dispositivo de áudio, robô, etc.

Specifications of 7 Inch 600*1024 TFT LCD Panel MIPI Interface IPS View


No.

Item

Specification

Unit

1

Display Size (Diagonal)

6.95

inch

2

Display Resolution

600 (H) × RGB × 1024 (V)

pixels

3

Pixel Pitch

49.6 (H) × 148.8 (V)

um

4

LCM Outline Dimension

(Without FPC)

95 (W) × 163.2 (H) × 2.53 (T)

mm

5

LCD Outline Dimension

93.28 (W) × 159.82 (H) × 0.8 (T)

mm

6

LCD Active Area

89.28 (W) × 152.37 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

OTA7290B-C

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel Driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.7% Min: 3.95%

-

13

LCD Contrast Ratio

Typ.: 800 Min: 600

-

14

FPC Version

Z70001-P31-MIPI4 V3

-

15

Interface

MIPI

-

16

Operating Temperature

-10°C~ 50°C

-

17

Storage Temperature

-20°C~ 60°C

-

18

Backlight Arrangement

LED/3 Series 6 Parallel (18 lights in total)

-

19

Luminance

TBD

nit

20

Weight

TBD

kg


Interface Definition Description of 7 Inch 600*1024 TFT LCD Panel MIPI Interface IPS View


PIN NO.

PIN DEF.

FUNCTION DESC.

1-3

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

4

NC

No Connection

5-8

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

9-10

GND

Ground

11

D2P

Positive MIPI differential data input

12

D2N

Negative MIPI differential data input

13

GND

Ground

14

D1P

Positive MIPI differential data input

15

D1N

Negative MIPI differential data input

16

GND

Ground

17

CLKP

Positive MIPI differential CLOCK input

18

CLKN

Negative MIPI differential CLOCK input

19

GND

Ground

20

D0P

Positive MIPI differential data input

21

D0N

Negative MIPI differential data input

22

GND

Ground

23

D3P

Positive MIPI differential data input

24

D3N

Negative MIPI differential data input

25

GND

Ground

26

IOVCC

I/O POWER SUPPLY

27

RESET

LCM RESET PIN

28

GND

Ground

29

IOVCC

I/O POWER SUPPLY

30-31

VDD

POWER SUPPLY

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.

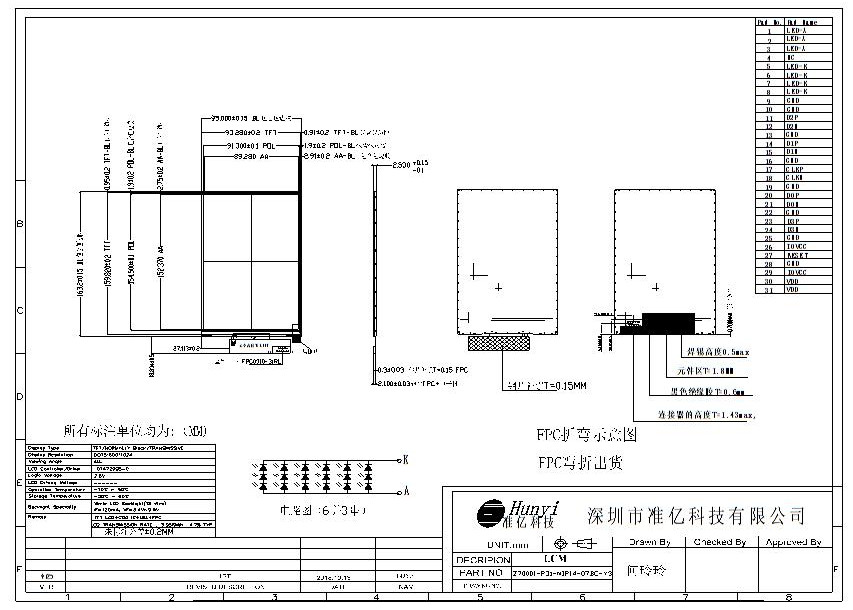

Mechanical Drawing of 7 Inch 600*1024 TFT LCD Panel MIPI Interface IPS View


Mechanical Drawing of 7 Inch 600*1024 TFT LCD Panel MIPI Interface IPS View
