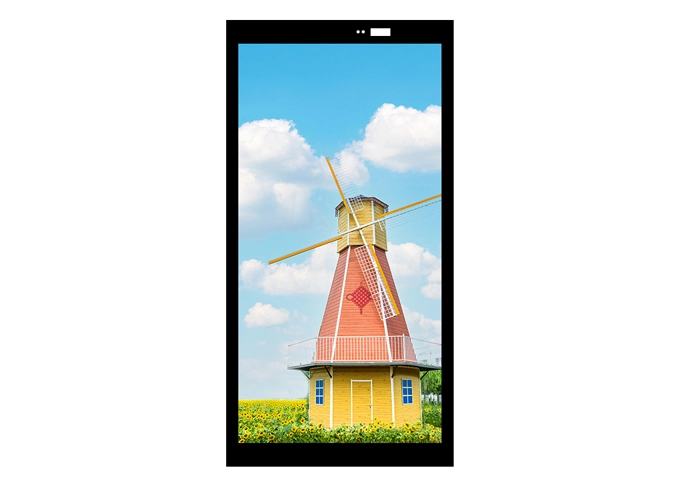

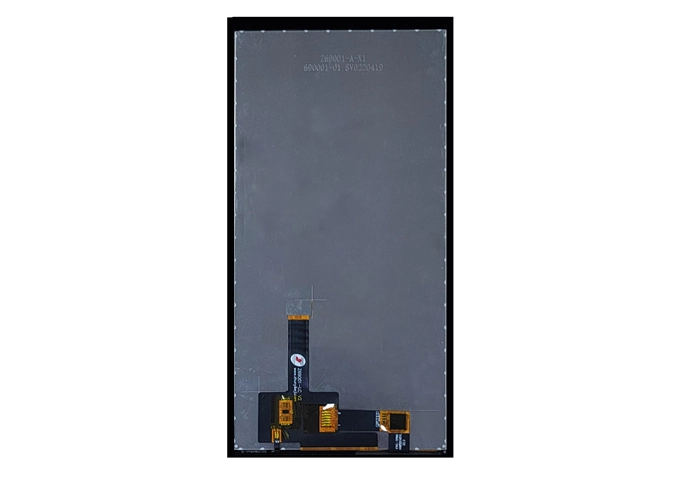

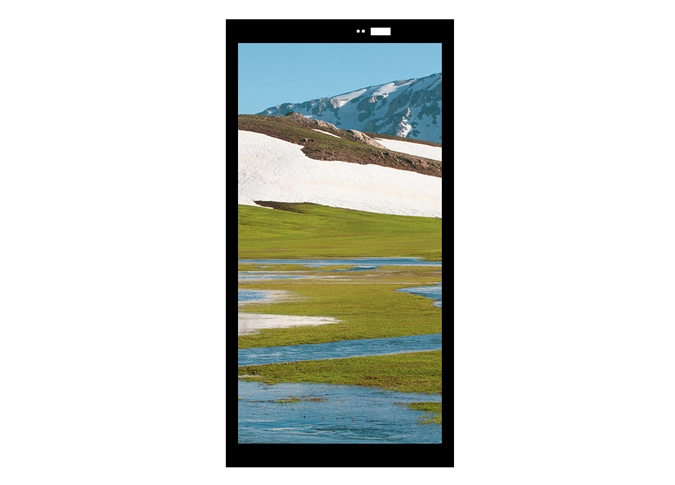

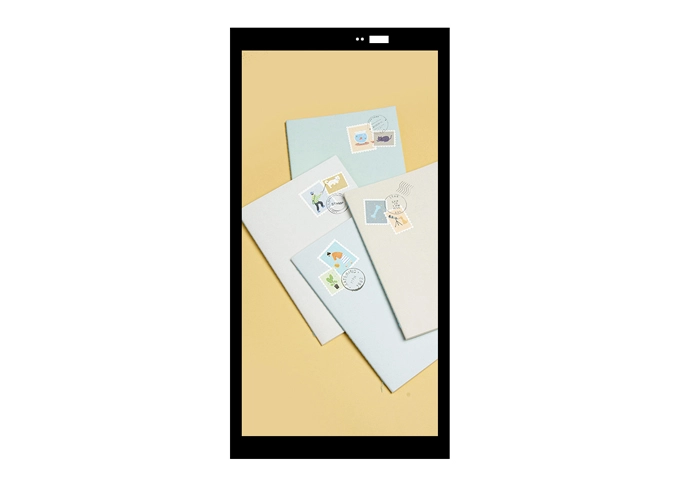

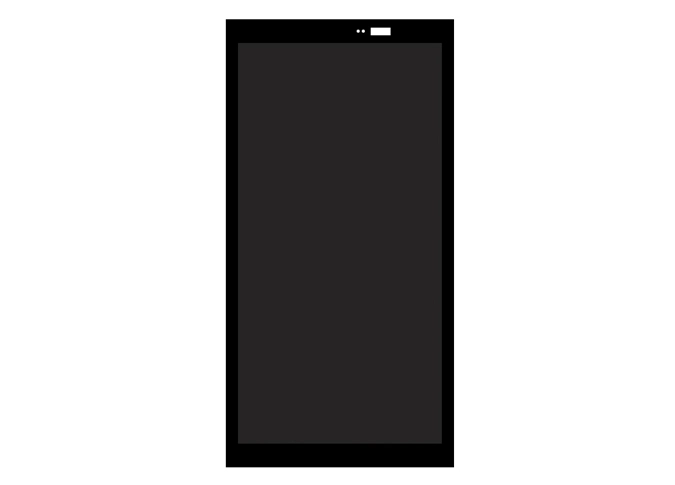

Z69001-ZC tela de toque de 6,9 polegadas 720*1440 Multi-ponto Capacitivo GT911 Driver IC I2C Interface

1

Display Size (Diagonal)

6.9

inch

2

Display Resolution

720(H） × RGB × 1440（V）

pixels

3

Pixel Pitch

36.12(H）× 108.36（V）

um

4

LENS Outline Dimension

(Without FPC）

85.80 (W) ×171.80 (H) ×3.97 (T)

mm

5

LCD Outline Dimension

80.008 (W) × 161.5384 (H) × 0.8 (T)

mm

6

LCD Active Area

78.02（W） ×156.04（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

GC9702P

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.0%  Min:3.6%

-

13

LCD Contrast Ratio

Typ.: 1200  Min:1000

-

14

FPC Version

Z69001-LC V5

-

15

Interface

MIPI

-

16

Operating Temperature

-10°C~ 60°C

-

17

Storage Temperature

-20°C~ 70°C

-

18

Backlight Arrangement

LED/7 Series 3 Parallel (21 lights in total)

-

19

Luminance

Typ.:350

nit

20

Weight

0.118

kg

1

GND

Ground

2

D0_P

Positive MIPI differential data input

3

D0_N

Negative MIPI differential data input

4

GND

Ground

5

D1_P

Positive MIPI differential data input

6

D1_N

Negative MIPI differential data input

7

GND

Ground

8

CLK_P

Positive MIPI differential CLOCK input

9

CLK_N

Negative MIPI differential CLOCK input

10

GND

Ground

11

D2_P

Positive MIPI differential data input

12

D2_N

Negative MIPI differential data input

13

GND

Ground

14

D3_P

Positive MIPI differential data input

15

D3_N

Negative MIPI differential data input

16

GND

Ground

17

TP_VCC

TP  POWER SUPPLY(2.8V/3.3V)

18

TP_RESET

TP  Reset  PIN(1.8V)

19

TP_SDA

TP  I2C data (SDA) data input (MOSI)(1.8V)

20

TP_SCL

TP  I2C clock (SCL) clock (SCLK)(1.8V)

21

TP_INT

TP  Interrupt  PIN(1.8V)

22

GND

Ground

23

PWM

LCM  PWM  PIN

24

RESET

LCM  RESET  PIN

25

TE

Tearing  Effect  pin

26

IOVCC

I/O  POWER SUPPLY(1.8V)

27

VCI

POWER SUPPLY(2.8V)

28-29

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

30

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.

1

GND

Ground

2

TP-INT

TP  Interrupt  PIN(1.8V)

3

TP-SDA

TP  I2C data (SDA) data input (MOSI)(1.8V)

4

TP-SCL

TP  I2C clock (SCL) clock (SCLK)(1.8V)

5

TP-RESET

TP  Reset  PIN(1.8V)

6

TP-VCC

TP  POWER SUPPLY(2.8V)
