Z69001 Tela Vertical de 6,9 polegadas 720*1440 IPS Visor LCD Interface MIPI JD9168S

  • Resolução: 720*1440

  • Interface: MIPI

  • Ângulo de visão: IPS

  • Brilho: 350 lêndeas

  • Painel de toque: Suporte CTP/RTP

  • Tipo de Fornecimento: Fábrica/Fabricante

  • Certificação: ISO9001,IATF16949,ROHS,REACH

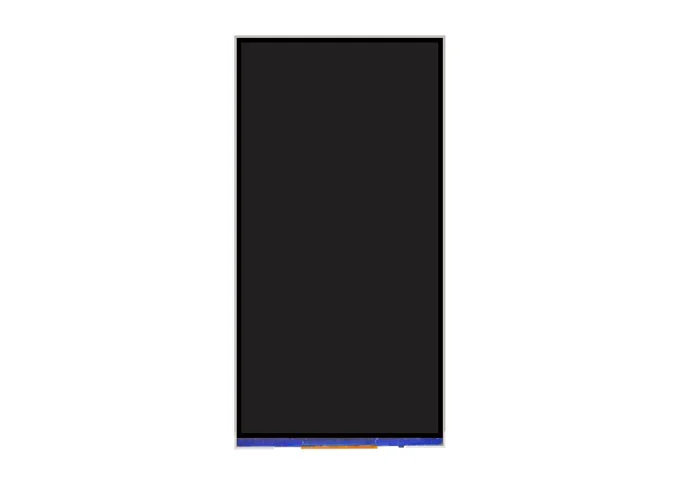

z69001 vertical screen 6

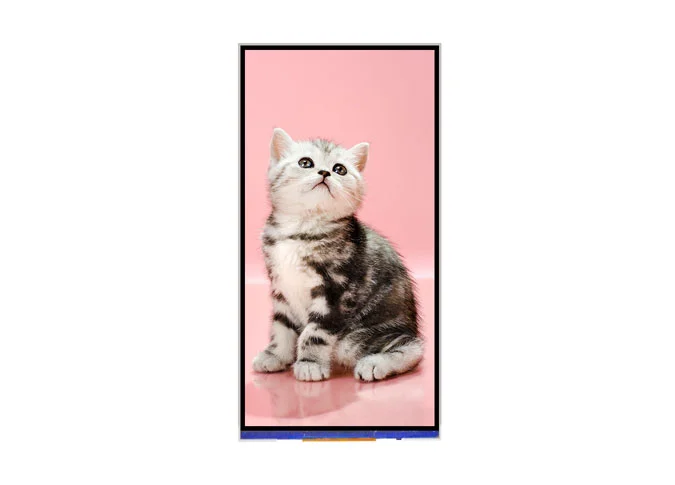

z69001 vertical screen 6

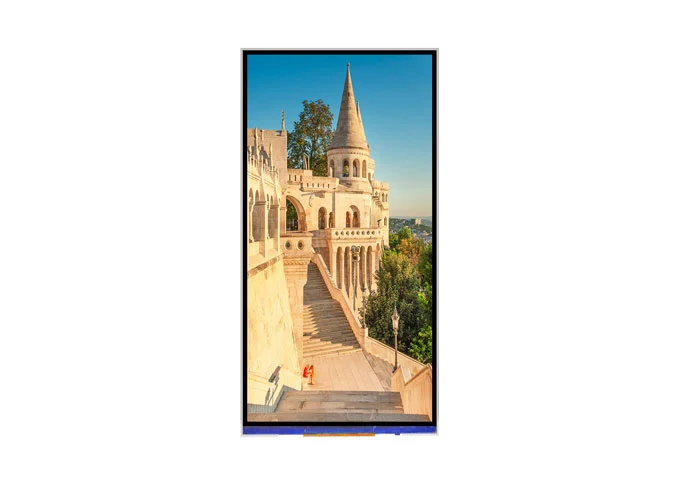

z69001 vertical screen 6

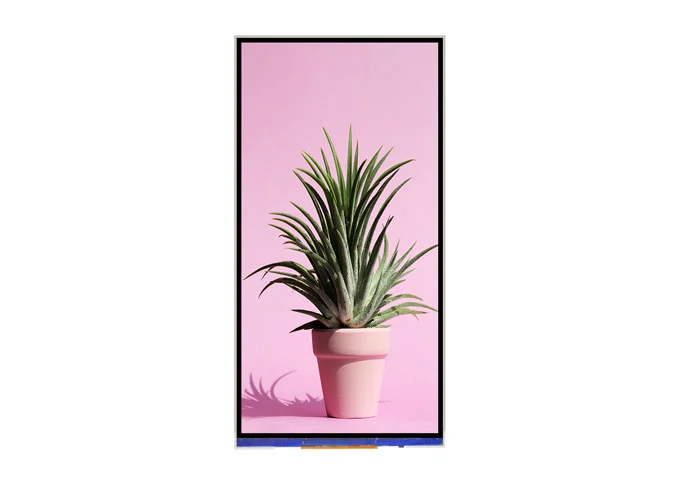

z69001 vertical screen 6
z69001 vertical screen 6
z69001 vertical screen 6

Visão geral da tela vertical Z69001, tela de 6,9 polegadas 720*1440 IPS LCD, interface MIPI JD9168S

1

Z69001 é uma tela de cristal líquido (LCD) de transistor de película fina de matriz ativa colorida (TFT) com resolução de 720*1440. A técnica IPS(In-plane Switching) faz com que este módulo LCD de 6,9 "tenha um ângulo de visão mais amplo. Este display LCD é integrado JD9168S driver IC. Este LCD TFT a-Si vem com interface MIPI.

2

Se você tem requisitos especiais, como interface de unidade IC, FPC, painel de toque, brilho, cor, luz de fundo, etc, nós podemos fornecerVisores TFT personalizadosPara você.

3

Como um dosFabricantes de display LCD na China, Nossa fábrica realiza o sistema padrão de qualidade ISO 9001: 2015 e IATF16949: 2016 estritamente, todo o display LCD passou ROHS, certificação REACH.

4

O 6.9"Tela LCD POSÉ amplamente utilizado em automotivo, livro eletrônico, campainha de vídeo, sistema doméstico, assistente pessoal, controle industrial, rastreador de fitness, POS eletrônico, código QR, casa inteligente, quiosques de varejo, sinalização digital, eletrônicos de consumo ect

General Specifications of Vertical Screen 6.9 inch 720*1440 IPS LCD Display MIPI Interface JD9168S


No.

Item

Specification

Unit

1

Display Size (Diagonal)

6.9

inch

2

Display Resolution

720(H) × RGB × 1440(V)

pixels

3

Pixel Pitch

36.12(H)× 108.36(V)

um

4

LENS Outline Dimension

(Without FPC)

-

mm

5

LCD Outline Dimension

80.008 (W) × 161.5384 (H) × 0.8 (T)

mm

6

LCD Active Area

78.02(W) ×156.04(H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

GC9702P

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.0%  Min:3.6%

-

13

LCD Contrast Ratio

Typ.: 1200  Min:1000

-

14

FPC Version

Z69001-LC V5

-

15

Interface

MIPI

-

16

Operating Temperature

-10°C~ 60°C

-

17

Storage Temperature

-20°C~ 70°C

-

18

Backlight Arrangement

LED/7 Series 3 Parallel (21 lights in total)

-

19

Luminance

Typ.:350

nit

20

Weight

0.118

kg


Interface Definition Description of Vertical Screen 6.9 inch 720*1440 IPS LCD Display MIPI Interface JD9168S


PIN NO.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

D0_P

Positive MIPI differential data input

3

D0_N

Negative MIPI differential data input

4

GND

Ground

5

D1_P

Positive MIPI differential data input

6

D1_N

Negative MIPI differential data input

7

GND

Ground

8

CLK_P

Positive MIPI differential CLOCK input

9

CLK_N

Negative MIPI differential CLOCK input

10

GND

Ground

11

D2_P

Positive MIPI differential data input

12

D2_N

Negative MIPI differential data input

13

GND

Ground

14

D3_P

Positive MIPI differential data input

15

D3_N

Negative MIPI differential data input

16

GND

Ground

17

TP_VCC

TP  POWER SUPPLY(2.8V/3.3V)

18

TP_RESET

TP  Reset  PIN(1.8V)

19

TP_SDA

TP  I2C data (SDA) data input (MOSI)(1.8V)

20

TP_SCL

TP  I2C clock (SCL) clock (SCLK)(1.8V)

21

TP_INT

TP  Interrupt  PIN(1.8V)

22

GND

Ground

23

PWM

LCM  PWM  PIN

24

RESET

LCM  RESET  PIN

25

TE

Tearing  Effect  pin

26

IOVCC

I/O  POWER SUPPLY(1.8V)

27

VCI

POWER SUPPLY(2.8V)

28-29

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

30

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
