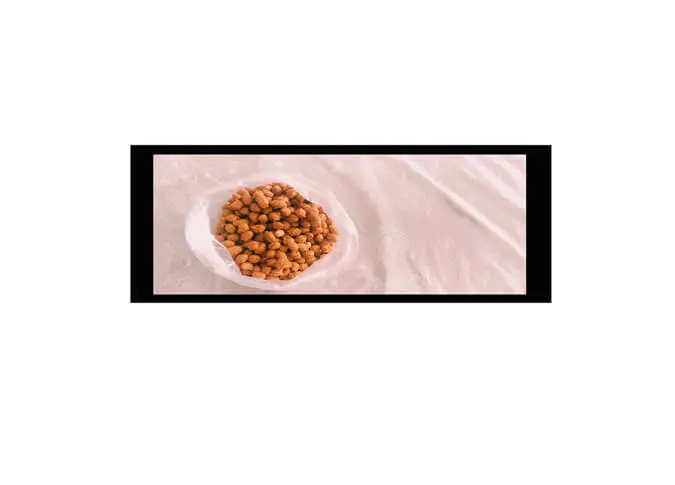

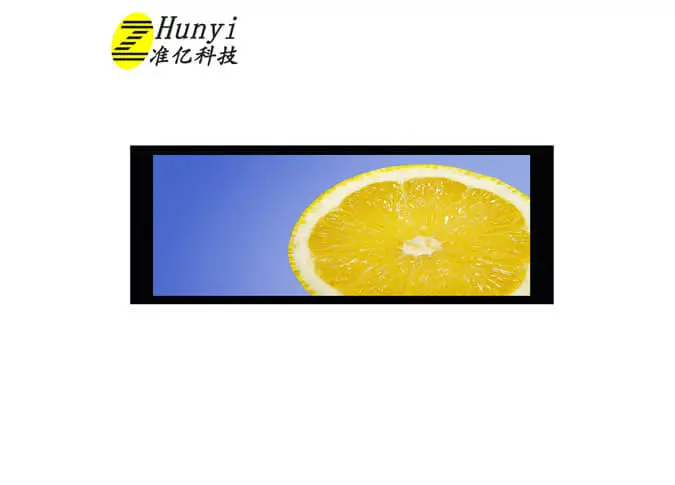

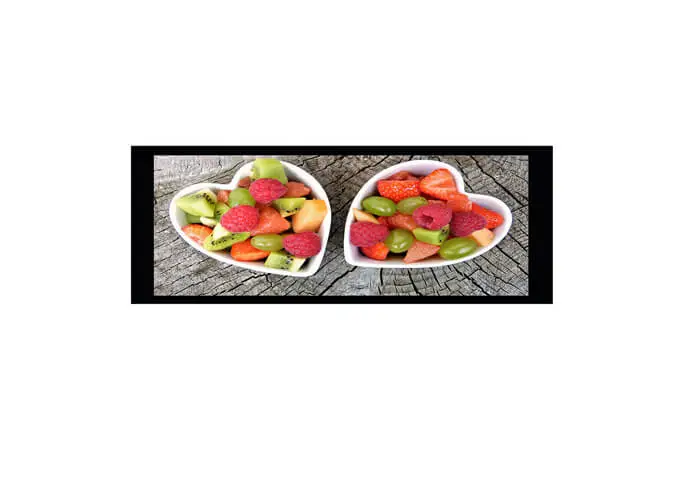

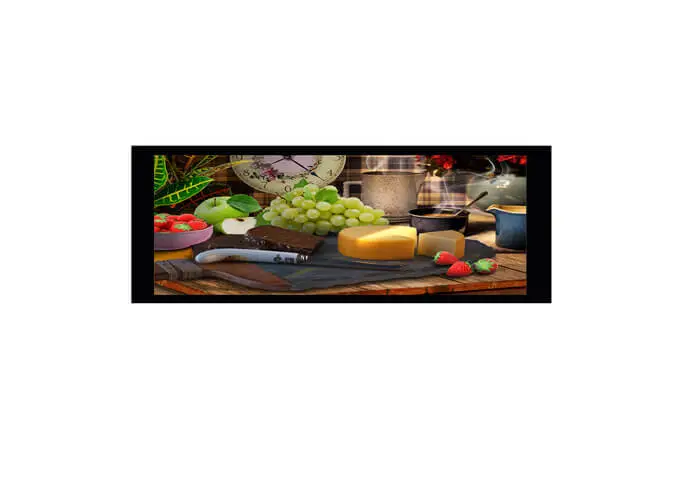

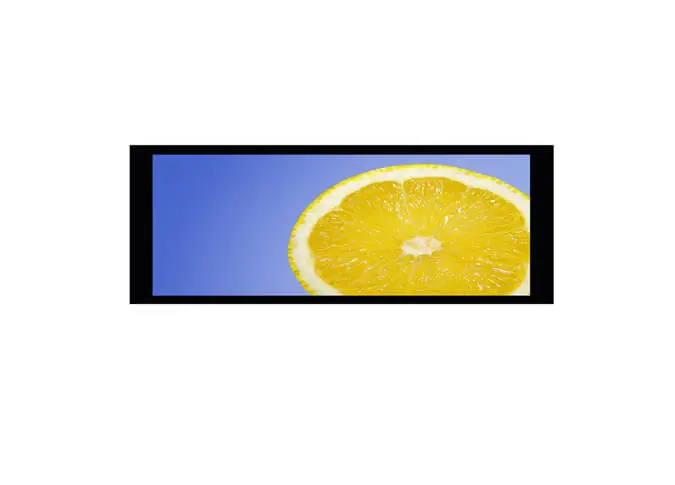

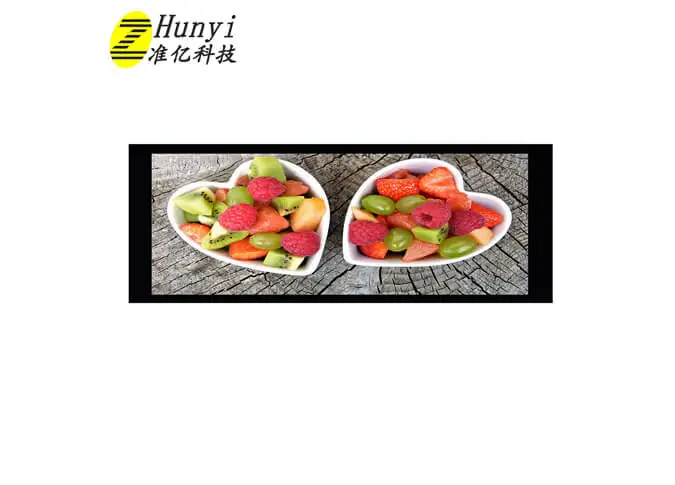

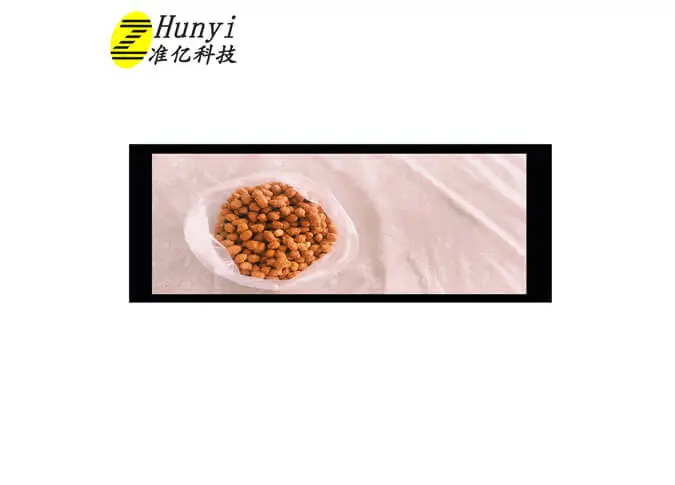

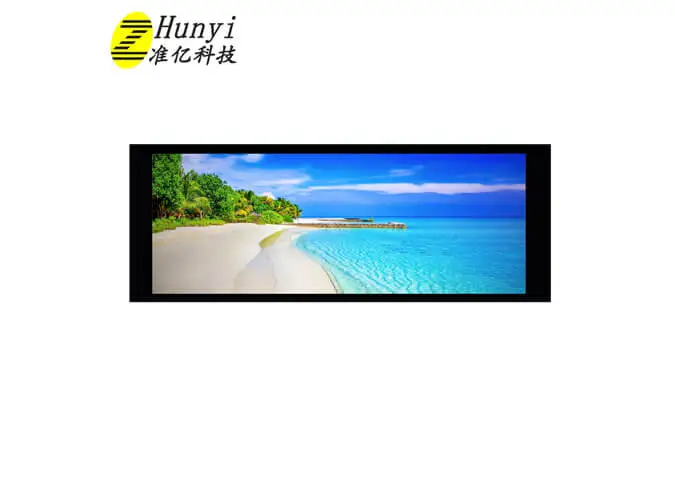

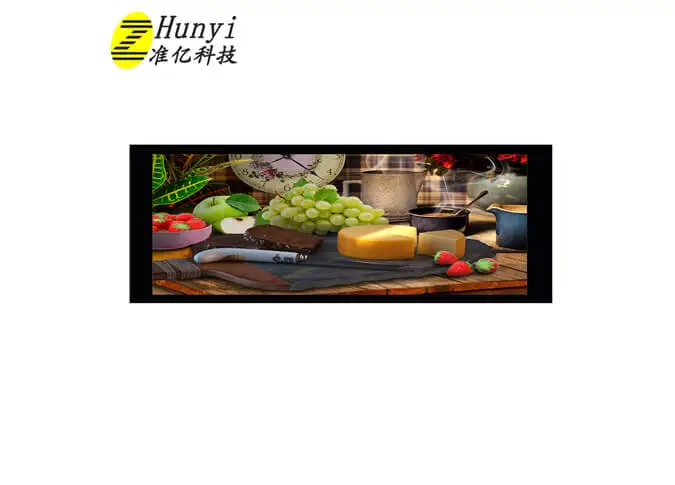

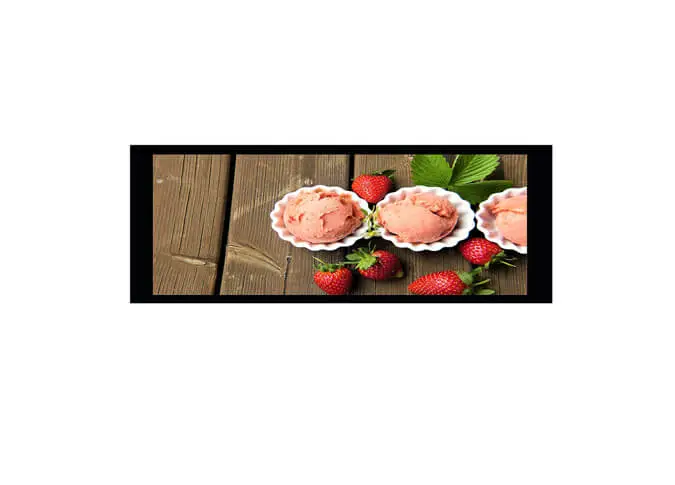

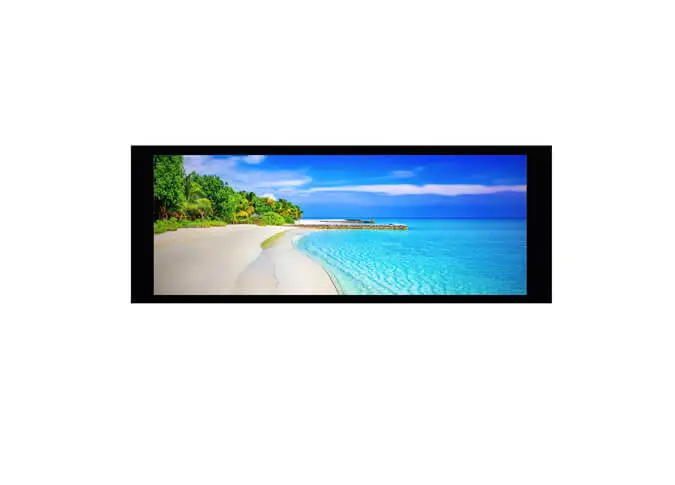

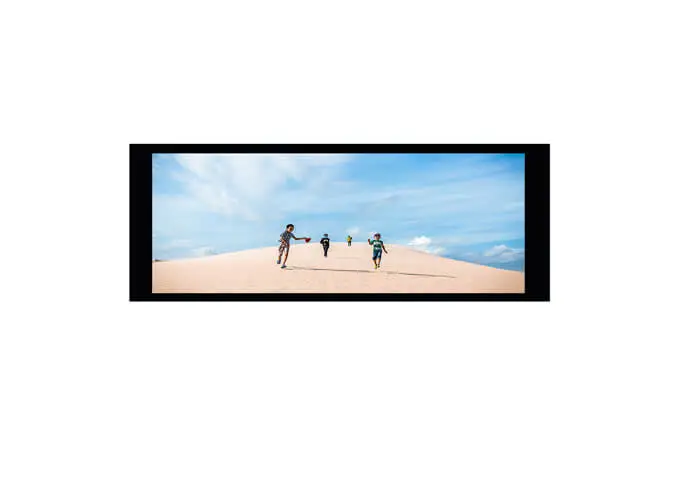

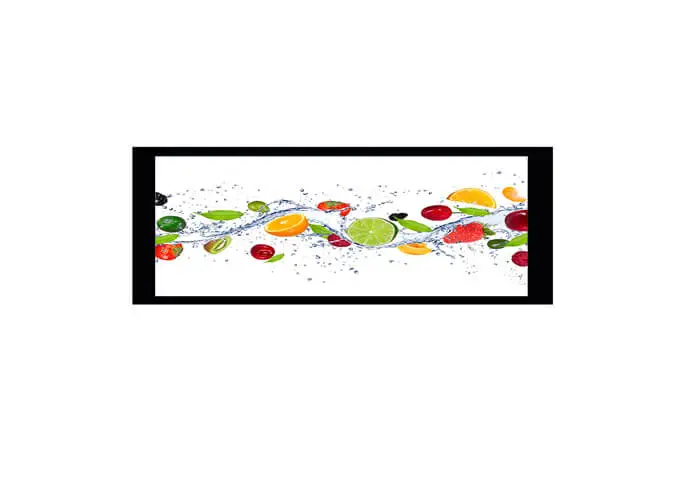

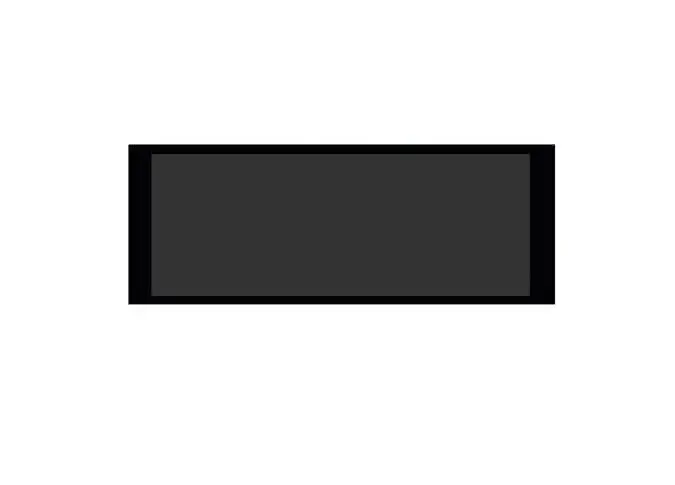

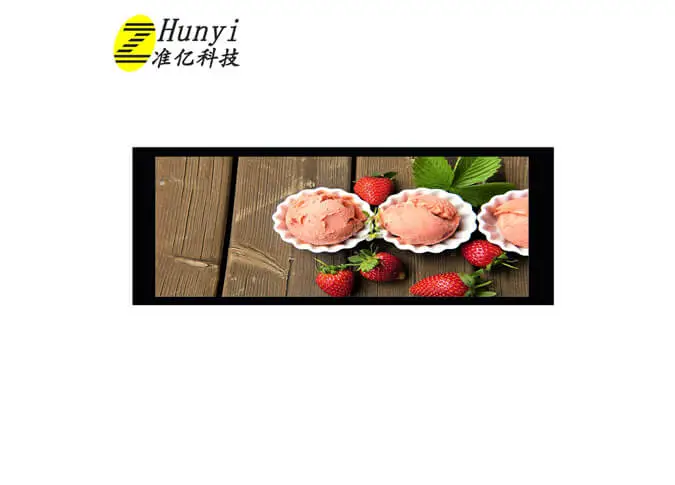

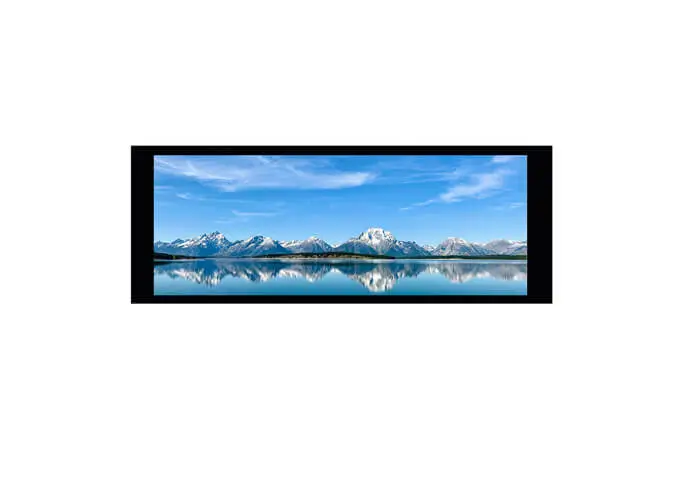

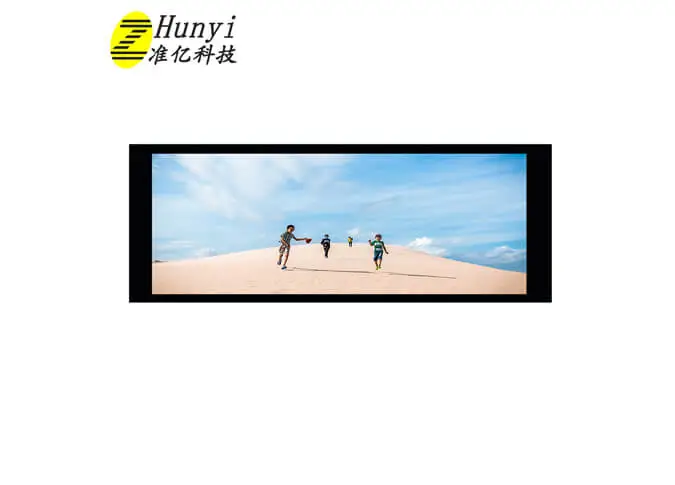

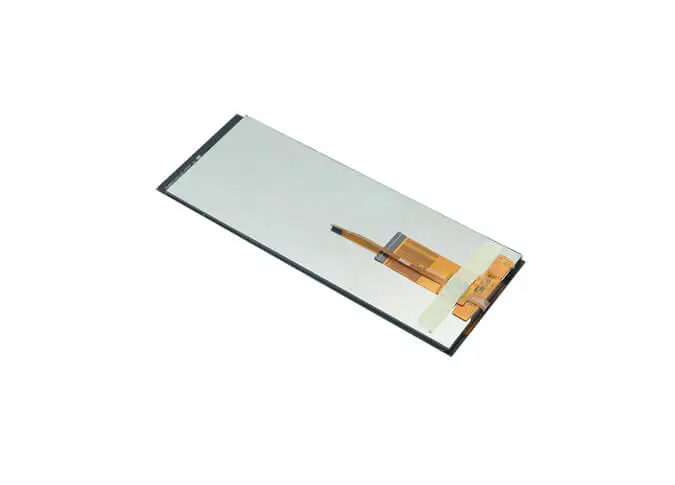

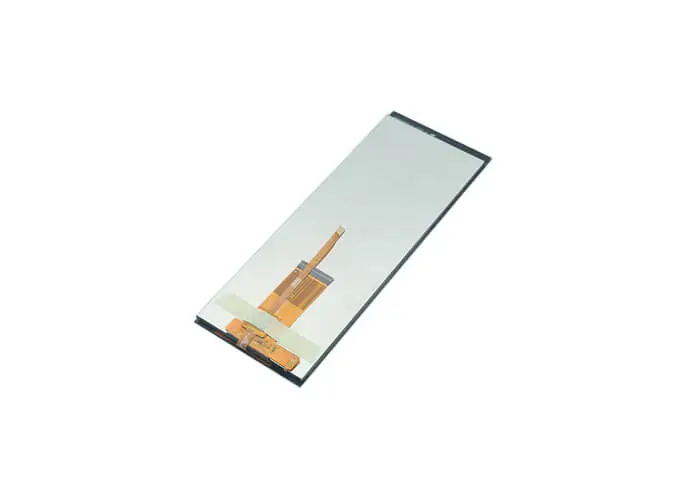

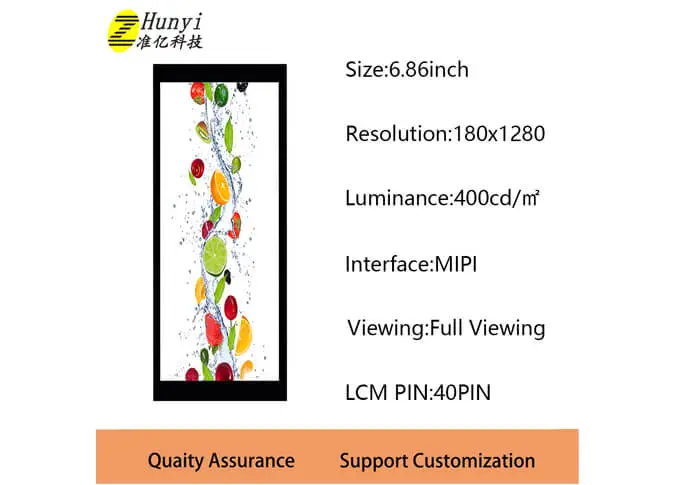

Z686006 Tipo de Barra Painel de Tela LCD de 6,86 Polegadas 480*1280 Ângulo de Visão Completa Interface MIPI

  • Tamanho: tela LCD de 6,86 polegadas

  • Resolução: 480*1280

  • Área ativa: 60.22*160.59mm

  • Interface: MIPI

  • Ângulo de visão: IPS

  • Brilho: 500 cd/m²

  • Painel de toque: Suporte CTP/RTP

  • Tipo de Fornecimento: Fábrica/Fabricante

  • Certificação: ISO9001, IATF16949, ROHS, REACH

6.86 inch lcd screen
6.86 inch lcd screen
6.86 inch lcd screen manufacturer
ips tft panel bulk
china ips lcd bulk
china ips tft bulk
6.86 inch lcd screen bulk
ips tft panel company
china ips lcd company
china ips tft company
6.86 inch lcd screen company
ips tft panel
china ips lcd
china ips tft
6.86 inch lcd screen
ips tft panel wholesale
china ips lcd wholesale
china ips tft wholesale
6.86 inch lcd screen wholesale
ips tft panel manufacturer
china ips lcd manufacturer
6.86 inch lcd screen
ips tft panel
china ips lcd
china ips tft
ips tft panel wholesale

Visão geral do tipo de barra Z686006 painel de tela LCD de 6,86 polegadas 480*1280 interface de ângulo de visão completa MIPI

1

Z686006 é um transistor de filme fino de matriz de cor ativa (TFT) display de cristal líquido (LCD) com resolução de 480*1280. A técnica IPS (In-plane Switching) faz com que este LCD IPS da China de 6,86 "tenha um ângulo de visão mais amplo. Este painel IPS TFT é embutido HICNL9707 driver IC. Este módulo a-Si TFT LCD vem com interface MIPI, brilho de 500cd/m².

2

Se você tem requisitos especiais, como interface de unidade IC, FPC, painel de toque, brilho, cor, luz de fundo, etc, também podemos fornecerMódulo de exibição LCD personalizadoPara você.

3

NossoFábrica de módulo LCDRealizar a ISO 9001: 2015 e IATF16949: 2016 sistema padrão de qualidade estritamente, todos osTipo de barra TFT LCDPassou ROHS, certificação REACH.

4

A tela LCD de 6,86 polegadas é amplamente utilizada em médicos, campainha visual, jogador de jogos, eletrodomésticos, scanner QRcode, casa inteligente, indústria, portátil, ao ar livre, HMI, E-bike, veículo, projetor, impressora 3D, dispositivo de áudio, robô, etc.

Specifications of Bar Type 6.86 Inch LCD Screen Panel 480*1280 Full View Angle MIPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

6.86

inch

2

Display Resolution

480 (H) × RGB × 1280 (V)

pixels

3

Pixel Pitch

41.8 (H) × 125.4 (V)

um

4

LCM Outline Dimension

(Without FPC)

171.79 (W) × 65.72 (H) × 2.6 (T)

mm

5

LCD Outline Dimension

169.01 (W) × 63.39 (H) × 0.8 (T)

mm

6

TLCM Outline Dimension

(Without FPC)

N/A

mm

7

LCD Active Area

160.51 (W) × 60.19 (H)

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

ICNL9707

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 4.4% Min: 3.74%

-

14

LCD Contrast Ratio

Typ.: 1500 Min: 1000

-

15

FPC Version

Z686006-NZ01-I977-Y1

-

16

Interface

MIPI

-

17

Operating Temperature

-20°C~ 70°C

-

18

Storage Temperature

-30°C~ 80°C

-

19

Backlight Arrangement

LED/4 Series 4 Parallel (16 lights in total)

-

20

Luminance

500

nit

21

Weight

0.105

kg


Interface Definition Description of Bar Type 6.86 Inch LCD Screen Panel 480*1280 Full View Angle MIPI Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

VCC

POWER SUPPLY(3.3V)

3

IOVCC

I/O POWER SUPPLY(1.8V)

4

GND

Ground

5

RESET

LCM RESET PIN

6

IOVCC

I/O POWER SUPPLY(1.8V)

7

NC

No Connection

8

ID2

LCM ID PIN

9

ID1

LCM ID PIN

10-15

NC

No Connection

16

GND

Ground

17

D3N

Negative MIPI differential data input

18

D3P

Positive MIPI differential data input

19

GND

Ground

20

D2N

Negative MIPI differential data input

21

D2P

Positive MIPI differential data input

22

GND

Ground

23

CLKN

Negative MIPI differential CLOCK input

24

CLKP

Positive MIPI differential CLOCK input

25

GND

Ground

26

D1N

Negative MIPI differential data input

27

D1P

Positive MIPI differential data input

28

GND

Ground

29

D0N

Negative MIPI differential data input

30

D0P

Positive MIPI differential data input

31-32

GND

Ground

33-36

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

37

NC

No Connection

38-40

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.

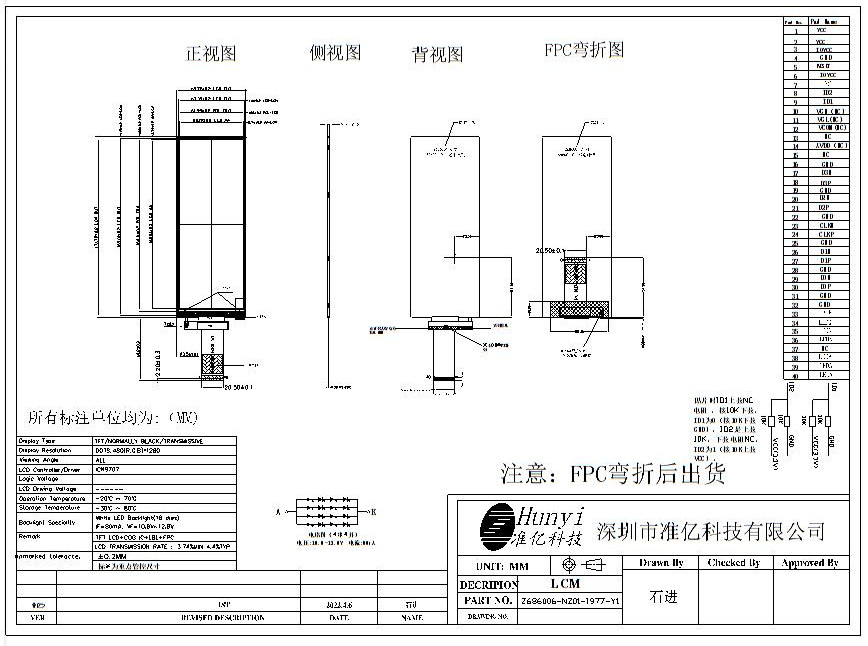

Mechanical Drawing of Bar Type 6.86 Inch LCD Screen Panel 480*1280 Full View Angle MIPI Interface


Mechanical Drawing of Bar Type 6.86 Inch LCD Screen Panel 480*1280 Full View Angle MIPI Interface
