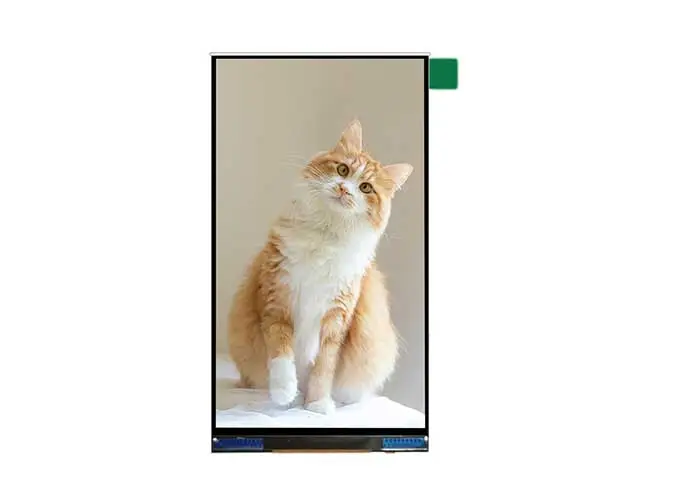

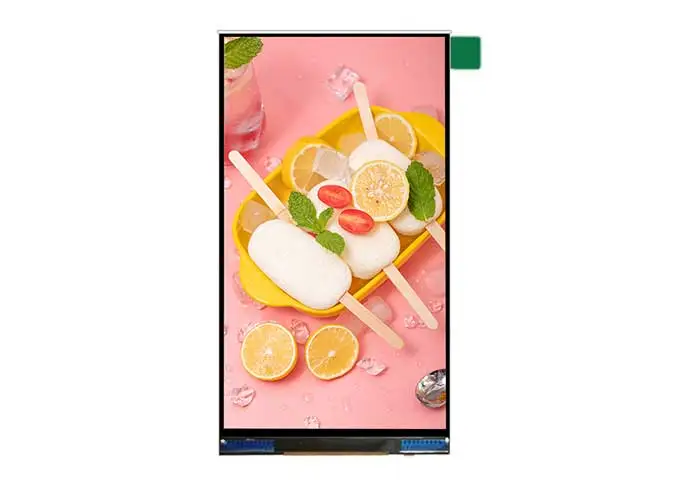

Z45059 LCD personalizado de fábrica de 4,5 polegadas 480*854 tela dispaly IC JD9161Z interface MIPI

  • Tamanho: tela LCD de 4,5 polegadas

  • Resolução: 480*854

  • Área ativa: 55,44*98,64mm

  • Interface: MIPI

  • Ângulo de visão: IPS

  • Brilho: 400 cd/m²

  • Painel de toque: Suporte CTP/RTP

  • Tipo de Fornecimento: Fábrica/Fabricante

  • Certificação: ISO9001, IATF16949, ROHS, REACH

4.5 inch lcd display
4.5 inch lcd display
4.5 inch display
4.5 inch lcd screen
4.5

Visão geral da tela dispaly de 4,5 polegadas 480*854 Z45059

1

Z45059 é um transistor de filme fino de matriz de cor ativa (TFT) display de cristal líquido (LCD) com resolução de 480*854. A técnica IPS (In-plane Switching) faz com que esta tela LCD de 4,5 polegadas tenha um ângulo de visão mais amplo. Este display LCD de 20 pinos é integrado JD9161Z driver IC. Este módulo a-Si TFT LCD vem com interface RGB, brilho de 400 cd/m².

2

Se você tem requisitos especiais, como interface de unidade IC, FPC, painel de toque, luz de fundo, etc, oFabricante de display LCD personalizadoTambém pode personalizar para você.

3

Nossa fábrica realiza o sistema padrão de qualidade ISO 9001: 2015 e IATF16949: 2016 estritamente, todo oAtacado display LCDMódulo passado ROHS, certificação REACH.

4

A tela LCD de 4,5 polegadas é amplamente utilizada em campainha visual, carteira E, POS, jogador de jogos, instrumento cosmético, aparelho doméstico, scanner QRcode, temperatura infravermelha, tradutor, casa inteligente, indústria handheld, ao ar livre, HMI, etc.

Specifications of LCD Factory Custom 4.5 Inch 480*854 Display Screen IC JD9161Z MIPI Interface


Item

Main Display

Unit

Number of Pixels

480 * RGB * 854

Pixel

LCM Outline Dimension

58.75 (W) * 107.40 (H) * 1.89 (T)

mm

LCD Outline Dimension

57.84 (W) * 105.39 (H) * 0.5 (T)

mm

Active Area

55.44 * 98.64

mm

Pixel Pitch

0.1155 * 0.1155

mm

Display Mode

Normal Black


Pixel Arrangement

R.G.B Vertical Stripe


Viewing Direction

Free


Color Configuration

RGB


LCD Transmittance

4.25% (TYP)


LCD Contrast Ratio

Typ: 1000; Min: 800


FPC Version

Z45059-SP45F-M V1


Interface

MIPI


Operating Temperature

-20℃ ~ 70℃


Storage Temperature

-30℃ ~ 80℃


Backlight arrangement

LED / 2 parallel 5 series


Luminance

-


Weight

-



LCM-Pin Assignments of LCD Factory Custom 4.5 Inch 480*854 Display Screen IC JD9161Z MIPI Interface


PIN

PIN DEF.

FUNCTION DESC.

1

NC

NC

2

VDD

POWER SUPPLY(2.8V)

3

VDD

POWER SUPPLY(2.8V)

4

IOVCC

I/O  POWER SUPPLY(1.8V)

5

RESET

RESET PIN(1.8V)

6

GND

Ground

7

D0N

MIPI-DSI Data differential signal input pins. (Data lane 0)

8

D0P

MIPI-DSI Data differential signal input pins. (Data lane 0)

9

GND

Ground

10

D1N

MIPI-DSI Data differential signal input pins. (Data lane 1)

11

D1P

MIPI-DSI Data differential signal input pins. (Data lane 1)

12

GND

Ground

13

CLKN

MIPI-DSI CLOCK differential signal input pin

14

CLKP

MIPI-DSI CLOCK differential signal input pin

15

GND

Ground

16

GND

Ground

17

LED-K

POWER SUPPLY- FOR BACKLIGHT CATHODE

18

LED-K

POWER SUPPLY- FOR BACKLIGHT CATHODE

19

LED-A

POWER SUPPLY+ FOR BACKLIGHT

20

LED-A

POWER SUPPLY+ FOR BACKLIGHT

21

NC

NC

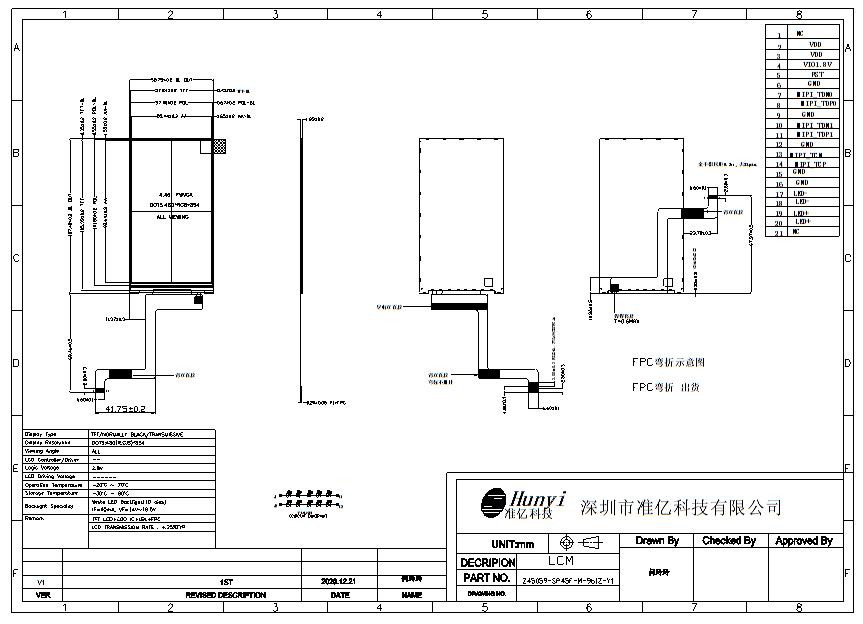

Mechanical Drawing of LCD Factory Custom 4.5 Inch 480*854 Display Screen IC JD9161Z MIPI Interface
