Z43018 tela LCD IPS de 4,3 polegadas 480*272 40PIN RGN Interface SC7283 driver IC

  • Tamanho: 4.3 polegadas

  • Resolução: 480*272

  • Área ativa: 95.04*53.86mm

  • Interface: RGB

  • Ângulo de visão: IPS

  • Brilho: 500 cd/m²

  • Painel de toque: Suporte CTP/RTP

  • Tipo de Fornecimento: Fábrica/Fabricante

  • Certificação: ISO9001, IATF16949, ROHS, REACH

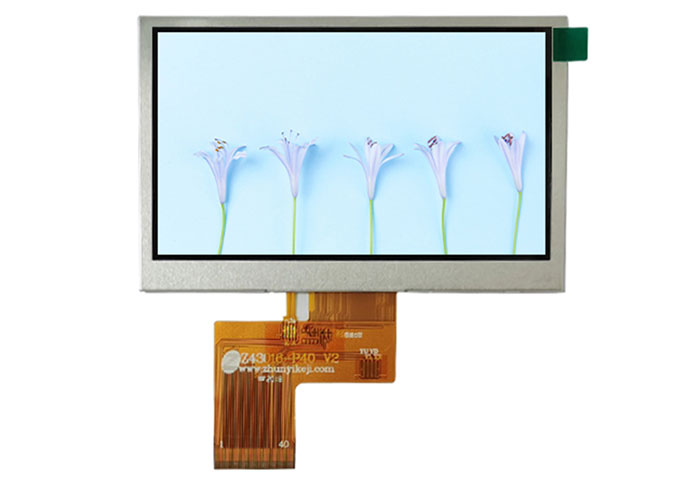

tft lcd module
tft lcd module

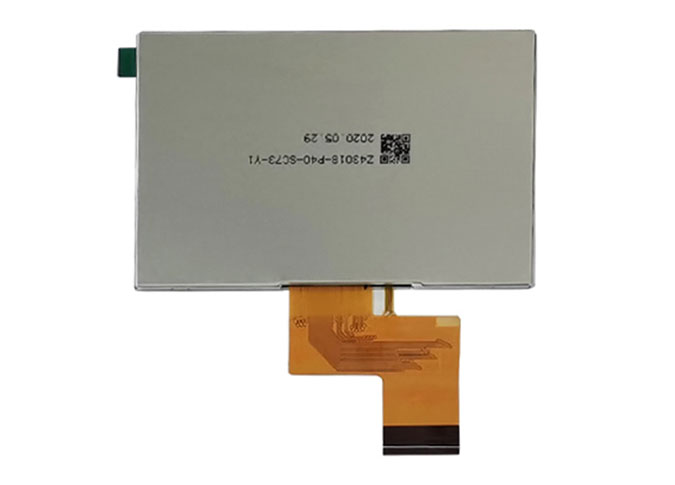

display lcd tft

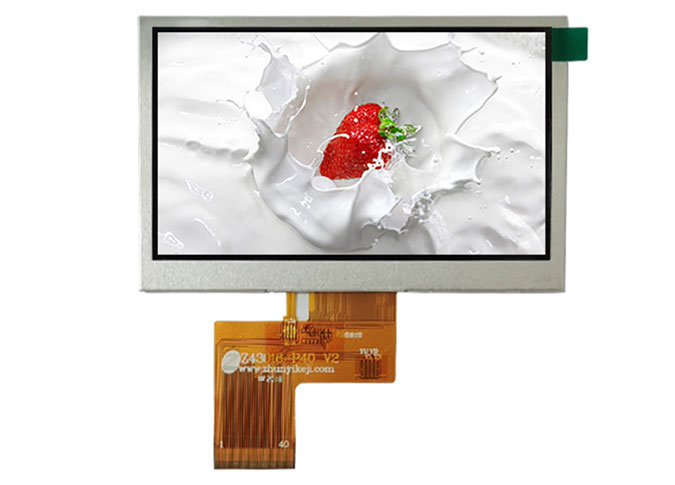

display tft lcd

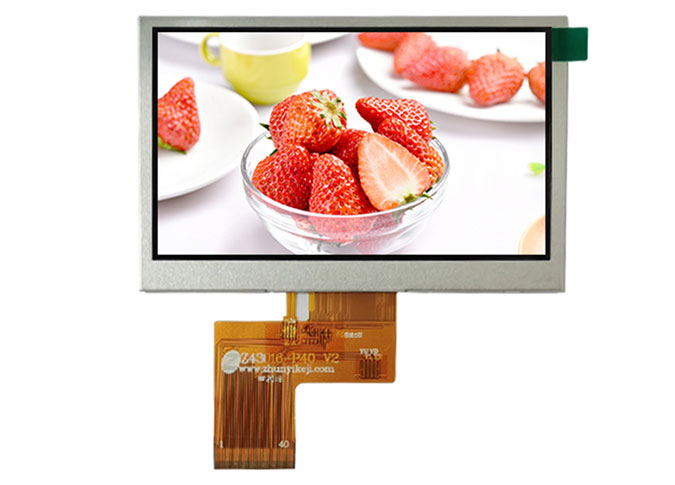

tft lcd display

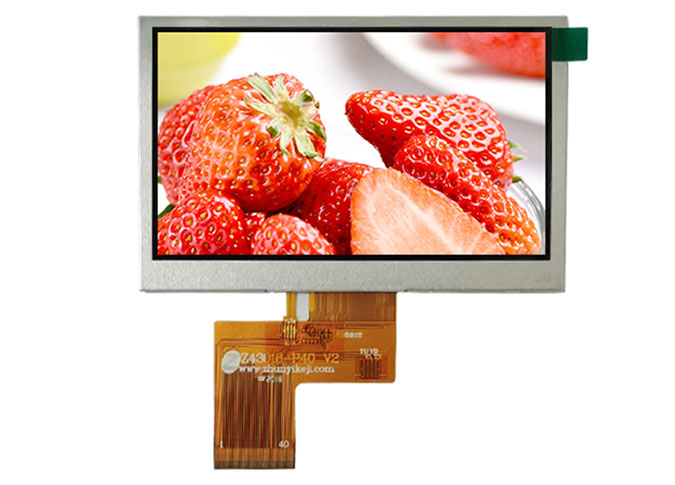

tft lcd display module

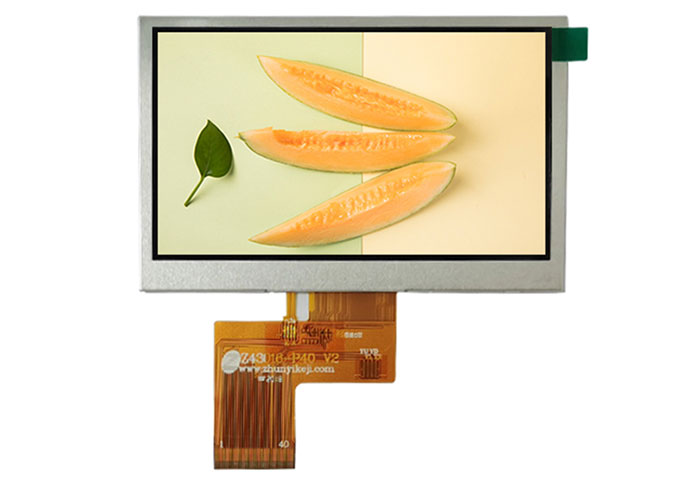

lcd display panel material

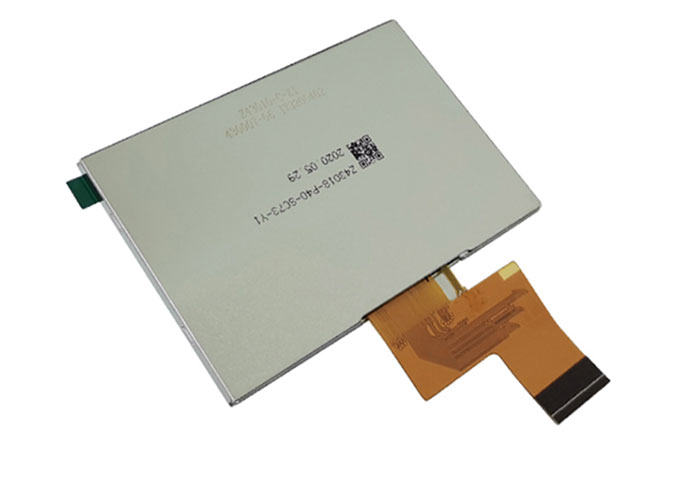

tft lcd screen
tft lcd panel

Visão geral do display LCD IPS de 4,3 polegadas Z43018 480*272 40PIN RGN Interface SC7283 driver IC

1

Z43018 é um transistor de filme fino de matriz de cor ativa (TFT) display de cristal líquido (LCD) com resolução de 480*272. A técnica IPS (In-plane Switching) faz com que este módulo LCD de 4,3 "tenha um ângulo de visão mais amplo. Este LCDDisplay TFT quadradoÉ driver de SC7283-G4 embutido IC. Este módulo a-Si TFT LCD vem com interface RGB, brilho de 500 cd/m².

2

Se você tem requisitos especiais, como interface de unidade IC, FPC, painel de toque, luz de fundo, etc, como umFabricante de LCD personalizado, Nós também podemos personalizar para você.

3

Como umFabricante de painel LCD quadrado, Nossa fábrica realiza o sistema padrão de qualidade ISO 9001: 2015 e IATF16949: 2016 estritamente, todo o display LCD passou ROHS, certificação REACH.

4

A tela LCD horizontal de 4,3 polegadas é amplamente utilizada em campainha visual, carteira E, POS, jogador de jogos, instrumento cosmético, aparelho doméstico, scanner QRcode, casa inteligente, portátil industrial, ao ar livre, HMI, E-bike, veículo elétrico, painel de instrumentos, velocímetro, etc.

Specifications of 4.3 Inch IPS LCD Display 480*272 40PIN RGN Interface SC7283 Driver IC


No.

Item

Specification

Unit

1

Display Size (Diagonal)

4.3

inch

2

Display Resolution

480 (H) × RGB × 272 (V)

pixels

3

Pixel Pitch

198 (H) × 198 (V)

um

4

LCM Outline Dimension

(Without FPC)

105.46 (W) × 67.16 (H) ×2.75 (T)

mm

5

LCD Outline Dimension

100.16 (W) × 61.86 (H) × 0.8 (T)

mm

6

LCD Active Area

95.04 (W) × 53.86 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

SC7283-G4

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 6.9% Min: 6.2%

-

13

LCD Contrast Ratio

Typ.: 800 Min: 640

-

14

FPC Version

Z43016-P40 V3

-

15

Interface

RGB

-

16

Operating Temperature

-30°C~ 85°C

-

17

Storage Temperature

-30°C~ 85°C

-

18

Backlight Arrangement

LED/5 Series 2 Parallel (10 lights in total)

-

19

Luminance

TBD

nit

20

Weight

TBD

kg


Interface Definition Description of 4.3 Inch IPS LCD Display 480*272 40PIN RGN Interface SC7283 Driver IC


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

GND

Ground

4

VDD

POWER SUPPLY (2.8V/3.3V)

5-12

R0-R7

DATA BUS

13-20

G0-G7

DATA BUS

21-28

B0-B7

DATA BUS

29

GND

Ground

30

CLK

Pixel clock signal in RGB I/F

31

DISP

Display on/off

32

HSYNC

Horizontal sync. Signal in RGB I/F.

33

VSYNC

Vertical sync. Signal in RGB I/F.

34

DEN

Data enable signal in RGB I/F DE mode.

35

NC

No Connection

36

GND

Ground

37

XR/NC

XR PIN/No Connection

38

YD/NC

YD PIN/No Connection

39

XL/NC

XL PIN/No Connection

40

YU/NC

YU PIN/No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


Mechanical Drawing of 4.3 Inch IPS LCD Display 480*272 40PIN RGN Interface SC7283 Driver IC


Mechanical Drawing of 4.3 Inch IPS LCD Display 480*272 40PIN RGN Interface SC7283 Driver IC
