Z40050 4 polegadas Módulo LCD Quadrado 720x720 MIPI Interface JD9365DA Controlador

  • Tamanho: 4"

  • Resolução: 720x720

  • Interface LCD: MIPI

  • Motorista IC:JD9365DA

  • Ângulo de visão: IPS

  • Tipo de Fornecimento: Fábrica/Fabricante

  • Certificação: ISO9001,IATF16949,ROHS,REACH

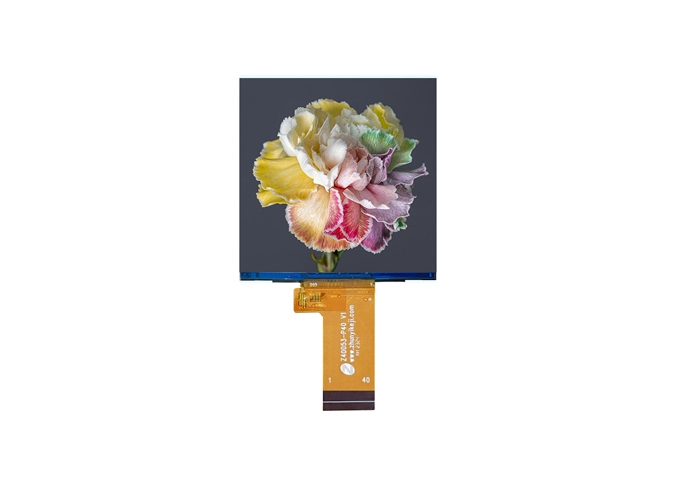

square tft lcd panel
square tft lcd panel
square tft lcd module
square tft display panel

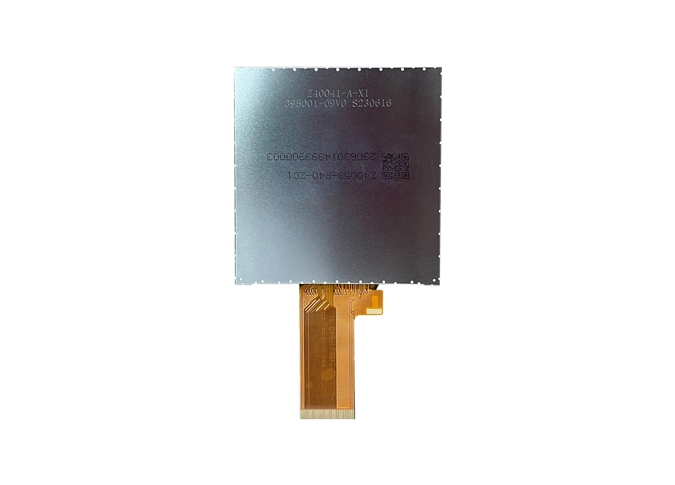

square tft display module

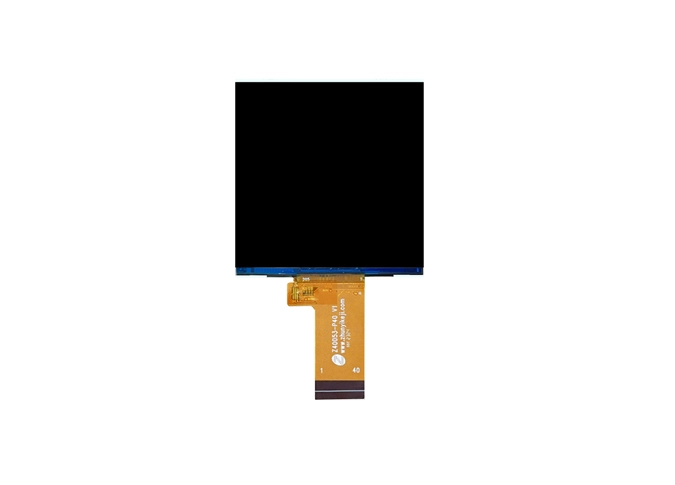

square tft panel

Visão geral do módulo LCD quadrado de 4 polegadas Z40050 720x720 MIPI Interface JD9365DA Controlador

1

Z40050 é uma tela de cristal líquido (LCD) de transistor de película fina de matriz ativa colorida (TFT) com resolução de 720x720. A técnica IPS(In-plane Switching) faz com que este módulo LCD de 4 "tenha um ângulo de visão mais amplo. Este LCD TFT a-Si vem com interface MIPI. O driver JD9365DA integrado de exibição IC.

2

Se você tem requisitos especiais, como driver IC,interface,FPC, painel de toque, luz de fundo etc, também podemos personalizar para você.

3

Nossa fábrica realiza o sistema padrão de qualidade ISO 9001:2015 e IATF16949: 2016 estritamente, todo o display lcd passou ROHS, certificação REACH.

4

A tela quadrada de 4 "é amplamente utilizada em jogos, câmera digital, smartwatch, pinter, carro, projetor, equipamentos médicos, robótica, ATM, termostatos, IA, comercial, consumidor etc.

General Specifications Z40050 4 inch Square LCD Module 720x720 MIPI Interface JD9365DA Controller


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.95

inch

2

Display Resolution

720(H) × RGB × 720(V)

pixels

3

Pixel Pitch

146.2(H)× 146.2(V)

um

4

CTP Outline Dimension

(Without FPC)

/

mm

5

LCD Outline Dimension

72.926 (W) × 78.0219 (H) × 0.8 (T)

mm

6

LCD Active Area

71.928(W) ×71.928(H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9365DA-H3

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.8%

-

13

LCD Contrast Ratio

Typ.: 1200  Min:900

-

14

FPC Version

Z40050-P40 V1

-

15

Interface

MIPI

-

16

Operating Temperature

-30°C~ 80°C

-

17

Storage Temperature

-30°C~ 85°C

-

18

Backlight Arrangement

LED/8 Series 1 Parallel (8 lights in total)

-

19

Luminance

Typ.:250

nit

20

Weight

0.052

kg



Interface Definition Description Z40050 4 inch Square LCD Module 720x720 MIPI Interface JD9365DA Controller


PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3-8

NC

No Connection

9-10

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

11

GND

Ground

12-15

NC

No Connection

16

GND

Ground

17-18

NC

No Connection

19

GND

Ground

20

D0P

Positive MIPI differential data input

21

D0N

Negative MIPI differential data input

22

GND

Ground

23

D1P

Positive MIPI differential data input

24

D1N

Negative MIPI differential data input

25

GND

Ground

26

CLKP

Positive MIPI differential CLOCK input

27

CLKN

Negative MIPI differential CLOCK input

28

GND

Ground

29

D2P

Positive MIPI differential data input

30

D2N

Negative MIPI differential data input

31

GND

Ground

32

D3P

Positive MIPI differential data input

33

D3N

Negative MIPI differential data input

34

GND

Ground

35

NC

No Connection

36

RESET

LCM  RESET  PIN

37

NC

No Connection

38

VDD

POWER SUPPLY(3.3V)

39

VDDI

I/O  POWER SUPPLY(1.8V)

40

NC

No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
