Z37001 3.71 polegadas 240*960 display LCD IPS View 45PIN SPI Interface RGB ST7701S Controlador

  • Tamanho: 3.71 polegadas

  • Resolução: 240*960

  • Interface: SPI RGB

  • Ângulo de visão: IPS

  • Brilho: 300 cd/m²

  • Painel de toque: Suporte CTP/RTP

  • Tipo de Fornecimento: Fábrica/Fabricante

  • Certificação: ISO9001, IATF16949, ROHS, REACH

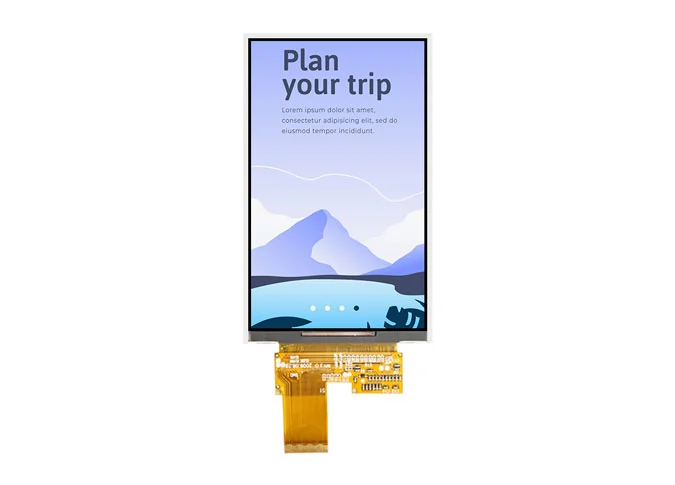

3.71

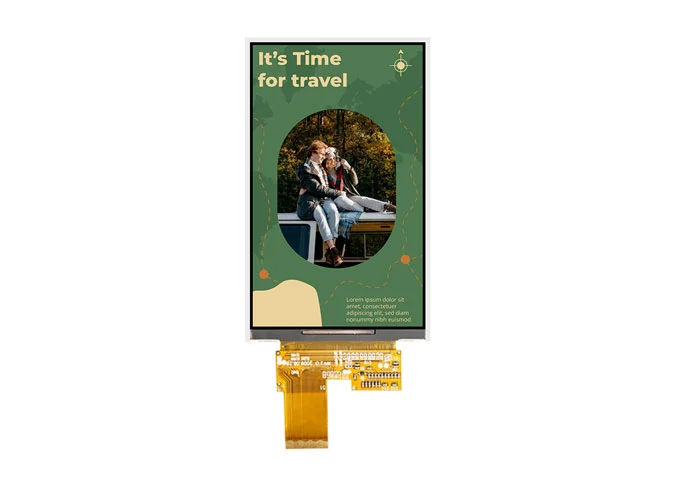

3.71

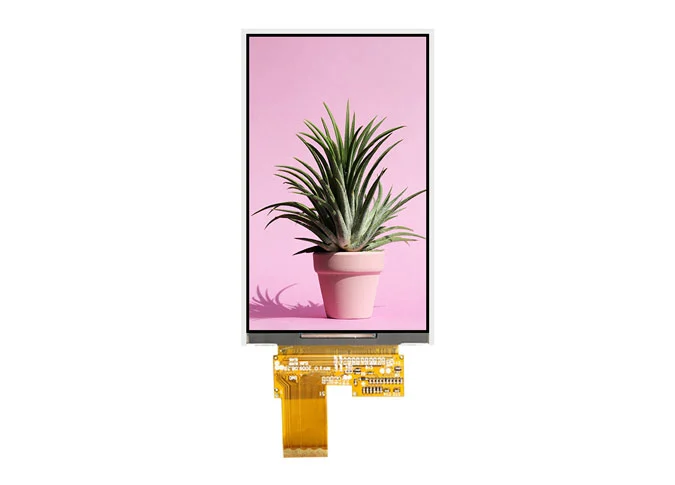

3.71
3.71
3.71

Visão geral do Z37001 3.71 polegadas 240*960 display LCD IPS View 45PIN SPI Interface RGB ST7701S Controlador

1

Z37001 é um transistor de filme fino de matriz de cor ativa (TFT) display de cristal líquido (LCD) com resolução de 240*960. A técnica IPS (In-plane Switching) faz com que este módulo LCD de 3,71 "tenha um ângulo de visão mais amplo. Este display LCD é embutido ST7701S-G5 driver IC. Este a-Si TFT LCDMódulo amoledVem com interface RGB SPI, brilho de 300 cd/m².

2

Se você tem requisitos especiais, como interface de unidade IC, FPC, painel de toque, luz de fundo, etc, nós podemos fornecerMódulo LCD personalizadoPara você.

3

Como um dos profissionaisChina LCD fabricantes, Nossa fábrica realiza o sistema padrão de qualidade ISO 9001: 2015 e IATF16949: 2016 estritamente, todo o display LCD passou ROHS, certificação REACH.

4

A tela LCD de estilo bar de 3,71 polegadas é amplamente utilizada na indústria, HMI, avião, painel de veículos, hom inteligente etc.

Specifications of 3.71 Inch 240*960 LCD Display IPS View 45PIN SPI+RGB Interface ST7701S Controller


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.71

inch

2

Display Resolution

240 (H) × RGB × 960 (V)

pixels

3

Pixel Pitch

0.09525 (H) × 0.09525 (V)

Mm

4

LCM Outline Dimension

(Without FPC)

25.3 (W) × 98.89 (H) × 1.61 (T)

mm

5

LCD Outline Dimension

-

mm

6

LCD Active Area

22.86 (W) × 91.44 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701S

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

-

-

13

LCD Contrast Ratio

-

-

14

FPC Version

Z37001-P45H V1

-

15

Interface

3SPI+16 bits RGB Interface

-

16

Operating Temperature

-20°C~ 60°C

-

17

Storage Temperature

-30°C~ 70°C

-

18

Backlight Arrangement

White LED 4

-

19

Luminance

TBD

nit

20

Weight

-

kg


Interface Definition Description of 3.71 Inch 240*960 LCD Display IPS View 45PIN SPI+RGB Interface ST7701S Controller


Pin No.

Symbol

LCM Functional

1~2

LEDA

Power supply for backlight anode input terminal.

3~5

LEDK

Power supply for backlight cathode input terminal.

6~7

GND

Power Ground

8~9

VCC

Power supply: 2.6V ~ 3.3V

10

RESET

Reset signal input terminal. Active at 'L'.

11

NC

NC

12

SDA

Input/Output signal pin

13

SCL

Serial interface clock

14

CS

Chip select signal input pin

15

DCLK

Dot clock signal for RGB interface operation.

16

DE

Data enable signal for RGB interface operation.

17

VSYNC

Vertical (Frame) synchronizing input signal for RGB interface operation.

18

HSYNC

Horizontal (Line) synchronizing input signal for RGB interface


19~34


DB0~DB15

RGB interface data bus.

DB(0~4): B0~B4, DB(5~10): G0~G5, DB(11~15): R0~R4

35~37

GND

Power Ground

38

CTP_INT3.3V

Touch panel interrupt output

39

CTP_SDA3.3V

Touch panel I2C data

40

CTP_SCL3.3V

Touch panel I2C clock

41

CTP_RST3.3V

Touch panel reset

42~43

CTP_VDD3.3V

Touch panel Power supply 2.8~3.3V

44~45

CTP_GND

Power Ground

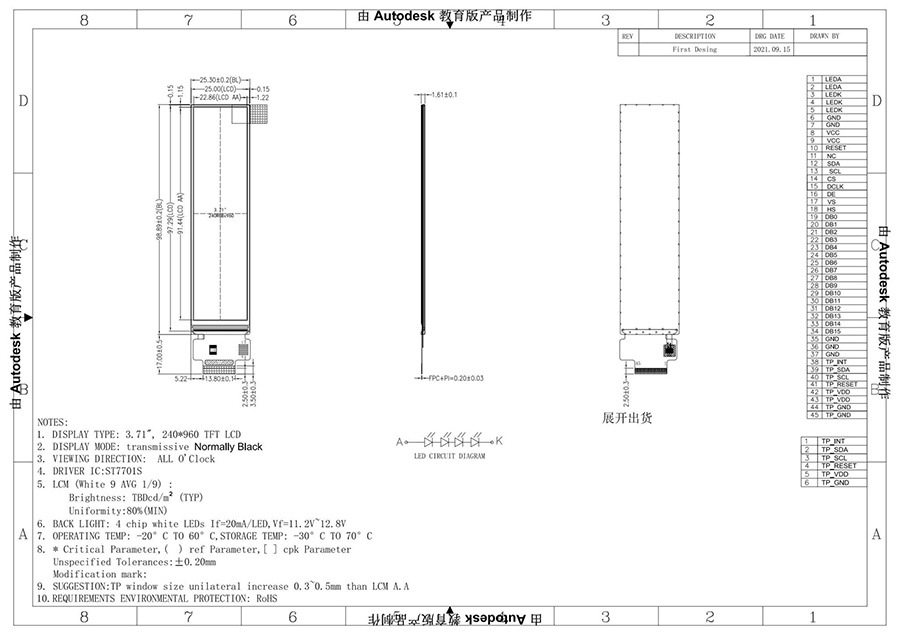

Mechanical Drawing of 3.71 Inch 240*960 LCD Display IPS View 45PIN SPI+RGB Interface ST7701S Controller


Mechanical Drawing of 3.71 Inch 240*960 LCD Display IPS View 45PIN SPI+RGB Interface ST7701S Controller
