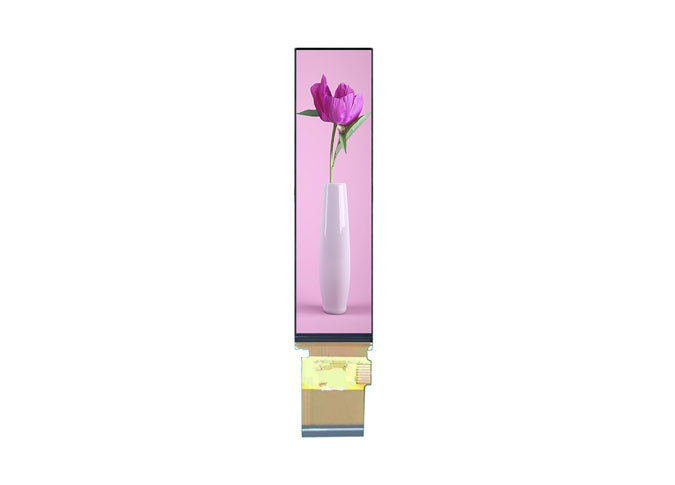

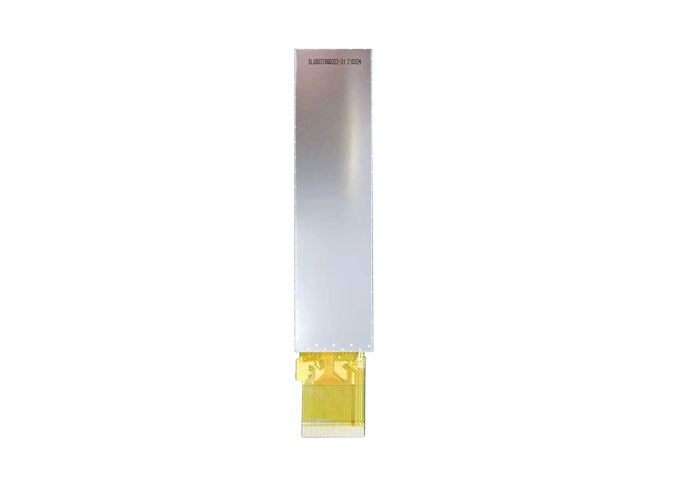

Z37001 3.7 polegadas 240*960 LCD barra de exibição estilo ST7701S IC SPI Interface RGB

1

Display Size (Diagonal)

3.71

inch

2

Display Resolution

240 (H) × RGB × 960 (V)

pixels

3

Pixel Pitch

0.09525 (H) × 0.09525 (V)

Mm

4

LCM Outline Dimension

(Without FPC）

25.3 (W) ×98.89 (H) ×1.61 (T)

mm

5

LCD Outline Dimension

-

mm

6

LCD Active Area

22.86 (W) × 91.44 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701S

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

-

-

13

LCD Contrast Ratio

-

-

14

FPC Version

Z37001-P45H V1

-

15

Interface

3SPI+16 bits RGB Interface

-

16

Operating Temperature

-20°C~ 60°C

-

17

Storage Temperature

-30°C~ 70°C

-

18

Backlight Arrangement

White LED 4

-

19

Luminance

TBD

nit

20

Weight

-

kg

1~2

LEDA

Power supply for backlight anode input terminal.

3~5

LEDK

Power supply for backlight cathode input terminal.

6~7

GND

Power Ground

8~9

VCC

Power supply: 2.6V ~ 3.3V

10

RESET

Reset signal input terminal. Active at 'L'.

11

NC

NC

12

SDA

Input/Output signal pin

13

SCL

Serial interface clock

14

CS

Chip select signal input pin

15

DCLK

Dot clock signal for RGB interface operation.

16

DE

Data enable signal for RGB interface operation.

17

VSYNC

Vertical (Frame) synchronizing input signal for RGB interface operation.

18

HSYNC

Horizontal (Line) synchronizing input signal for RGB interface

19~34

DB0~DB15

RGB interface data bus.

DB(0~4): B0~B4, DB(5~10): G0~G5, DB(11~15): R0~R4

35~37

GND

Power Ground

38

CTP_INT3.3V

Touch panel interrupt output

39

CTP_SDA3.3V

Touch panel I2C data

40

CTP_SCL3.3V

Touch panel I2C clock

41

CTP_RST3.3V

Touch panel reset

42~43

CTP_VDD3.3V

Touch panel Power supply 2.8~3.3V

44~45

CTP_GND

Power Ground
