Z35013 Módulo LCD personalizado de 3,5 polegadas 320*240 ILI9488 Controlador de Interface MIPI

  • Tamanho: 3.5 polegadas

  • Resolução: 320*480

  • Interface: MIPI

  • Ângulo de visão: IPS

  • Brilho: 350 cd/m²

  • Painel de toque: Suporte CTP/RTP

  • Tipo de Fornecimento: Fábrica/Fabricante

  • Certificação: ISO9001, IATF16949, ROHS, REACH

ili9488 display
ili9488 display
ili9488 lcd
ili9488 vs ili9341
3.5 inch lcd module
3.5
ili9488 display wholesale
ili9488 lcd wholesale
ili9488 vs ili9341 bulk
3.5 inch lcd module wholesale
3.5
ili9488 display manufacturer
ili9488 lcd manufacturer
ili9488 vs ili9341 manufacturer
3.5
3.5 inch lcd module manfacturer
ili9488 display bulk
ili9488 lcd bulk
ili9488 vs ili9341 wholesale
3.5 inch lcd module bulk
3.5
ili9488 display company
3.5 inch lcd module company
ili9488 vs ili9341 company

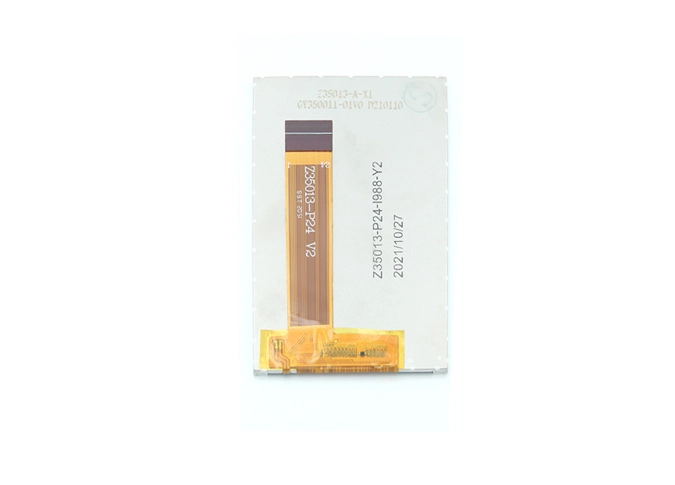

ili9488 lcd company
3.5

Visão geral do módulo LCD personalizado Z35013 3.5 polegadas 320*240 ILI9488 controlador de interface MIPI

1

Z35013 é uma tela de cristal líquido (LCD) de transistor de película fina de matriz ativa colorida (TFT) com resolução de 320*480. A técnica IPS (In-plane Switching) faz com que este módulo LCD de 3,5 "tenha um ângulo de visão mais amplo. EsteTela de exibição LCD chinêsÉ o driver ILI9488 integrado IC. Este módulo a-Si TFT LCD vem com interface MIPI, brilho de 350 cd/m².

2

Se você tem requisitos especiais, como interface de unidade IC, FPC, painel de toque, luz de fundo, etc, nós podemos fornecerChina display LCD personalizadoPara você.

3

Como umFábrica de tela LCD quadrada, Nossa fábrica realiza o sistema padrão de qualidade ISO 9001: 2015 e IATF16949: 2016 estritamente, todo o display LCD passou ROHS, certificação REACH.

4

A tela LCD de 3,5 polegadas é inteligente, painel veio, POS, jogador de jogos, instrumento cosmético, aparelho doméstico, scanner QRcode, temperatura infravermelho, tradutor, leitor de música, casa inteligente, portátil industrial, ao ar livre, etc.

General Specifications of Z35013 Custom LCD Module 3.5 Inch 320*240 ILI9488 Controller MIPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.5

inch

2

Display Resolution

320 (H) × RGB × 240 (V)

pixels

3

Pixel Pitch

73 (H) × 219 (V)

um

4

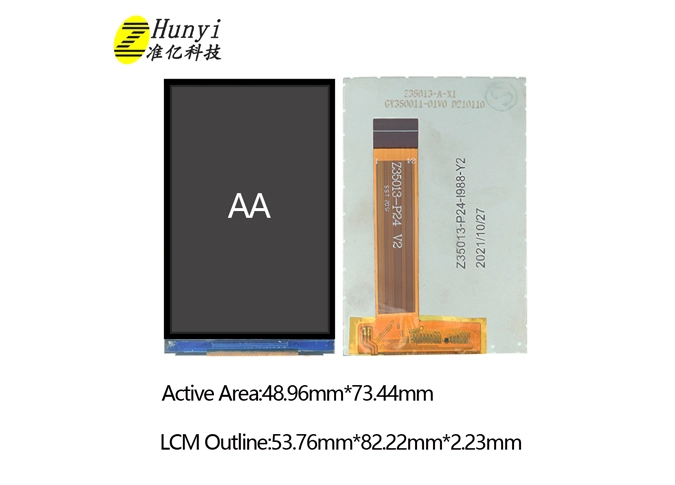

LCM Outline Dimension

(Without FPC)

53.76 (W) × 82.39 (H) × 2.23 (T)

mm

5

LCD Outline Dimension

51.96 (W) × 80.22 (H) × 0.8 (T)

mm

6

LCD Active Area

48.96 (W) × 73.44 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ILI9488

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 6.2% Min: 5.25%

-

13

LCD Contrast Ratio

Typ.: 1200 Min: 900

-

14

FPC Version

Z35013-P24 V2

-

15

Interface

MIPI

-

16

Operating Temperature

-30°C~ 85°C

-

17

Storage Temperature

-30°C~ 85°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

330

nit

20

Weight

0.020

kg


Interface Definition Description of Z35013 Custom LCD Module 3.5 Inch 320*240 ILI9488 Controller MIPI Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1

IM0/NC

LCM IM PIN/No Connection

2

DVDD(2V8)

OWER SUPPLY (2.8V)

3

IOVDD(1V8)

I/O POWER SUPPLY (1.8V)

4

IM1/NC

LCM IM PIN/No Connection

5

RESET

LCM RESET PIN

6

GND

Ground

7-8

NC

No Connection

9

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

10

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

11-12

GND

Ground

13-14

NC

No Connection

15

GND

Ground

16

TDP0

Positive MIPI differential data input

17

TDN0

Negative MIPI differential data input

18

GND

Ground

19

TDP1(NC)

Positive MIPI differential data input/No Connection

20

TDN1(NC)

Negative MIPI differential data input/No Connection

21

GND

Ground

22

TCP

Positive MIPI differential CLOCK input

23

TCN

Negative MIPI differential CLOCK input

24

GND

Ground

RESET voltage should be consistent with IOVDD voltage, or there probably is black screen fault when power on.

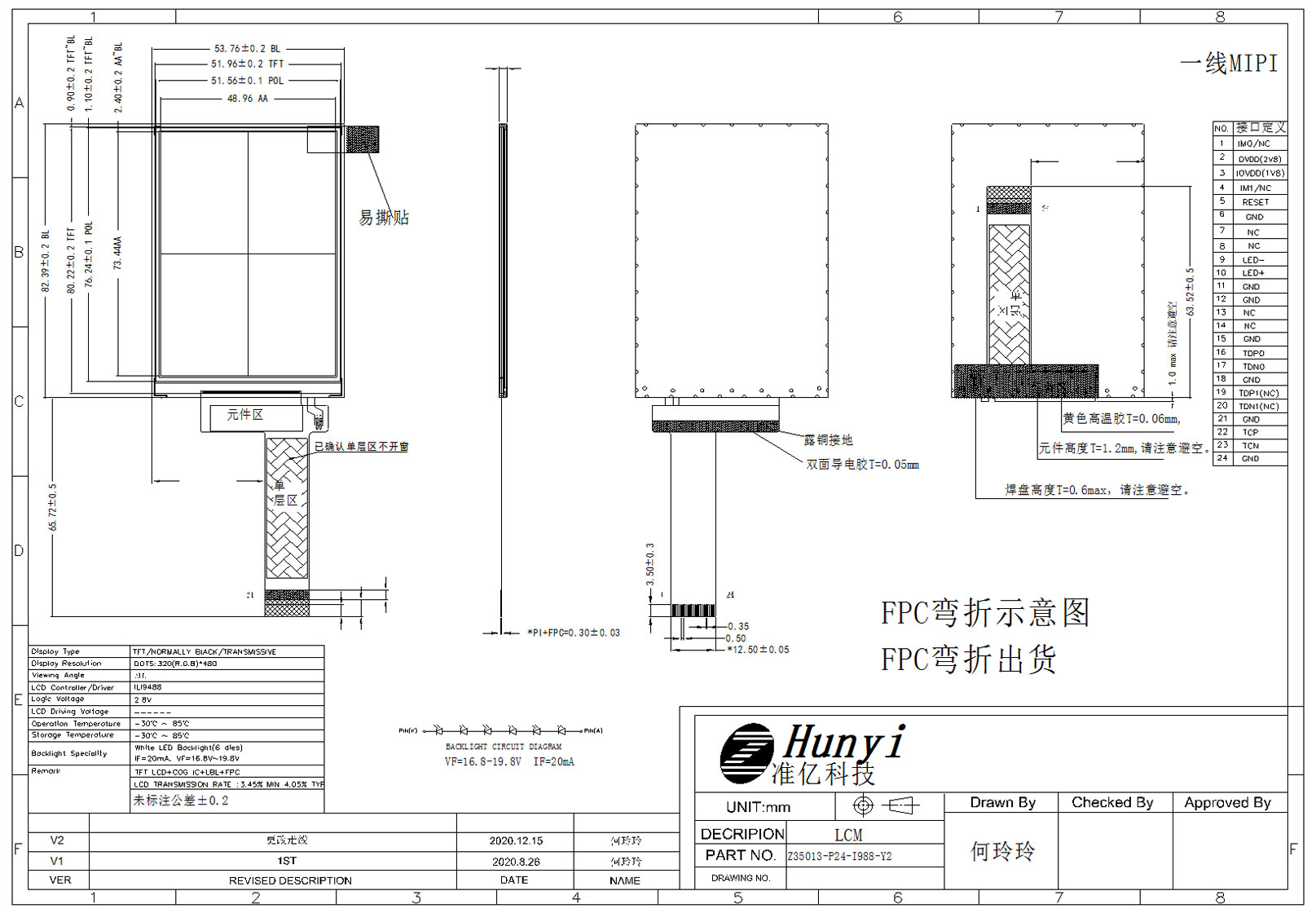

Mechanical Drawing of Z35013 Custom LCD Module 3.5 Inch 320*240 ILI9488 Controller MIPI Interface
