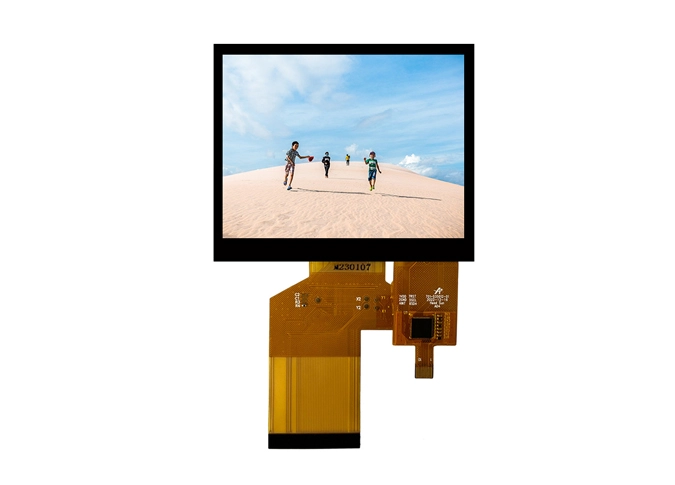

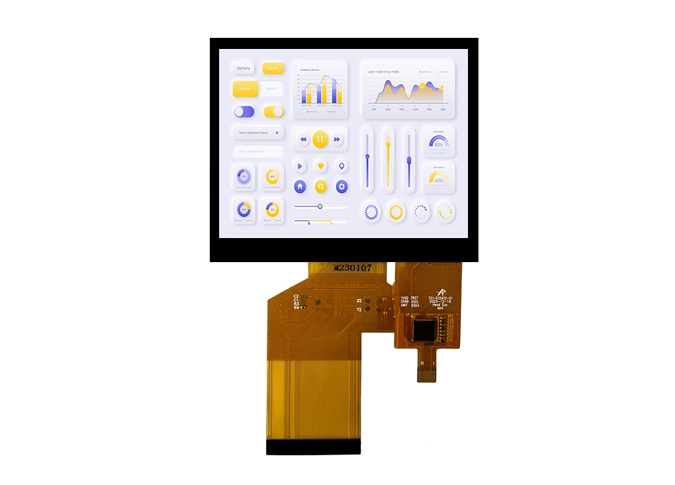

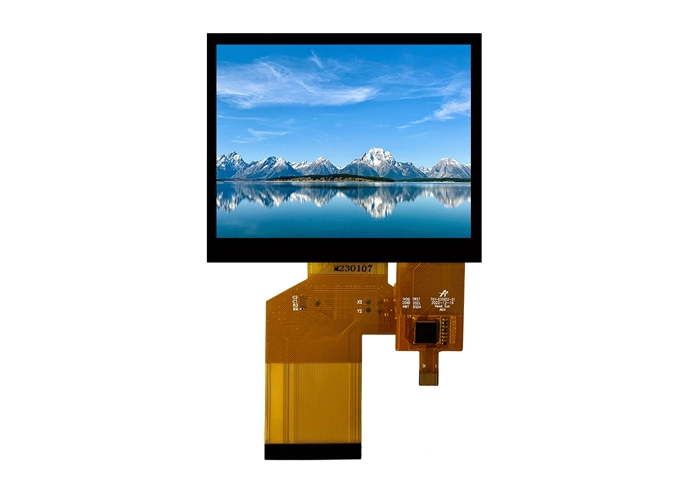

Z35008-ZC de 3,5 polegadas com interface RGB, tela de toque 320*240, módulo de paisagem I2C, conector ST7272A

1

Display Size (Diagonal)

3.5

inch

2

Display Resolution

320(H） × RGB × 240（V）

pixels

3

Pixel Pitch

73(H）× 219（V）

um

4

LCM Outline Dimension

(Without FPC）

76.78 (W) ×63.74 (H) ×3.2 (T)

mm

5

LCD Outline Dimension

75.10 (W) × 60.26 (H) × 0.8 (T)

mm

6

LCD Active Area

70.08（W） ×52.56（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7272A

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 6.2%  Min:5.25%

-

13

LCD Contrast Ratio

Typ.: 1200  Min:900

-

14

FPC Version

Z35008-P54Q V1

-

15

Interface

RGB+SPI

-

16

Operating Temperature

-30°C~ 85°C

-

17

Storage Temperature

-30°C~ 85°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

400

nit

20

Weight

TBD

kg

1-2

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

3-4

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

5-7

NC

No Connection

8

RESET

LCM  RESET  PIN

9

CS

Chip Select input PIN

10

SCL

LCM  SPI  clock (SCL) clock (SCLK)

11

SDI

LCM  SPI  data (SDI) data Input and Output (MOSI)

12-19

B0-B7

DATA  BUS

20-27

G0-G7

DATA  BUS

28-35

R0-R7

DATA  BUS

36

HSYNC

Horizontal sync. Signal in RGB I/F.

37

VSYNC

Vertical sync. Signal in RGB I/F.

38

DOTCLK

Pixel clock signal in RGB I/F

39-40

NC

No Connection

41-42

VCC

POWER SUPPLY(2.8V/3.3V)

43-51

NC

No Connection

52

DEN

Data enable signal in RGB I/F DE mode.

53-54

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
