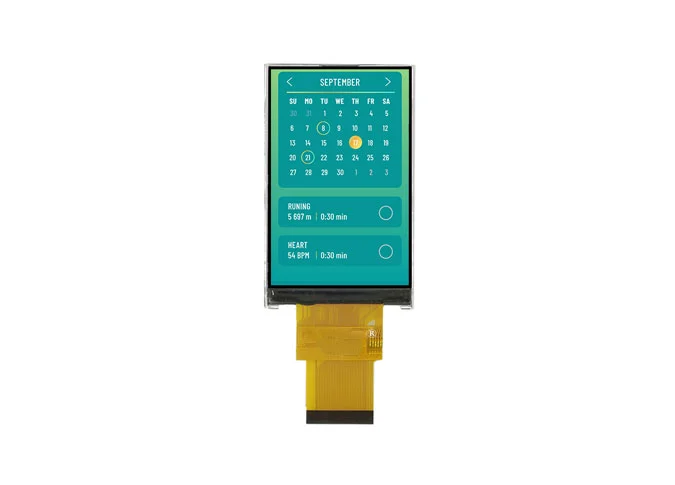

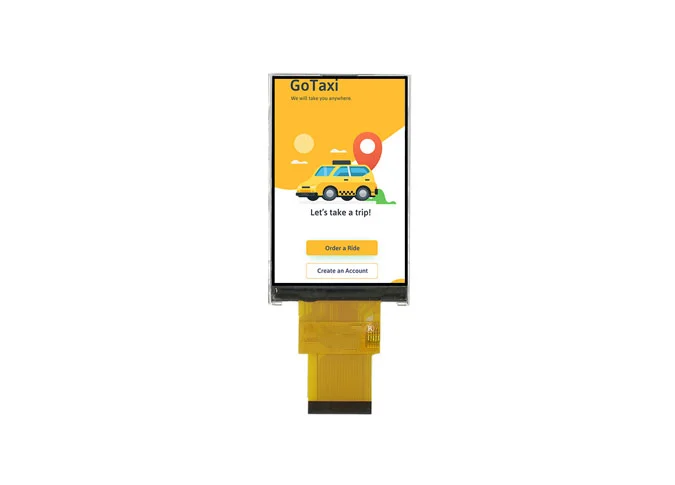

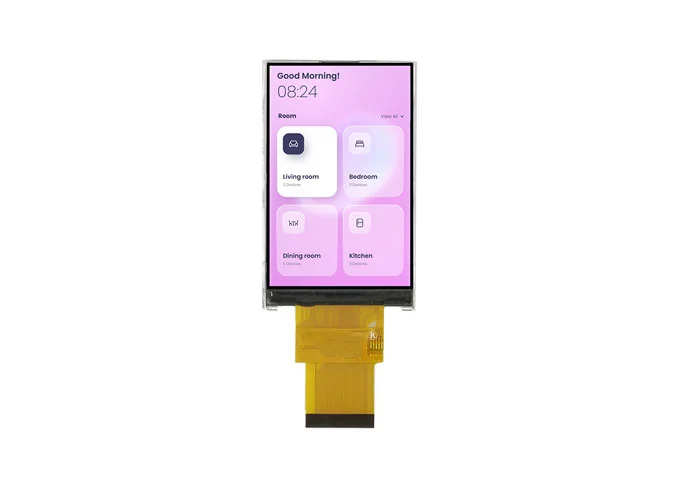

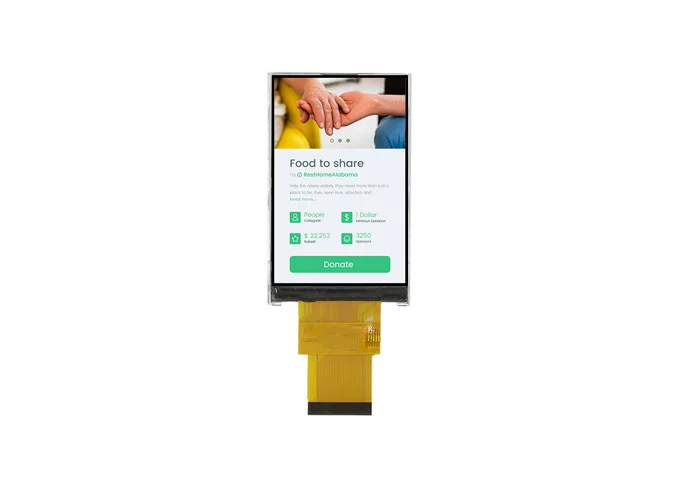

Z30074 Módulo LCD TPS de 3 polegadas 40PIN RGB SPI 480*854 520 Nits ST7701S Driver IC

  • Tamanho: 3 polegadas

  • Resolução: 480*854

  • Interface: MIPI

  • Ângulo de visão: IPS

  • Brilho: 480 cd/m²

  • Painel de toque: Suporte CTP/RTP

  • Tipo de Fornecimento: Fábrica/Fabricante

  • Certificação: ISO9001, IATF16949, ROHS, REACH

3 inch ips lcd module
3 inch ips lcd module
3 ips lcd module
3 inch spi lcd module
3 inch spi lcd

Visão geral do módulo LCD TPS Z30074 de 3 polegadas 40PIN RGB SPI 480*854 520 Nits ST7701S Driver IC

1

Z30074 é um transistor de filme fino de matriz de cor ativa (TFT) display de cristal líquido (LCD) com resolução de 480*854. A técnica IPS (In-plane Switching) faz com que este módulo LCD de 3 "tenha um ângulo de visão mais amplo. Este display LCD é integrado JD9161Z driver IC. Este TFT a-SiLCD quadradoMódulo vem com interface MIPI, brilho 480 cd/m².

2

Se você tem requisitos especiais, como interface de unidade IC, FPC, painel de toque, luz de fundo, etc, como umFornecedor do módulo TFT LCD, Nós também podemos personalizar para você.

3

Como umFornecedor LCD quadrado, Nossa fábrica realiza o sistema padrão de qualidade ISO 9001: 2015 e IATF16949: 2016 estritamente, todo o display LCD passou ROHS, certificação REACH.

4

A tela LCD de 3 polegadas é médica, painel veio, PDV, jogador de jogos, instrumento cosmético, aparelho doméstico, scanner QRcode, tradutor, reprodutor de música, casa inteligente, indústria, etc.

Specifications of 3 Inch TPS LCD Module 40PIN RGB+SPI 480*854 520 Nits ST7701S Driver IC


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.0

inch

2

Display Resolution

480 (H) × RGB × 854 (V)

pixels

3

Pixel Pitch

26 (H) × 78 (V)

um

4

LCM Outline Dimension

(Without FPC)

40.64 (W) × 74.68 (H) × 2.34 (T)

mm

5

LCD Outline Dimension

40.33 (W) × 72.86 (H) × 1.0 (T)

mm

6

LCD Active Area

37.44 (W) × 66.61 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9161Z-JN

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel Driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 3.5% Min: 3.1%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

Z30074-A55LF V1

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

480

nit

20

Weight

0.014

kg


Interface Definition Description of 3 Inch TPS LCD Module 40PIN RGB+SPI 480*854 520 Nits ST7701S Driver IC


PIN NO.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

GND

Ground

3

DISP_D1_N

Negative MIPI differential data input

4

DISP_D1_P

Positive MIPI differential data input

5

DISP_CLK_P

Positive MIPI differential CLOCK input

6

1V8

POWER SUPPLY (1.8V)

7

DISP_CLK_N

Negative MIPI differential CLOCK input

8

DISP_RESET

LCM RESET PIN

9

GND

Ground

10

DISP_TE

Tearing Effect PIN

11

DISP_D0_P

Positive MIPI differential data input

12

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

13

DISP_D0_N

Negative MIPI differential data input

14

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

15

GND

Ground

16

DISP_2V8

POWER SUPPLY(2.8V)

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.

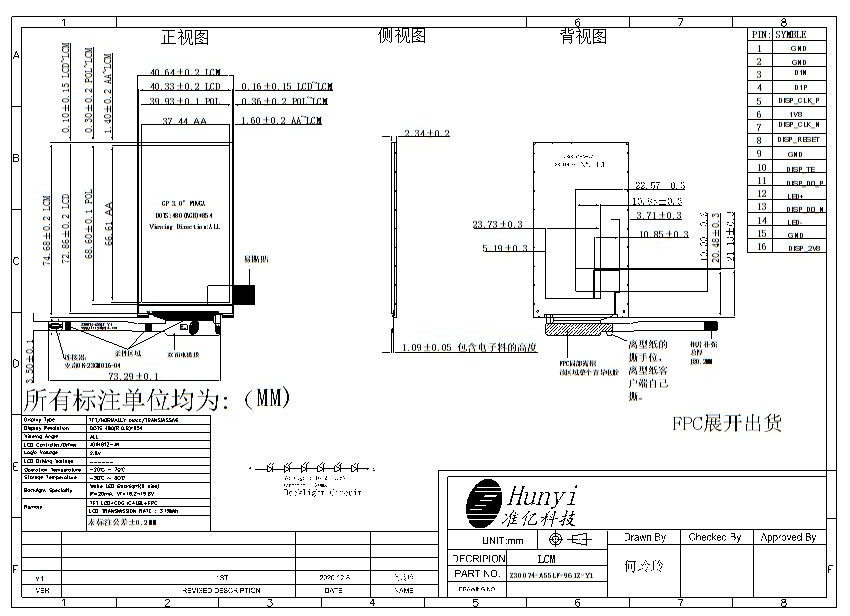

Mechanical Drawing of 3 Inch TPS LCD Module 40PIN RGB+SPI 480*854 520 Nits ST7701S Driver IC


Mechanical Drawing of 3 Inch TPS LCD Module 40PIN RGB+SPI 480*854 520 Nits ST7701S Driver IC
