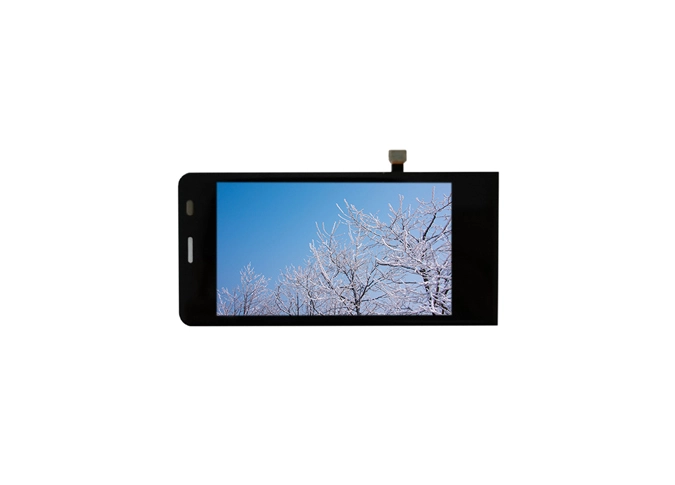

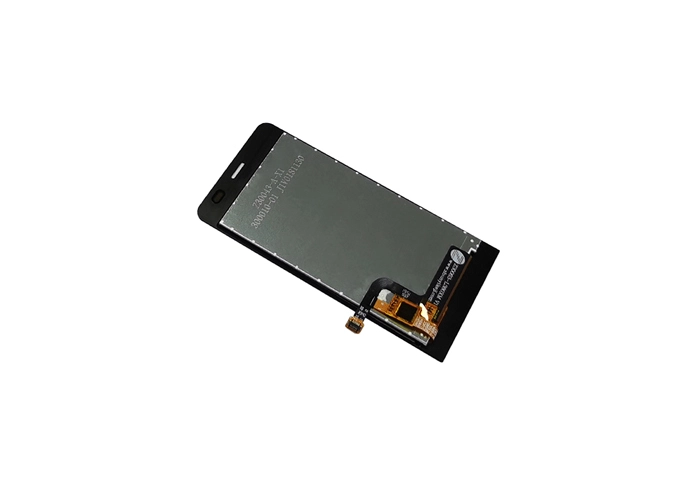

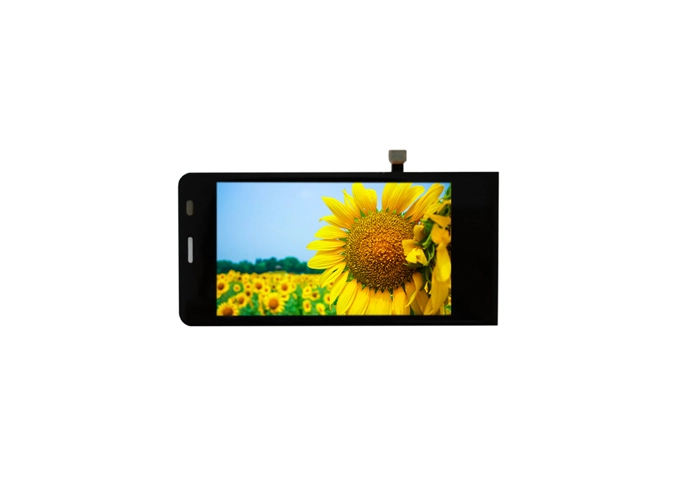

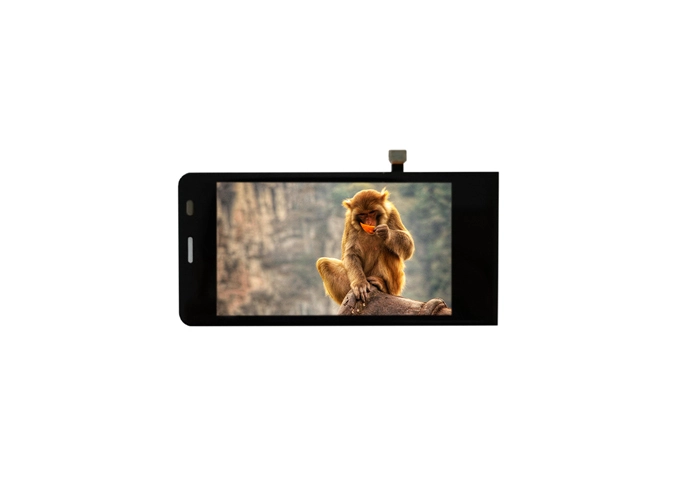

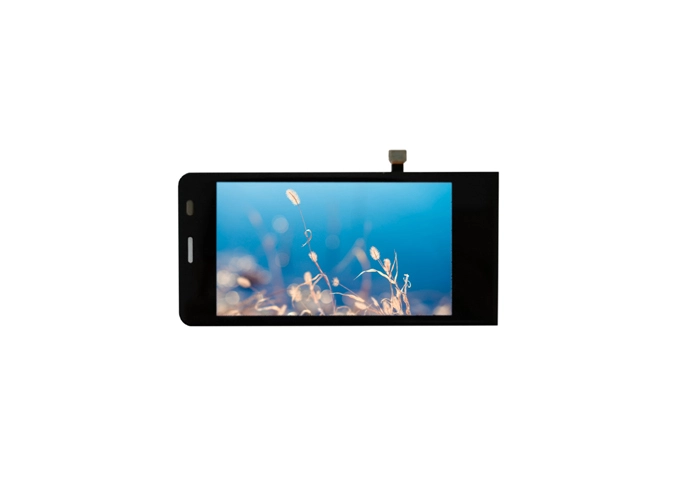

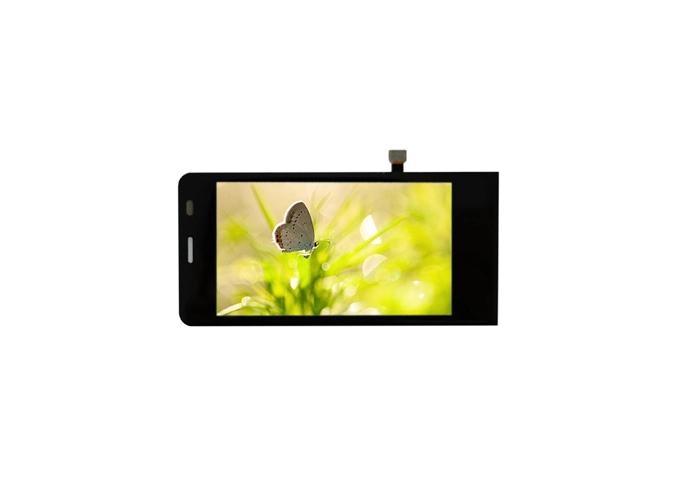

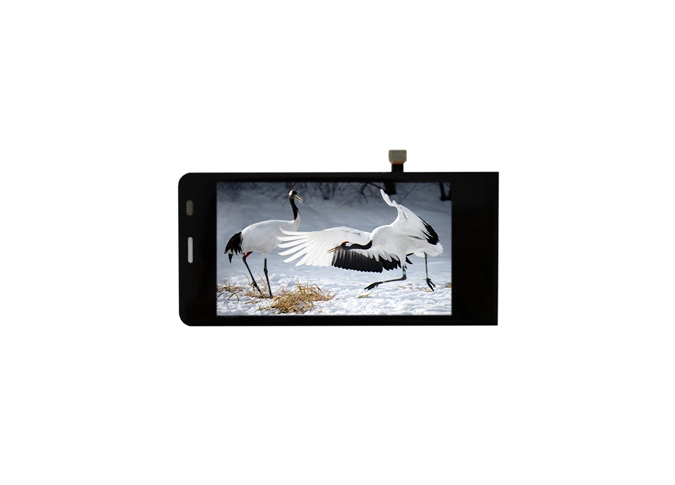

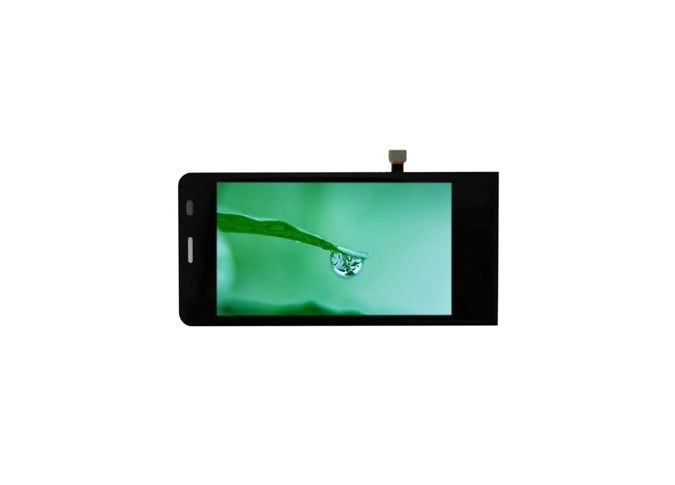

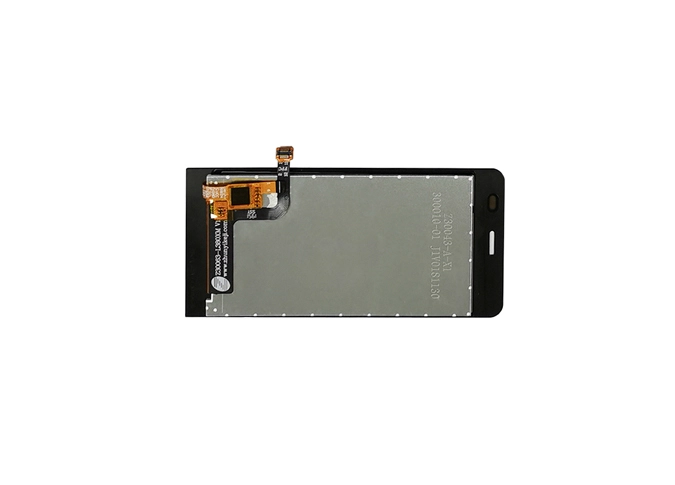

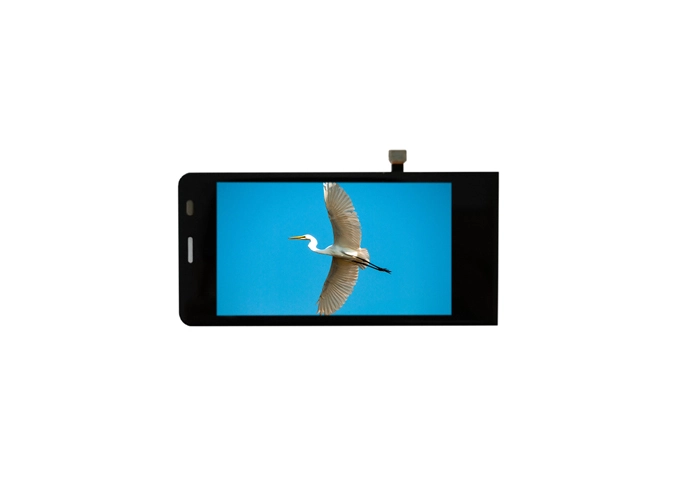

Z30063-ZC de 3,0 polegadas 480*854 tela LCD MIPI I2C Interface com painel de toque capacitivo

1

Display Size (Diagonal)

3.0

inch

2

Display Resolution

480 (H) × RGB × 854 (V)

pixels

3

Pixel Pitch

26 (H) × 78 (V）

um

4

LCM Outline Dimension

(Without FPC）

40.64 (W) ×74.68 (H) ×1.74 (T)

mm

5

LCD Outline Dimension

40.33 (W) × 72.86 (H) × 0.4 (T)

mm

6

TLCM Outline Dimension

(Without FPC）

43.50 (W) × 90.5 (H) × 3.14 (T)

mm

7

LCD Active Area

37.44 (W) × 66.61 (H)

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

ST7701S-G5

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 3.5% Min: 3.1%

-

14

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

15

FPC Version

Z30063-L380XM V1

-

16

Interface

MIPI

-

17

Operating Temperature

-20°C~ 70°C

-

18

Storage Temperature

-30°C~ 80°C

-

19

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

20

Luminance

390

nit

20

Weight

0.019

kg

1

DISP_CLK_P

Positive MIPI differential CLOCK input

2

1V8

I/O POWER SUPPLY (1.8V）

3

DISP_CLK_N

Negative MIPI differential CLOCK input

4

DISP_RESET

LCM RESET PIN

5

GND

Ground

6

DISP_TE

Tearing Effect PIN

7

DISP_D0_P

Positive MIPI differential data input

8

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

9

DISP_D0_N

Negative MIPI differential data input

10

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

11

GND

Ground

12

DISP_2V8

POWER SUPPLY (2.8V）

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.

1

TP_VDD2.8

TP POWER SUPPLY (2.8V）

2

GND

Ground

3

SCL1.8

TP I2C clock (SCL) clock (SCLK)(1.8V)

4

SDA1.8

TP I2C data (SDA) data input (MOSI)(1.8V)

5

INT1.8

TP Interrupt PIN (1.8V)

6

RST1.8

TP Reset PIN (1.8V)
