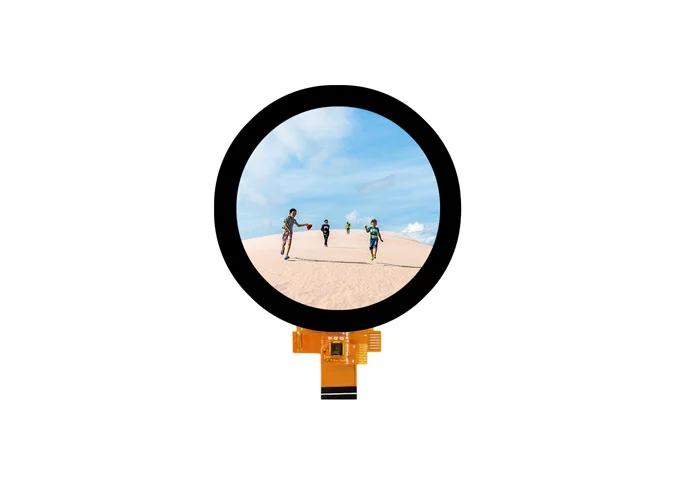

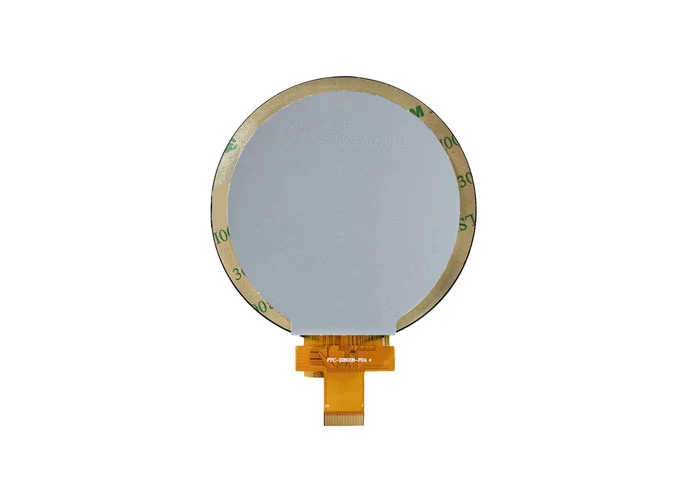

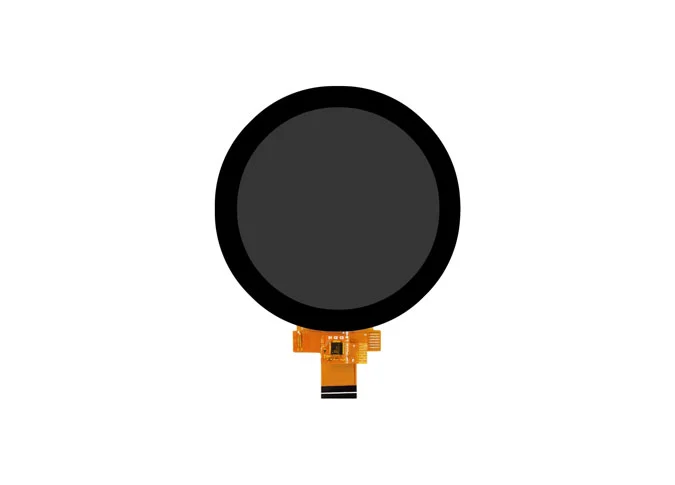

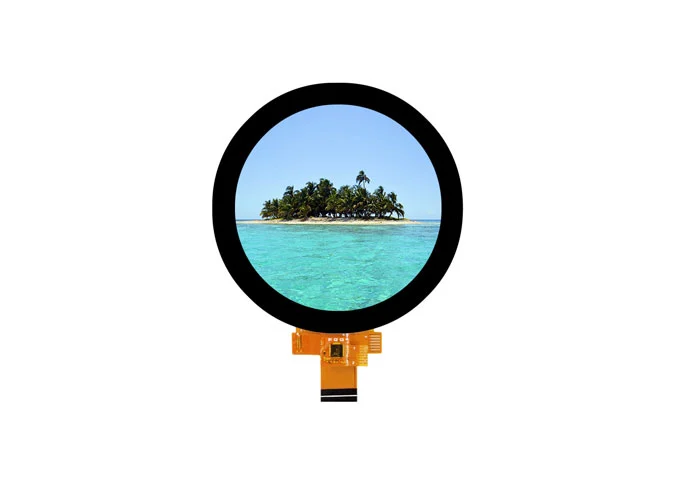

Z28008-ZC tela de toque circular de 2,76 2,8 polegadas com painel LCD IPS 480*480 MIPI IIC Interface

1

Display Size (Diagonal)

2.76

inch

2

Display Resolution

480(H） × RGB × 480（V）

pixels

3

Pixel Pitch

149.7(H）× 146.2（V）

um

4

LCM+Sensor Outline Dimension

(Without FPC）

73.03 (W) ×76.58 (H) ×2.74 (T)

mm

5

LCD Active Area

70.13（W） ×70.13（H）

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

ST7701S

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

Typ.: 4.6%

-

12

LCD Contrast Ratio

Typ.: 1200  Min:1000

-

13

FPC Version

Z28008-P24 V1

-

14

Interface

MIPI

-

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED/1 Series 4 Parallel (4 lights in total)

-

18

Luminance

Typ.:300

nit

19

Weight

TBD

kg

1

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

2-3

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

4

GND

Ground

5

VCI(3.3V)

POWER SUPPLY（3.3V）

6

IOVCC(3.3V)

I/O  POWER SUPPLY（3.3V）

7

RESET

LCM  RESET  PIN

8

GND

Ground

9

DP1

Positive MIPI differential data input

10

DN1

Negative MIPI differential data input

11

GND

Ground

12

CLKP

Positive MIPI differential CLOCK input

13

CLKN

Negative MIPI differential CLOCK input

14

GND

Ground

15

DP0

Positive MIPI differential data input

16

DN0

Negative MIPI differential data input

17

GND

Ground

18

TP_INT(3.3V)

TP  Interrupt  PIN(3.3V)

19

TP_SDA(3.3V)

TP  I2C data (SDA) data input (MOSI)(3.3V)

20

TP_SCL(3.3V)

TP  I2C clock (SCL) clock (SCLK)(3.3V)

21

TP_RESET(3.3V)

TP  Reset  PIN(3.3V)

22

TP_VCI(3.3V)

TP  POWER SUPPLY(3.3V)

23-24

GND

Ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
