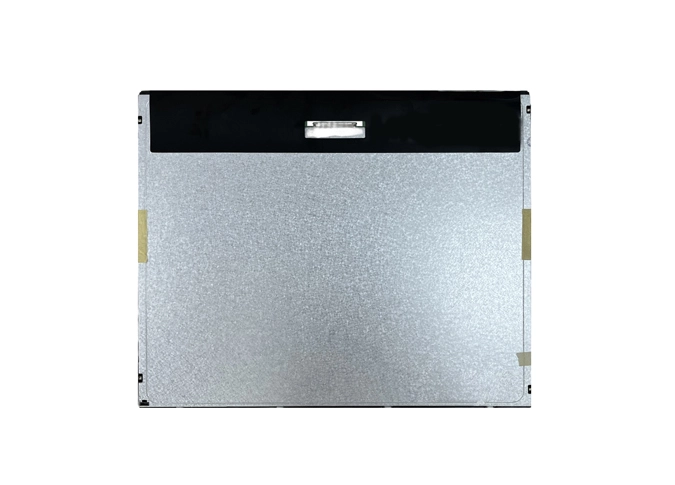

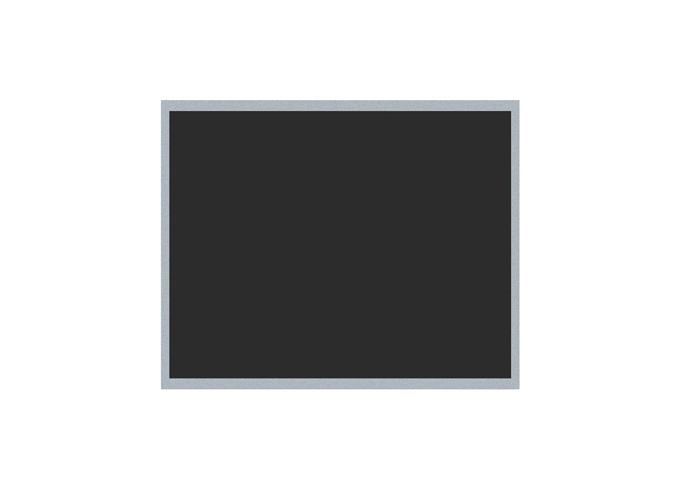

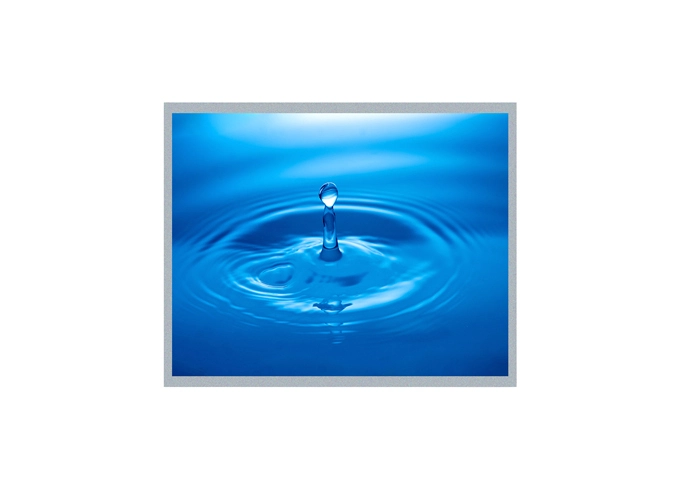

Z170001 Modo de exibição branco normal de 17 polegadas TFT LCD Sreen 1280x1024

Screen Dingonal

[mm]

432(17”)

Active Area

[mm]

337.92×270.34

Pixels H x V

-

1280 x 3(RGB)×1024

Pixels Pitch

[um]

0.264(per one triad) × 0.264

Pixels Arrangement

-

R.G.B. Vertical Stripe

Display Mode

-

Normally White

White Luminance(Center)

[cd/m²]

250（Typ.）

Contrast Ratio

-

1000 （Typ.）

Response Time

[msec]

5 (Typ.)(Tr/Td)

Viewing Angle

[degree]

85/85/80/80

Outline Dimension

[mm]

358.5(H) x 296.5(V) x 10.3(D) (Typ.)

Electrical Interface

-

Dual Channel LVDS

Support Color

16.7M colors

Surface Treatment

Anti ‐glare type, Hardness 3H

Temperature            Range

Operating

Storage(Shipping)

0 to +50℃

-20 to +60℃

1

RxOIN0-

Negative LDVS differential data input (Odd data)

2

RxOIN0+

Positive LDVS differential data input (Odd data)

3

RxOIN1-

Negative LDVS differential data input (Odd data)

4

RxOIN1+

Positive LDVS differential data input (Odd data)

5

RxOIN2-

Negative LDVS differential data input (Odd data)

6

RxOIN2-

Positive LDVS differential data input  (Odd data)

7

GND

Power Ground

8

RxOCLKIN-

Negative LDVS differential data input (Odd clock)

9

RxOCLKIN+

Positive LDVS differential data input (Odd clock)

10

RxOIN3-

Negative LDVS differential data input (Odd data)

11

RxOIN3+

Positive LDVS differential data input (Odd data)

12

RxEIN0-

Negative LDVS differential data input (Even data)

13

RxEIN0+

Positive LDVS differential data input (Even data)

14

GND

Power Ground

15

RxEIN1-

Negative LDVS differential data input (Even data)

16

RxEIN1+

Positive LDVS differential data input (Even data)

17

GND

Power Ground

18

RxEIN2-

Negative LDVS differential data input (Even data)

19

RxEIN2+

Positive LDVS differential data input (Even data)

20

RXECLKIN-

Negative LDVS differential data input (Even clock)

21

RXECLKIN+

Positive LDVS differential data input (Even clock)

22

RxEIN3-

Negative LDVS differential data input (Even data)

23

RxEIN3+

Positive LDVS differential data input (Even data)

24

GND

Power Ground

25

NC

No connection (for AUO test only.Do not)

26

NC

No connection (for AUO test only.Do not)

27

NC

No connection (for AUO test only.Do not)

28

VDD

Power Supply Input Voltage

29

VDD

Power Supply Input Voltage

30

VDD

Power Supply Input Voltage
