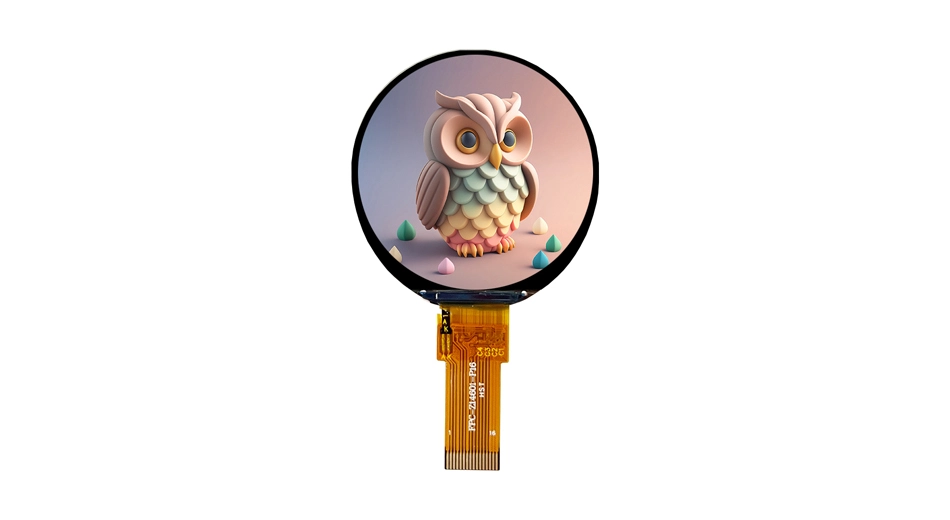

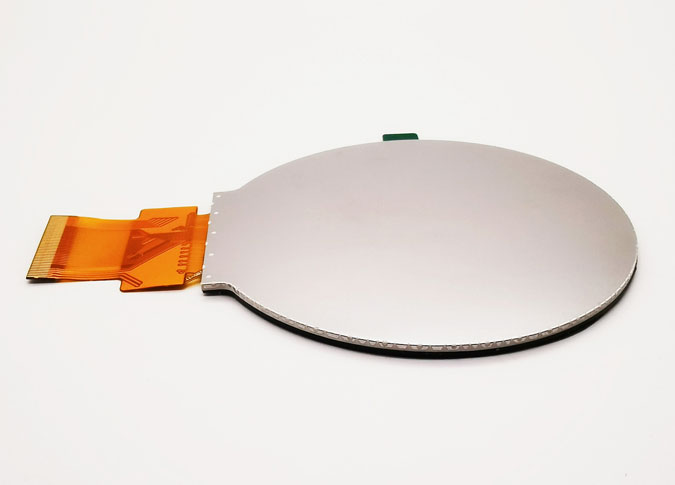

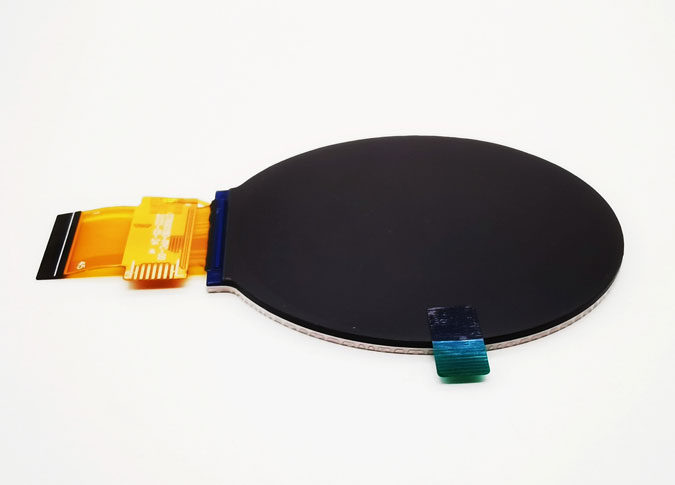

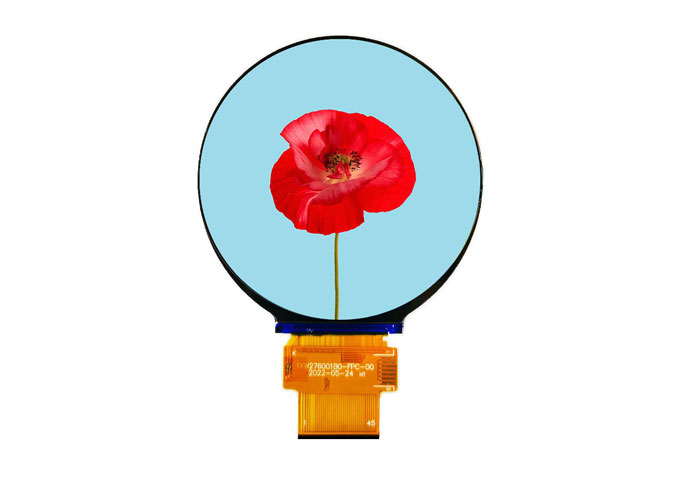

Z16001 LCD redondo de 1,6 polegadas 400*400 SPI Interface ST7797 Controlador

1

Display Size (Diagonal)

1.6

inch

2

Display Resolution

400 (H) × RGB × 400 (V）

pixels

3

Pixel Pitch

99.6 (H) × 99.6 (V)

um

4

LCM Outline Dimension

(Without FPC）

42.9 (W) × 45.89 (H) × 1.60 (T)

mm

5

LCD Active Area

39.84 (W) × 39.84 (H)

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

ST7797

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

/

-

12

LCD Contrast Ratio

/

-

13

FPC Version

Z16001-T V1

-

14

Interface

SPI

-

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED/1 Series 3 Parallel (3 lights in total)

-

18

Luminance

/

nit

19

Weight

/

kg

1

GND

Ground

2

VDDA

POWER SUPPLY

3-6

NC

No Connection

7

VPP

OTP Voltage

8

GND

Ground

9

RESET

LCM RESET PIN

10-11

GND

Ground

12

VDDIO

I/O POWER SUPPLY

13

CS

LCM SPI Chip Select PIN

14

SCKP

LCM SPI clock (SCL) clock (SCLK)

15

QSPI_SD0

LCM SPI SDA0

16

QSPI_SD1

LCM SPI SDA1

17

QSPI_SD2

LCM SPI SDA2

18

QSPI_SD3

LCM SPI SDA3

19

GND

Ground

20

TE

Tearing Effect PIN

21

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

22

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

23-24

GND

Ground

RESET voltage should be consistent with VDDIO voltage, or there probably is black screen fault when power on.
