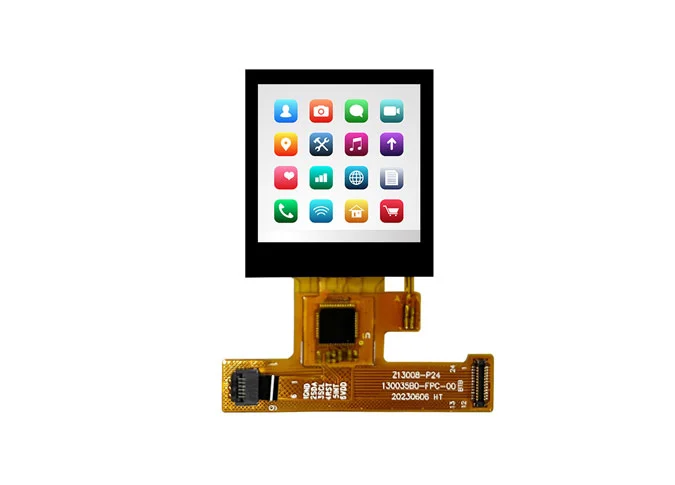

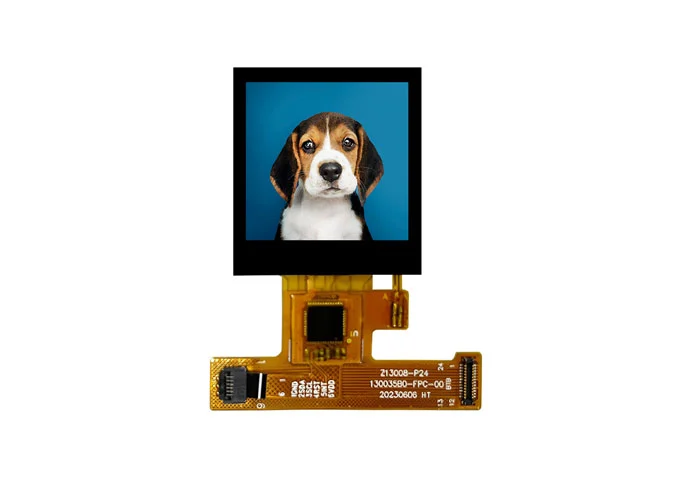

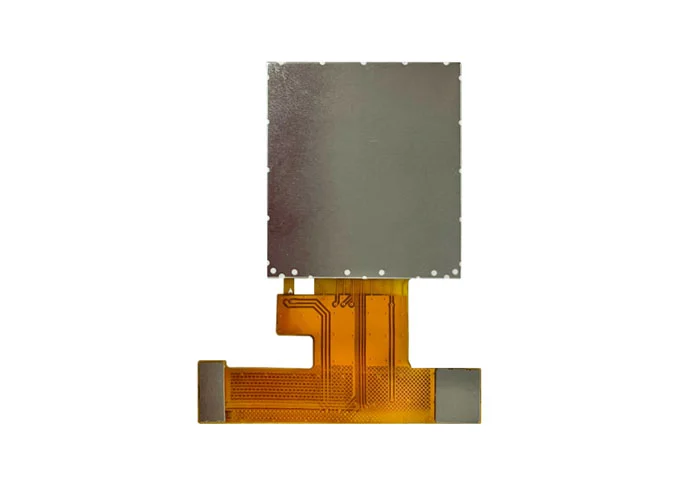

Z13008-ZC 240*240 Painel LCD TFT de 1,3 polegadas com tela de toque capacitivo SPI IIC Interface ST7789 Controlador

1

Display Size (Diagonal)

1.3

inch

2

Display Resolution

240(H) × RGB × 240  (V)

pixels

3

Pixel Pitch

97.5(H) × 97.5  (V)

um

4

T LCM Outline Dimension

(Without FPC)

26.2 (W) ×29.22 (H) ×2.44 (T)

mm

5

LCD Outline Dimension

25.8 (W) × 28.4 (H) × 0.4 (T)

mm

6

LCD Active Area

23.4  (W) ×23.4  (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7789T3

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.65%    Min:4. 18%

-

13

LCD Contrast Ratio

Typ.: 800    Min:640

-

14

FPC Version

Z13008-P24 V1

-

15

Interface

SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/ 1 Series 2 Parallel (2 lights in total)

-

19

Luminance

-

nit

20

Weight

0.003

g

1-6

GND

Ground

7

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE(-)

8

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE(+)

9

GND

Ground

10

D/C

LCM    Display data/command selection pin in parallel interface

11

SCL

LCM    SPI clock (SCL) clock (SCLK)

12

RESET

LCM    SPI    Chip Select    PIN

13

GND

Ground

14

SDA

LCM    SPI data (SDA) data input (MOSI)

15

CS

LCM    RESET    PIN

16

GND

POWER SUPPLY  (2.8V/3.3V)

17

VDD

POWER SUPPLY  (2.8V/3.3V)

18

TP-RESET

TP    RESET    PIN(3.3V)

19

TP-VDD

POWER SUPPLY  (3.3V)

20

TP-INT

TP    Interrupt    PIN(3.3V)

21

TP-SDA

TP    I2C data (SDA) data input (MOSI)(3.3V)

22

TP-SCL

TP    I2C clock (SCL) clock (SCLK)(3.3V)

23

GND

Ground

24

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
