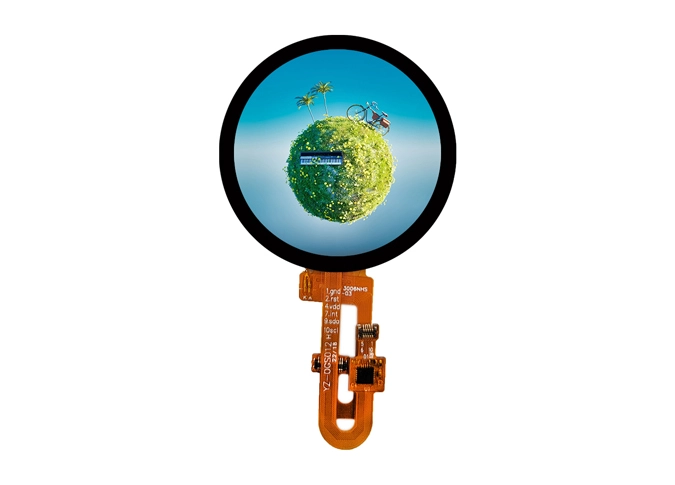

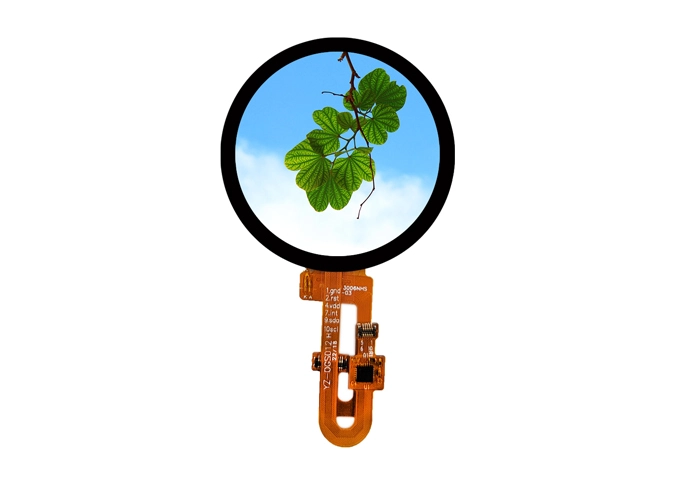

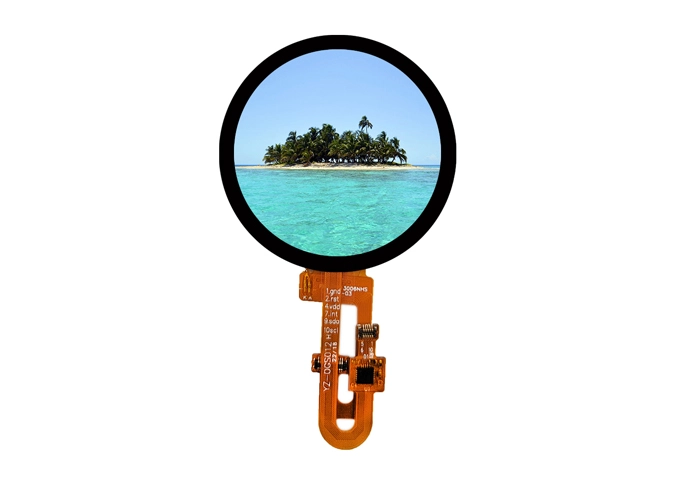

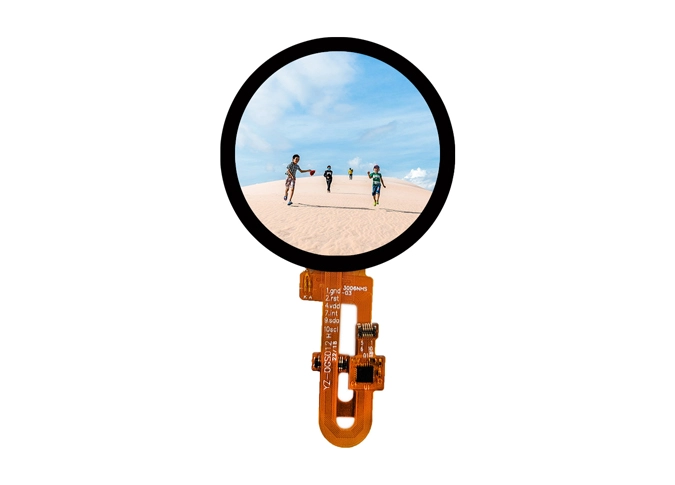

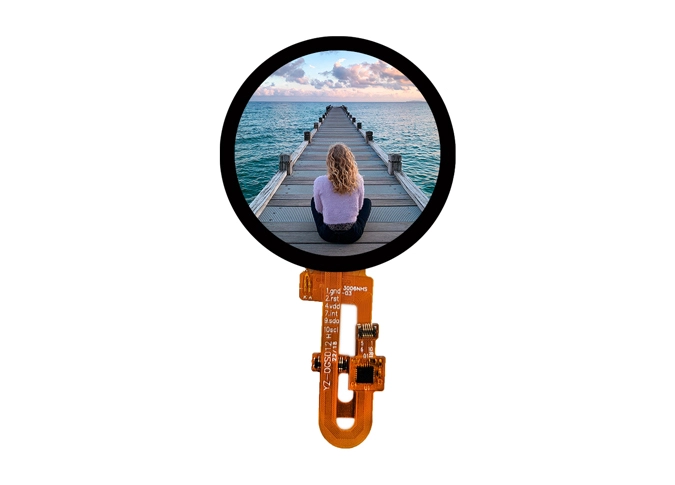

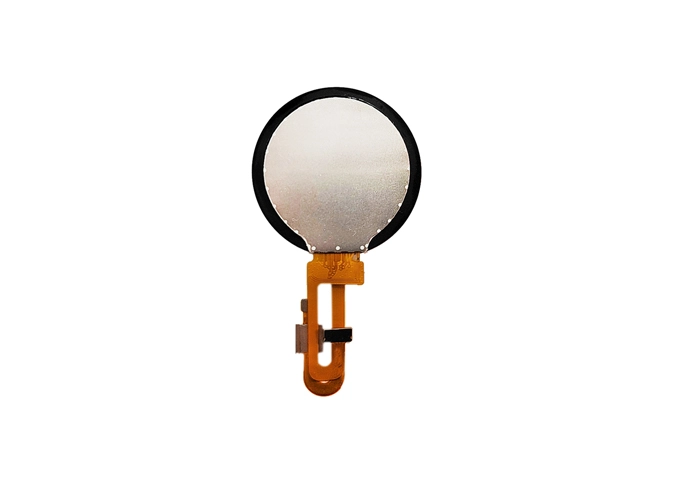

Tela de toque TFT de 1,3 polegadas Z13006-ZC 240*240 LCD com tela 24PIN SPI Interface CST816D Controlador

1

Display Size (Diagonal)

1.3

inch

2

Display Resolution

240(H) × RGB × 240  (V)

pixels

3

Pixel Pitch

-

um

4

LCM Outline Dimension

(Without FPC)

35.6 (W) ×38. 1 (H) ×1.6 (T)

mm

5

LCD Outline Dimension

/

mm

6

LCD Active Area

32.4  (W) ×32.4  (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

GC9A01

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.65%    Min:4. 18%

-

13

LCD Contrast Ratio

Typ.: 800    Min:640

-

14

FPC Version

-

-

15

Interface

4LINE-SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/2Series (2 lights in total)

-

19

Luminance

350

nit

20

Weight

0.003

g

1~2

VLEDK

Power for LED back light   cathode

3~4

VLEDA

5

GND

Power ground

6

FMARK

Power Supply Fordigital circuit

7

GND

Power ground

8

RD

Read enable in 8080 MCU parallel interface

9

WR

Write enable in MCU parallel interface

10

RS

Display data/command selection pin

11

CS

Chip selection pin

12

GND

Power ground

13

RESET

This signal will reset the device and it must be applied to properly

14

IOVCC

Power supply for digitial circuit

15

VCC

Power supply for digitial circuit

16~23

DB0~DB7

Parallel interface Data Input

24

GND

Power ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
