Z13005 Alto Brilho 700 lêndeas 360*360 1.3 polegadas TFT Display SPI Interface JD5858A Controlador

  • Resolução: 360*360

  • Interface:SPI

  • Ângulo de visão: Toda a direção

  • Brilho: 700 lêndeas

  • Painel de toque: Suporte CTP/RTP

  • Tipo de Fornecimento: Fábrica/Fabricante

  • Certificação: ISO9001,IATF16949,ROHS,REACH

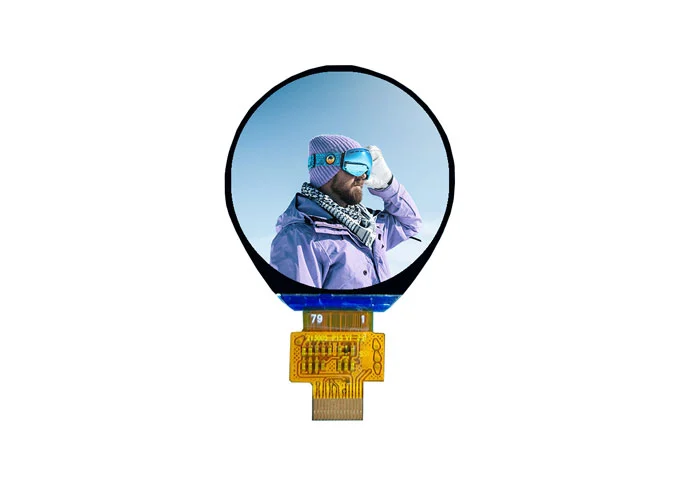

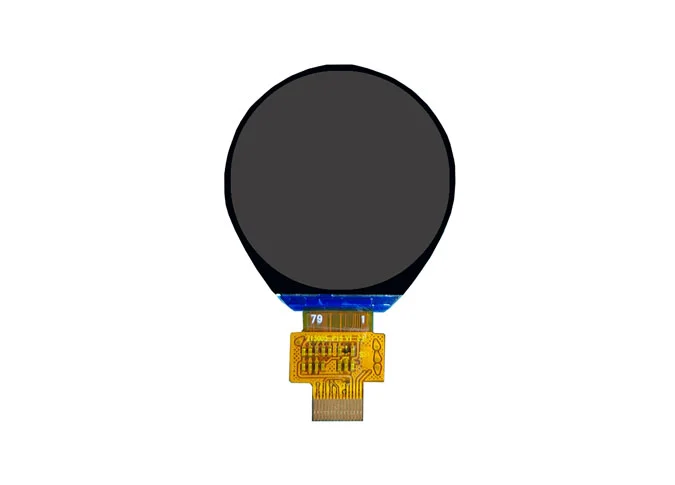

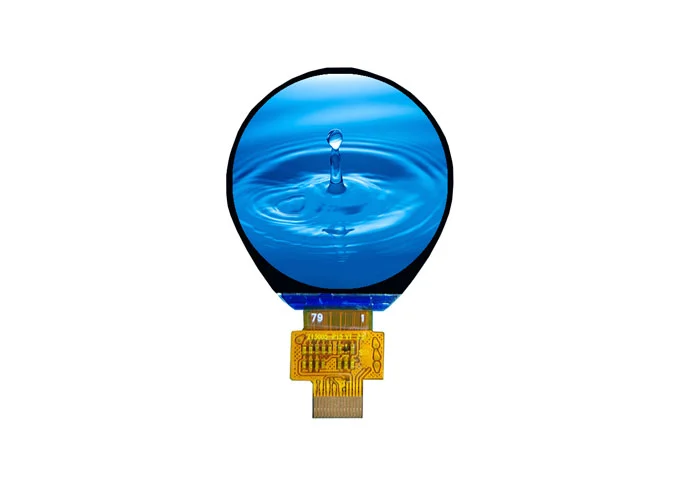

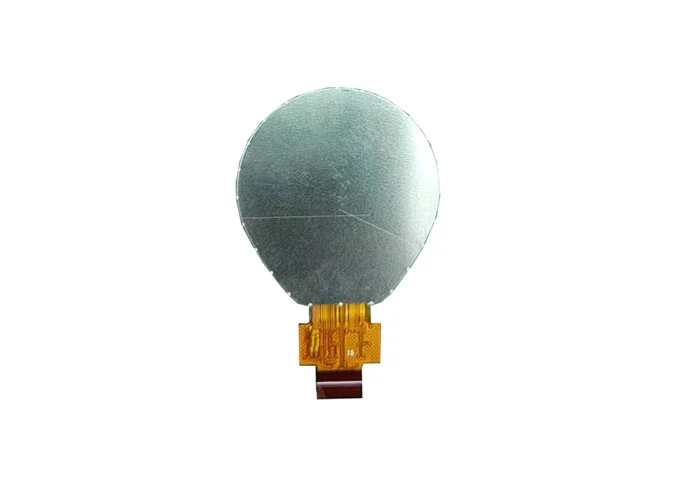

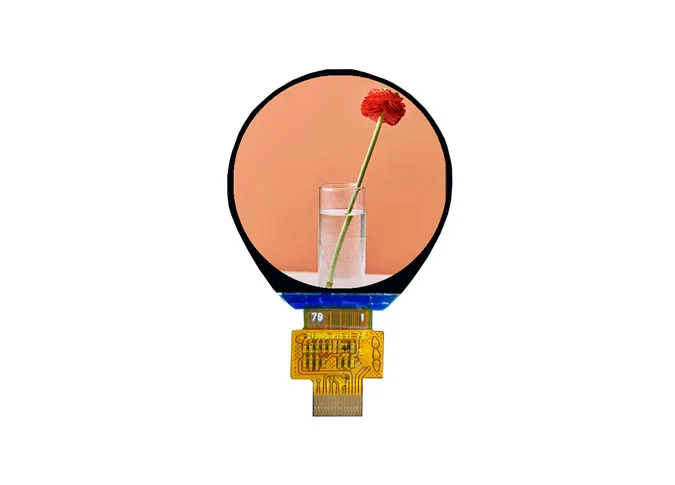

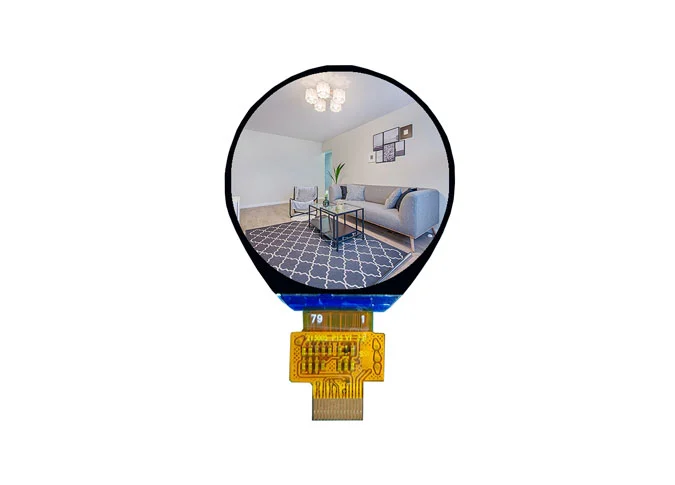

z13005 2
z13005 2
z13005 3
z13005 1
z13005 4
z13005 6
z13005 5

Visão geral do Z13005 Alto Brilho 700 lêndeas 360*360 1.3 polegadas TFT Display SPI Interface JD5858A Controlador

1

Z13005 é um transistor de filme fino de matriz de cor ativa (TFT) display de cristal líquido (LCD) com resolução 360*360. A técnica IPS (Comutação no plano) faz com que este módulo LCD de 1,3 "tenha um ângulo de visão mais amplo.Display LCD portátilÉ built-in JD5858A driver IC. Este a-Si TFT LCD vem com interface SPI. Alto brilho.

2

Se você tem requisitos especiais, como unidade IC, interface, FPC, painel de toque, brilho, cor, luz de fundo, painel de toque, etc, nossoFábrica de painel LCD redondoTambém pode personalizar para você.

3

Como profissionalFabricante de LCD redondo, Realizamos o sistema padrão de qualidade ISO 9001: 2015 e IATF16949: 2016 estritamente, todo o display LCD passou ROHS, certificação REACH.

4

Bem como o nosso popularTela LCD de 4,5 polegadas, O módulo LCD pequeno de 1,3 "é amplamente utilizado em relógio inteligente, painel de controle de casa inteligente, dispositivo protable, instrumento médico, equipamento industrial, banco de energia, pulseira inteligente, colar digital ect

General Specifications of Z13005 High Brightness 700nits 360*360 1.3 inch TFT Display SPI Interface JD5858A Controller


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.3

inch

2

Display Resolution

360(H) × RGB × 360(V)

pixels

3

Pixel Pitch

30.5(H)× 91.5(V)

um

4

LCM Outline Dimension

(Without FPC)

35.24 (W) ×37.67 (H) ×2.15 (T)

mm

5

LCD Outline Dimension

34.94 (W) × 37.37 (H) × 0.4 (T)

mm

6

LCD Active Area

32.94(W) ×32.94(H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD5858A-GN

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.41%  Min:3.86%

-

13

LCD Contrast Ratio

Typ.: 1500  Min:1200

-

14

FPC Version

Z13005-P15 V1

-

15

Interface

SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 2 Parallel (2 lights in total)

-

19

Luminance

Typ.:700

nit

20

Weight

0.003

kg


Interface Definition Description of Z13005 High Brightness 700nits 360*360 1.3 inch TFT Display SPI Interface JD5858A Controller


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

GND

Ground

4

VCC

POWER SUPPLY

5

IOVCC

I/O  POWER SUPPLY

6

CS

LCM  SPI  Chip Select  PIN

7

GND

Ground

8

SDA

LCM  SPI data (SDA) data input (MOSI)

9

GND

Ground

10

SCK

LCM  SPI clock (SCL) clock (SCLK)

11

GND

Ground

12

RESET

LCM  RESET  PIN

13

GND

Ground

14

DC

LCM  Data/Command Control  PIN

15

GND

Ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
