Tamanho: 12,3 polegadas
Resolução: 1920*720
Área ativa: 292.032*109.512mm
Interface: LVDS
Ângulo de visão: IPS
Brilho: 1000 cd/m²
Painel de toque: Suporte CTP/RTP
Tipo de Fornecimento: Fábrica/Fabricante
Certificação: ISO9001, IATF16949, ROHS, REACH

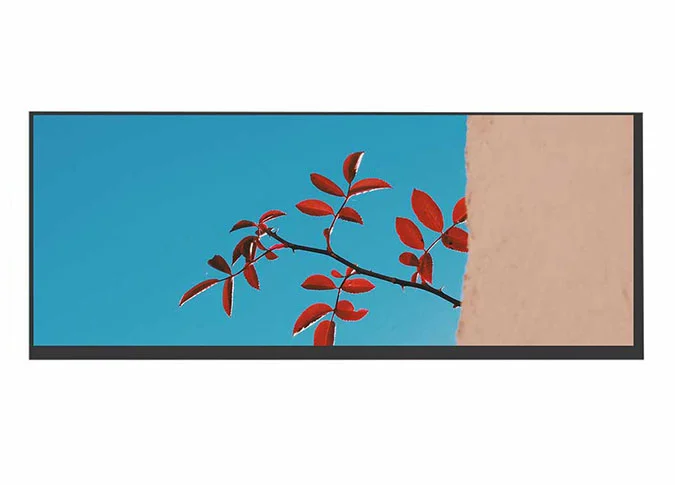

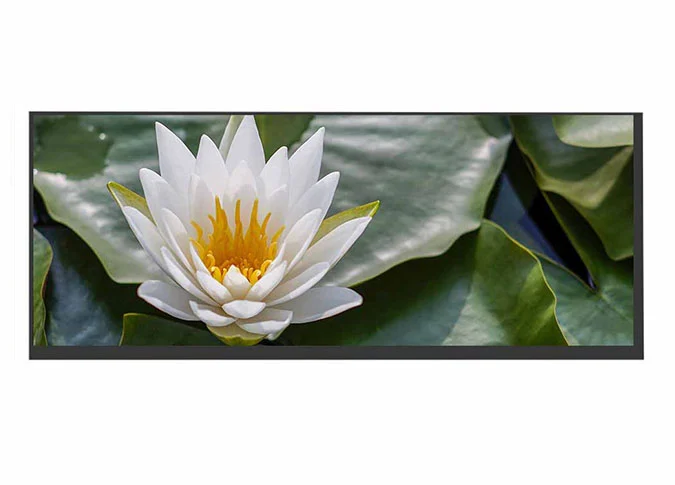

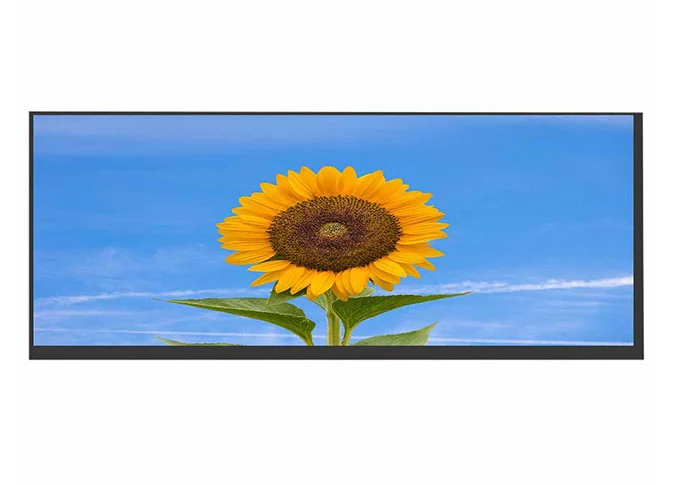

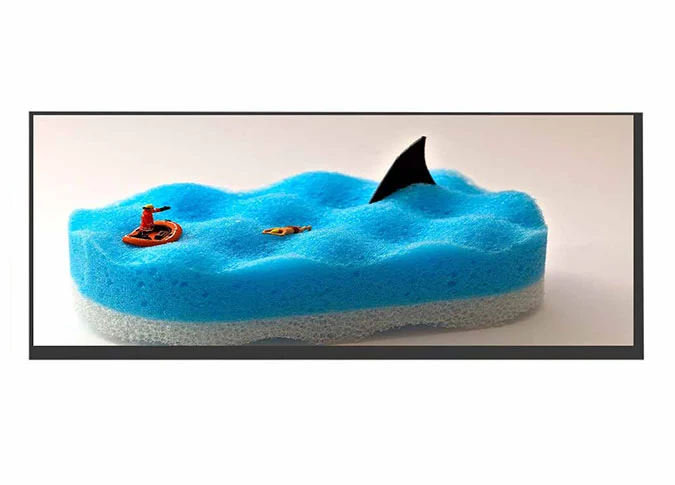

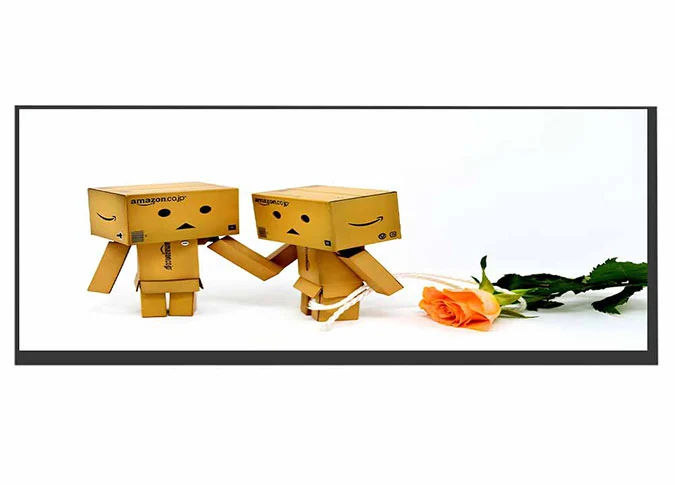

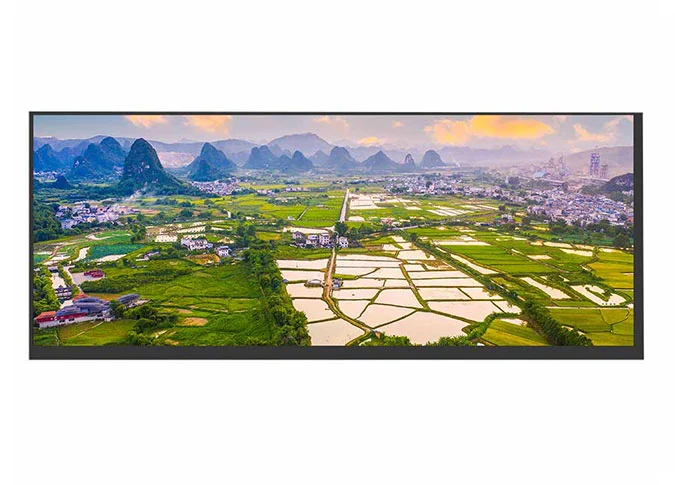

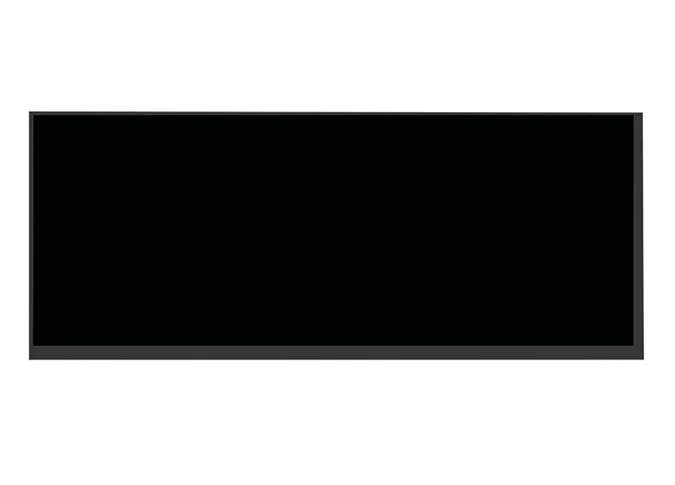

Z123003 é uma tela de cristal líquido (LCD) de transistor de película fina de matriz ativa colorida (TFT) com resolução de 1920*720. A técnica IPS (In-plane Switching) faz com que este módulo LCD de 12,3 "tenha um ângulo de visão mais amplo. Este módulo a-Si TFT LCD vem com interface LVDS, brilho 1000cd/m².
Se você tem requisitos especiais, como unidade IC, interface, FPC, painel de toque, brilho, cor, luz de fundo, painel de toque, etc, como umFabricante de display LCD personalizado China, Nós também podemos personalizar para você.
Como umChina display LCD fornecedor, Nossa fábrica realiza o sistema padrão de qualidade ISO 9001: 2015 e IATF16949: 2016 estritamente, todo o display LCD passou ROHS, certificação REACH.
A tela LCD de 12,3 polegadas de alto brilho é amplamente utilizada em médicos, cozinha, eletrodomésticos, casa inteligente, indústria, portátil, ao ar livre, E-bike, veículo, projetor, navegação, painel de instrumentos, publicidade do elevador, máquina de café, etc.
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 12.3 | inch |
2 | Display Resolution | 1920 (H) × RGB × 720 (V） | pixels |
3 | Pixel Pitch | 152.1(H)× 152.1 (V） | um |

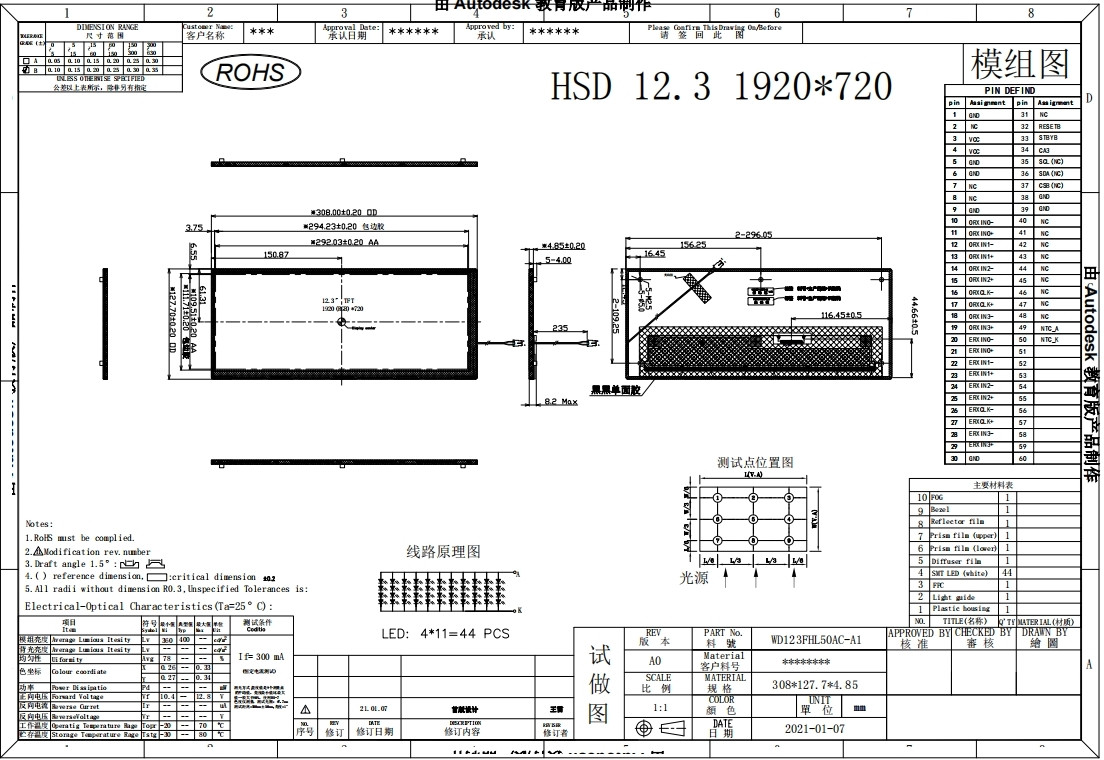

4 | LCM Outline Dimension (Without FPC） | 321.6 (W) ×138.8 (H) ×6.15 (T) | mm |
5 | LCD Active Area | 292.032 (W) ×109.512 (H） | mm |
6 | View Direction (Gray Inversion) | FULL VIEW | - |
7 | Driver IC | / | - |
8 | Pixel Arrangement | RGB-Stripe | - |
9 | Display Mode | Normal Black | - |
10 | Pixel Driving Element | a-Si TFT | - |
11 | LCD Transmittance | Typ.: TBD | - |
12 | LCD Contrast Ratio | Typ.: 1100; Min:900 | - |
13 | FPC Version | Z123003-P50 V1 | - |
14 | Interface | LVDS | - |
15 | Operating Temperature | -20°C~ 70°C | - |
16 | Storage Temperature | -30°C~ 80°C | - |
17 | Backlight Arrangement | LED/4 Series 11 Parallel (44 lights in total) | - |
18 | Luminance | Typ.: 400 | nit |
19 | Weight | 0.515 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | GND | Ground |
2 | NC | No connect |
3-4 | VCC | Panel Power |
5-6 | GND | Ground |
7-8 | NC | No connect |
9 | GND | Ground |
10 | O_IN0- | Odd pixel negative LVDS differential clock input |
11 | O_N0+ | Odd pixel positive LVDS differential clock input |
12 | O_IN1- | Odd pixel negative LVDS differential clock input |
13 | O_N1+ | Odd pixel positive LVDS differential clock input |
14 | O_IN2- | Odd pixel negative LVDS differential clock input |
15 | O_N2+ | Odd pixel positive LVDS differential clock input |
16 | O_CK- | Odd pixel negative LVDS differential clock input |
17 | O_CK+ | Odd pixel positive LVDS differential clock input |
18 | O_IN3- | Odd pixel negative LVDS differential clock input |
19 | O_N3+ | Odd pixel positive LVDS differential clock input |
20 | E_IN0- | Even pixel negative LVDS differential clock input |
21 | E_N0+ | Even pixel positive LVDS differential clock input |
22 | E_IN1- | Even pixel negative LVDS differential clock input |
23 | E_N1+ | Even pixel positive LVDS differential clock input |
24 | E_IN2- | Even pixel negative LVDS differential clock input |
25 | E_N2+ | Even pixel positive LVDS differential clock input |
26 | E_CK- | Even pixel negative LVDS differential clock input |
27 | E_CK+ | Even pixel positive LVDS differential clock input |
28 | E_IN3- | Even pixel negative LVDS differential clock input |
29 | E_N3+ | Even pixel positive LVDS differential clock input |
30 | GND | Ground |
31 | NC | No connect |
32 | RESET | Global reset pin, active low. |
33 | STBYB | Standby mode, active low. |
34 | CA3 | Output signal to indicate self protection mode, when DE, HS, VS, DCLK, any of these signals is missing, it will become High. If using this pin, CA3 need to pulled low by an resistor, else, let it floating. |
35 | SCL | Serial interface clock input. (User folating) |
36 | SDA | Serial interface data input/output. (User folating) |
37 | CSB | Serial interface chip enable. (User folating) |
38-39 | GND | Ground |
40 | NC | No connect |
41-43 | LEDA | BL Anode |
44 | NC | No connect |
45-48 | LEDK | BL Cathode |
49 | NTC_A | NTC_Anode |
50 | NTC_K | NTC_Cathode |
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on. | ||
