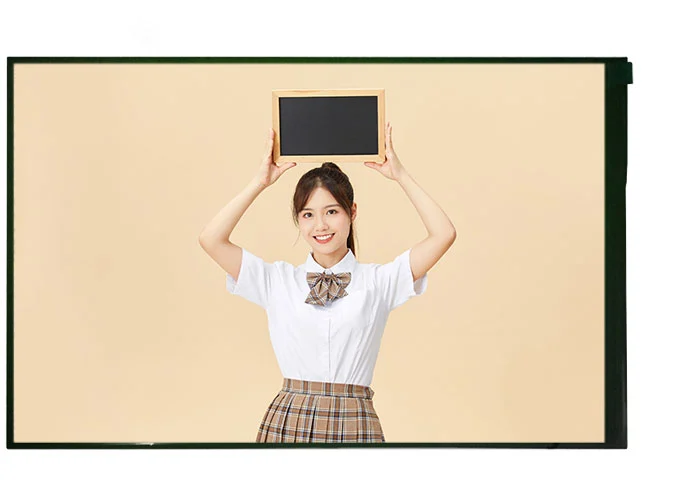

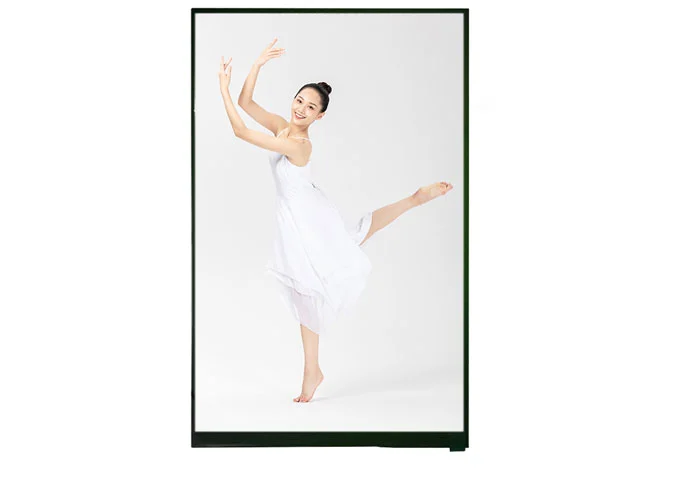

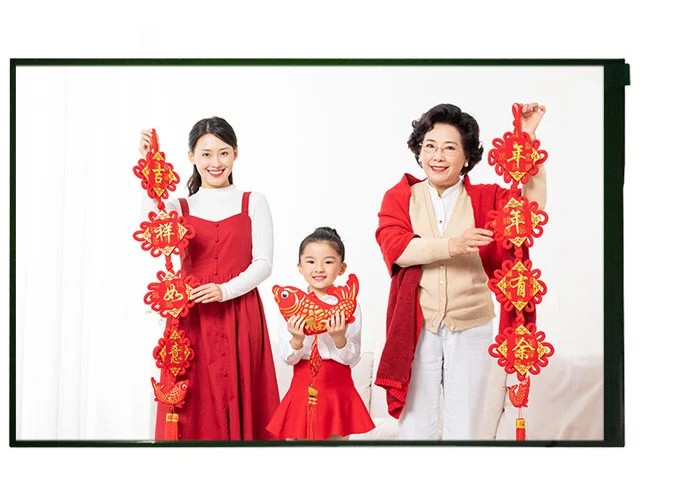

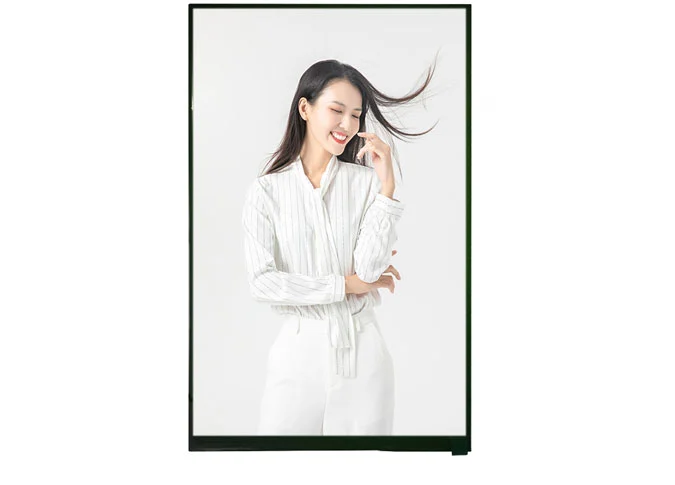

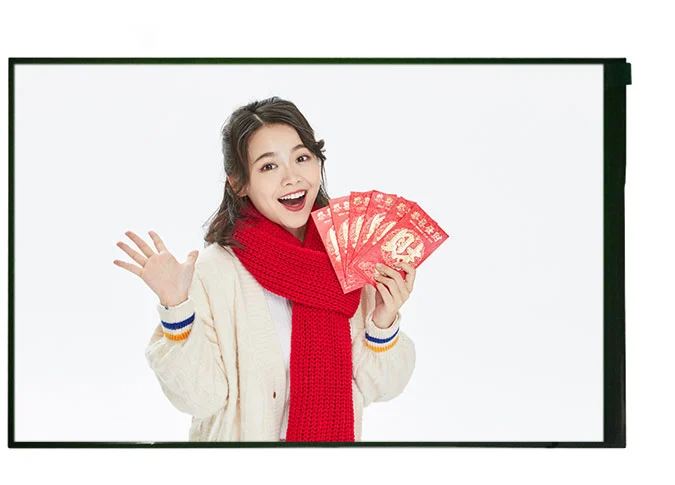

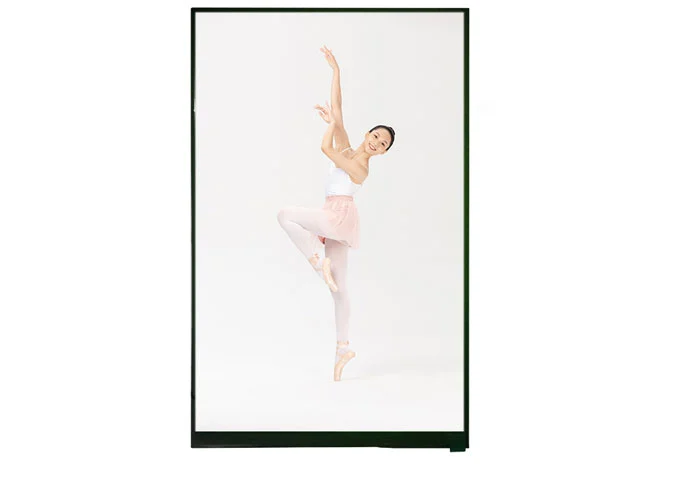

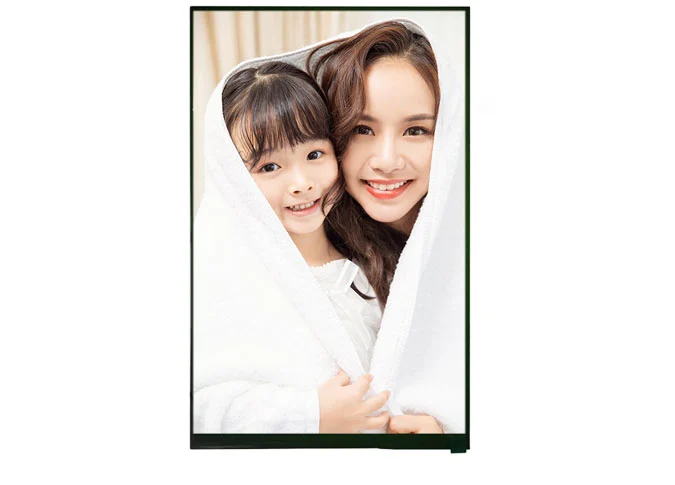

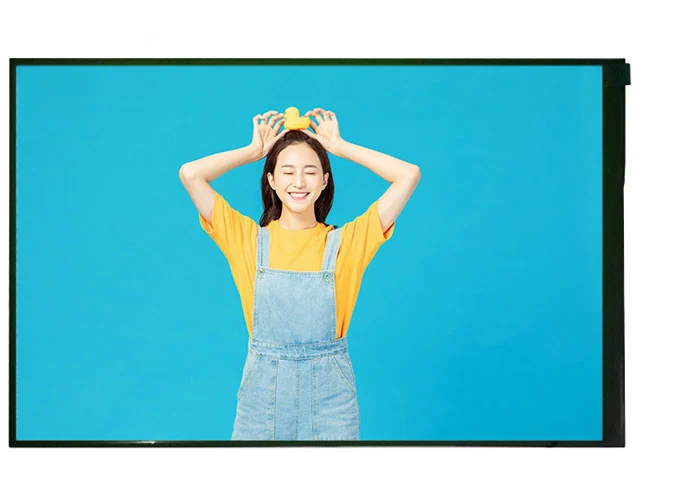

Z116001 Tipo de Barra de 11,6 Polegadas 1920*1080 IPS LCD Interface LVDS TFT

1

Display Size (Diagonal)

11.6

inch

2

Display Resolution

1920 (H) × RGB × 1080 (V）

pixels

3

Pixel Pitch

0.1335 (H)× 0.1335 (V）

um

4

LCM Outline Dimension

(Without FPC）

263.6 (W) ×157.42 (H) ×3.1 (T)

mm

5

LCD Outline Dimension

-

mm

6

LCD Active Area

256.32 (W) ×144.18 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

-

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

-

-

13

LCD Contrast Ratio

Typ8 00

-

14

FPC Version

Z116001-P30 V1

-

15

Interface

2lane EDP

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

9 series 5 parallel

-

19

Luminance

400

nit

20

Weight

-

kg

1

CABC-EN

CABC-EN

16

GND

Power Ground

2

GND

Power Ground

17

HPD

Hot plug detect output

3

LANE1-N

eDP RX Channel 1 negative

18

BL-GND

Power Ground

4

LANE1-P

eDP RX Channel 1 Positive

19

BL-GND

Power Ground

5

GND

Power Ground

20

BL-GND

Power Ground

6

LANE0-N

eDP RX Channel 0 negative

21

BL-GND

Power Ground

7

LANE0-P

eDP RX Channel 0 Positive

22

BL-ENABLE

BL-ENABLE

8

GND

Power Ground

23

BL-PWM

Reset low active

9

AU-PH-P

eDP AUX CH positive

24

MSCL

FOR DEBUG

10

AU-PH-N

eDP AUX CH negative

25

MSDA

FOR DEBUG

11

GND

Power Ground

26

BL-POWER

BL-POWER

12

LDC-VCC

3.3V

27

BL-POWER

BL-POWER

13

LDC-VCC

3.3V

28

BL-POWER

BL-POWER

14

LCD-TEST

Panel self test enable

29

BL-POWER

BL-POWER

15

GND

Power Ground

30

NC

NC
