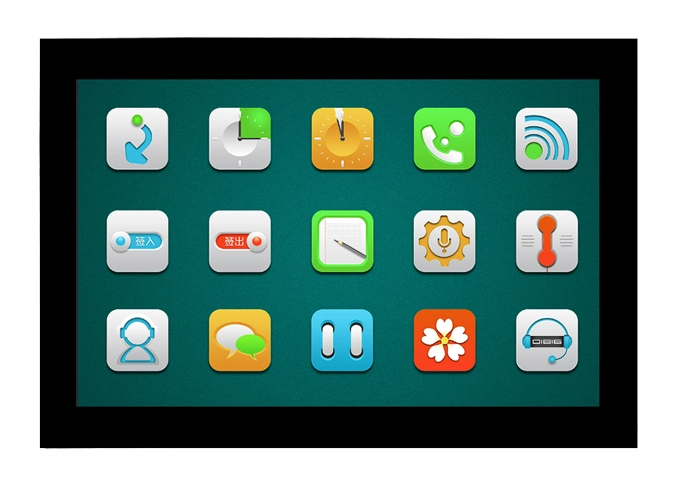

Painel LCD de interface IIC de 1280*800 LVDS, tela de toque de 10,1 polegadas Z101033-ZC paisagem

1

Display Size (Diagonal)

10.1

inch

2

Display Resolution

1280(H） × RGB × 800（V）

pixels

3

Pixel Pitch

56.5(H）× 169.5（V）

um

4

LCM Outline Dimension

(Without FPC）

229.45 (W) ×149.22 (H) ×2.62 (T)

mm

5

LCD Active Area

216.96（W） ×135.6（H）

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Pixel Arrangement

RGB-Stripe

-

8

Display Mode

Normal Black

-

9

Pixel driving Element

a-Si TFT

-

10

LCD Transmittance

Typ.: TBD

-

11

LCD Contrast Ratio

Typ.: 1000

-

12

FPC Version

Z101080-P40 V1

-

13

Interface

LVDS

-

14

Operating Temperature

0°C~ 50°C

-

15

Storage Temperature

-20°C~ 60°C

-

16

Backlight Arrangement

LED/3 Series 13 Parallel (39 lights in total)

-

17

Luminance

Typ.:320

nit

18

Weight

TBD

kg

1

NC

Non Connection

2-4

VDDIN

Power supply VDDIN=3.3V (Typ.)

5

NC

Non Connection

6-7

GND

GROUND

8

RIN0-

LVDS Negative data signal (-)

9

RIN0+

LVDS Positive data signal (+)

10

GND

GROUND

11

RIN1-

LVDS Negative data signal (-)

12

RIN1+

LVDS Positive data signal (+)

13

GND

GROUND

14

RIN2-

LVDS Negative data signal (-)

15

RIN2+

LVDS Positive data signal (+)

16

GND

GROUND

17

LVDS_CLK-

LVDS Negative CLK signal (-)

18

LVDS_CLK+

LVDS Positive CLK signal (+)

19

GND

GROUND

20

RIN3-

LVDS Negative data signal (-)

21

RIN3+

LVDS Positive data signal (+)

22

GND

GROUND

23-24

NC

Non Connection

25

GND

GROUND

26-27

NC

Non Connection

28

GND

GROUND

29-30

NC

Non Connection

31-33

LEDK

LED Cathode

34-37

NC

Non Connection

38-40

LEDA

LED Anode

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
