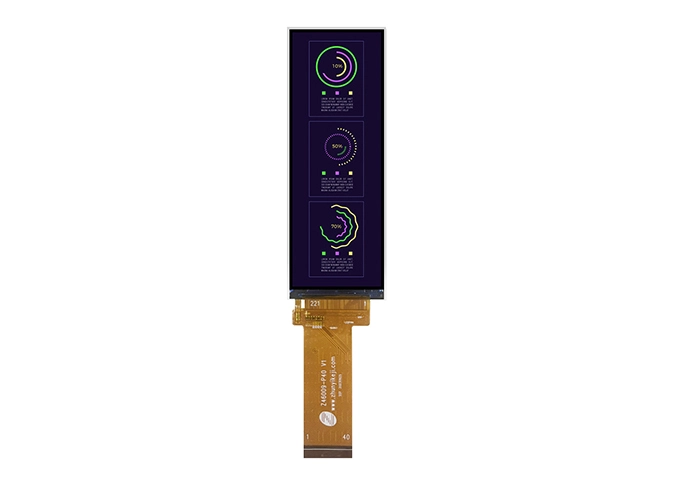

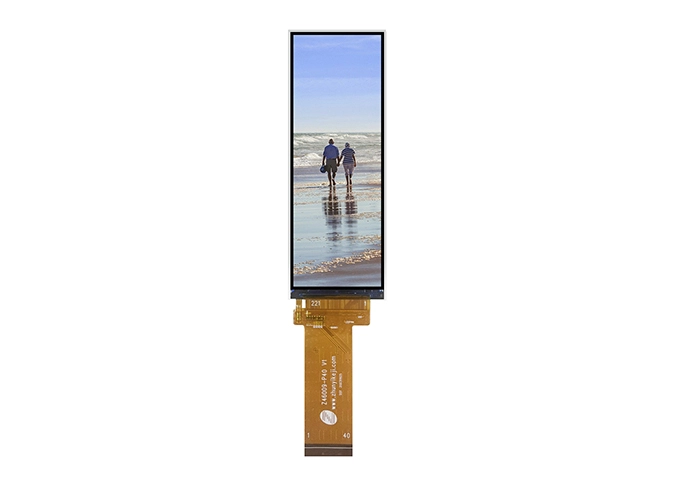

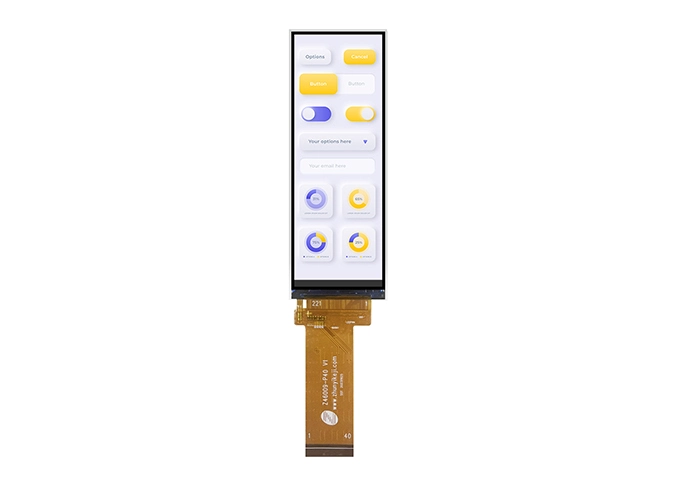

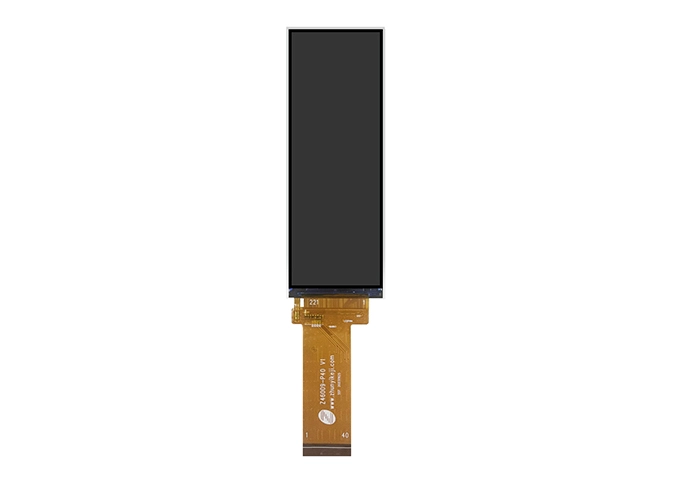

Z46009 4.6 polegadas 320x960 Barra esticada Painel LCD Interface MIPI ST7701 Controlador

1

Display Size (Diagonal)

4.58

inch

2

Display Resolution

320(H） × RGB × 960（V）

pixels

3

Pixel Pitch

114.9(H）× 114.9（V）

um

4

LCM Outline Dimension

(Without FPC）

41.568 (W) ×118.804 (H) ×2.5 (T)

mm

5

LCD Outline Dimension

39.168(W) × 116.504 (H) × 0.8 (T)

mm

6

LCD Active Area

36.768（W） ×110.304（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701SN

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Min:5.75%

-

13

LCD Contrast Ratio

Typ.: 1200  Min:1000

-

14

FPC Version

Z46009-P40 V1

-

15

Interface

MIPI

-

16

Operating Temperature

-30°C~ 80°C

-

17

Storage Temperature

-20°C~ 70°C

-

18

Backlight Arrangement

LED/4 Series 2 Parallel (8 lights in total)

-

19

Luminance

Typ.:450

nit

20

Weight

TBD

kg

1

GND

Ground

2

TDP0

Positive MIPI differential data input

3

TDN0

Negative MIPI differential data input

4

GND

Ground

5

TDP1

Positive MIPI differential data input

6

TDN1

Negative MIPI differential data input

7

GND

Ground

8

TCP

Positive MIPI differential CLOCK input

9

TCN

Negative MIPI differential CLOCK input

10

GND

Ground

11-12

NC

No Connection

13

GND

Ground

14-15

NC

No Connection

16-17

GND

Ground

18-19

1.8V

I/O  POWER SUPPLY（1.8V）

20

ID1

LCM  ID  PIN

21

ID2

LCM  ID  PIN

22-23

NC

No Connection

24

RESET

LCM  RESET  PIN(1.8V)

25-26

NC

No Connection

27

GND

Ground

28-29

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

30

GND

Ground

31

NC

No Connection

32-33

GND

Ground

34

NC

No Connection

35-36

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

37

GND

Ground

38-39

VCC_3.3V

POWER SUPPLY（3.3V）

40

NC

No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
